首頁歐美晶振 Abracon晶振ABL-7.3728MHZ-B2 7.3728MHz 50PPM 18PF 49S

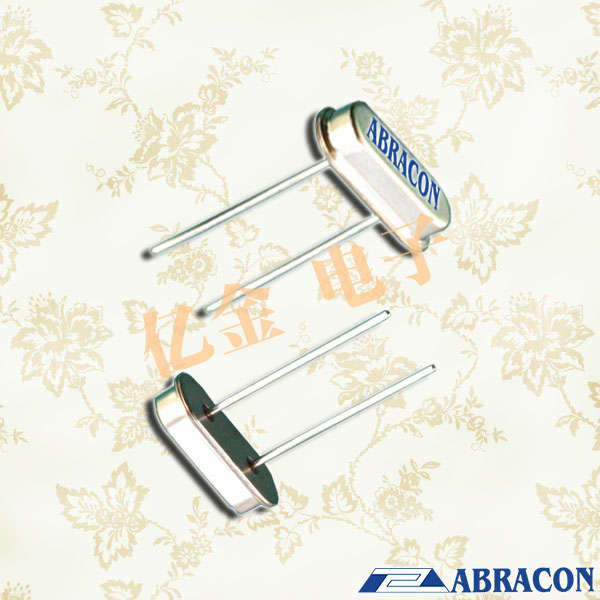

ABL-7.3728MHZ-B2 7.3728MHz 50PPM 18PF 49S

頻率：7.3728MHz
尺寸：11.50mm x 5.00mm
應　用： ABL-7.3728MHZ-B27.3728MHz50PPM18PF49S，歐美艾伯康晶振公司,高可靠性，低成本，緊密穩定性和延長溫度證明電阻焊接金屬包,家用電子計算機，調制解調器，和通信高精度TCXO和時鐘應用微處理器ABL-7.3728MHZ-B27.3728MH...

ABL-7.3728MHZ-B2 7.3728MHz 50PPM 18PF 49S，歐美艾伯康晶振公司,高可靠性，低成本，緊密穩定性和延長溫度證明電阻焊接金屬包,家用電子計算機，調制解調器，和通信高精度TCXO和時鐘應用微處理器

ABL-7.3728MHZ-B2 7.3728MHz 50PPM 18PF 49S

參數

最小值

典型的

最大值

單位

備注

頻率

3.579545

MHz

工作模式

3.579545

24.0

Fundamental AT-
cut (Standard)

24.01

70.00

3rd OT AT-cut
(Standard)

24.01

50.00

Fundamental AT-
cut or BT-cut (See
options)

工作溫度

+70

ºC

See options

儲存溫度

--55

+ 125

ºC

頻率公差

--50

+50

ppm

See options

工作溫度下的頻率穩定性 ( ref. to +25°C)

--50

+50

ppm

See options

等效串聯電阻(R1)

See table 1 below

并聯電容 (C0)

負載電容 (CL)

See options

驅動電平

100

1000

µW

老化 @ 25°C per year

±5

ppm

絕緣電阻

500

@ 100Vdc ± 15V

驅動器級別依賴性（DLD，至少測試7點：從1µW到500µW）

± 10

ppm

Δfrequency (Max –
Min)

25% of Max
ESR

ΔESR (Max – Min)

Max ESR in
Table 1

Max ESR over DLD
range

ABL-7.3728MHZ-B2 7.3728MHz 50PPM 18PF 49S

ABL

ABRACON編號	制造商	型號	頻率	負載電容
ABL-8.000MHZ-B2	Abracon LLC	ABL	8 MHz	18pF
ABL-16.000MHZ-B2	Abracon LLC	ABL	16 MHz	18pF
ABL-4.000MHZ-B2	Abracon LLC	ABL	4 MHz	18pF
ABL-12.000MHZ-B2	Abracon LLC	ABL	12 MHz	18pF
ABL-20.000MHZ-B2	Abracon LLC	ABL	20 MHz	18pF
ABL-12.288MHZ-B2	Abracon LLC	ABL	12.288 MHz	18pF
ABL-3.579545MHZ-B2	Abracon LLC	ABL	3.579545 MHz	18pF
ABL-11.0592MHZ-B2	Abracon LLC	ABL	11.0592 MHz	18pF
ABL-6.000MHZ-B2	Abracon LLC	ABL	6 MHz	18pF
ABL-7.3728MHZ-B2	Abracon LLC	ABL	7.3728 MHz	18pF
ABL-24.000MHZ-B2	Abracon LLC	ABL	24 MHz	18pF
ABL-10.000MHZ-B2	Abracon LLC	ABL	10 MHz	18pF
ABL-4.9152MHZ-B2	Abracon LLC	ABL	4.9152 MHz	18pF
ABL-3.6864MHZ-B2	Abracon LLC	ABL	3.6864 MHz	18pF
ABL-9.8304MHZ-B2	Abracon LLC	ABL	9.8304 MHz	18pF
ABL-25.000MHZ-20-R40B4HF-T	Abracon LLC	ABL	25 MHz	20pF
ABL-8.000MHZ-B2-T	Abracon LLC	ABL	8 MHz	18pF
ABL-14.31818MHZ-B2	Abracon LLC	ABL	14.31818 MHz	18pF
ABL-4.096MHZ-B2	Abracon LLC	ABL	4.096 MHz	18pF
ABL-25.000MHZ-B2F	Abracon LLC	ABL	25 MHz	18pF
ABL-22.1184MHZ-B2	Abracon LLC	ABL	22.1184 MHz	18pF
ABL-14.7456MHZ-B2	Abracon LLC	ABL	14.7456 MHz	18pF
ABL-16.384MHZ-B2	Abracon LLC	ABL	16.384 MHz	18pF
ABL-19.6608MHZ-B2	Abracon LLC	ABL	19.6608 MHz	18pF
ABL-27.000MHZ-B2F	Abracon LLC	ABL	27 MHz	18pF
ABL-40.000MHZ-B2	Abracon LLC	ABL	40 MHz	18pF
ABL-9.8304MHZ-20-R50-D-T	Abracon LLC	ABL	9.8304 MHz	20pF
ABL-20.000MHZ-N2X-T	Abracon LLC	ABL	20 MHz	18pF
ABL-12.000MHZ-N2X-T	Abracon LLC	ABL	12 MHz	18pF
ABL-25.000MHZ-N2XF-T	Abracon LLC	ABL	25 MHz	18pF
ABL-20.000MHZ-B2-T	Abracon LLC	ABL	20 MHz	18pF
ABL-18.432MHZ-B2	Abracon LLC	ABL	18.432 MHz	18pF
ABL-24.576MHZ-B2F	Abracon LLC	ABL	24.576 MHz	18pF
