首頁歐美晶振 Cardinal晶振CSM1Z-A5B2C5-60-24.0D18,24MHz,Cardinal石英晶振

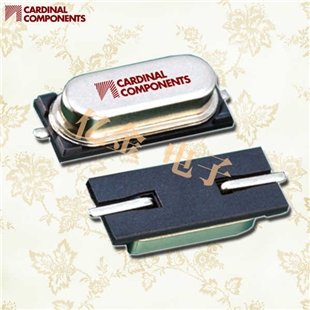

CSM1Z-A5B2C5-60-24.0D18,24MHz,Cardinal石英晶振

頻率：24MHz
尺寸：12.5x4.7x4.3mm
應　用： CSM1Z-A5B2C5-60-24.0D18,24MHz,Cardinal石英晶振,微控制器晶體，Cardinal晶振，卡迪納爾晶振，美國進口晶振，型號：CSM1系列，編碼為：CSM1Z-A5B2C5-60-24.0D18，頻率：24MHz，頻率穩定性：50ppm，工作溫度范圍：-20...

CSM1Z-A5B2C5-60-24.0D18,24MHz,Cardinal石英晶振,微控制器晶體，Cardinal晶振，卡迪納爾晶振，美國進口晶振，型號：CSM1系列，編碼為：CSM1Z-A5B2C5-60-24.0D18，頻率：24MHz，頻率穩定性：±50ppm，工作溫度范圍：-20℃至+70℃，負載電容：18pF，頻率容差：±20ppm，是一款小體積晶振尺寸：12.5x4.5mm金屬包裝，是一款橢圓形金屬殼封裝晶振，低輪廓表面安裝晶體，兩腳貼片晶振，石英晶振，石英晶體諧振器，無源晶振，無鉛環保晶振，SMD晶體。被廣泛用于：通訊設備晶振，無線網絡晶振，藍牙模塊晶振，無線局域網晶振，MPU，微控制器，機頂盒等應用。

CSM1Z-A5B2C5-60-24.0D18,24MHz,Cardinal石英晶振,微控制器晶體,產品特點
•薄型表面貼裝水晶
•封裝是自動表面安裝組件和回流焊實踐的理想選擇
•CSM1-4.6mm；CSM4-3.5mm；CSM5-3.0mm高
•AT切割水晶
•頻率范圍：3.579545MHz至80MHz

CSM1Z-A5B2C5-60-24.0D18,24MHz,Cardinal石英晶振,微控制器晶體,規格表

Parameter

Min

Typ

Max

Unit

Condition (Consult factory for other options)

Frequency Range

MHz

Calibration Frequency Tolerance

±10

±100

ppm

at +25°C ± 3°C, see part number guide below for available options

Frequency Stability

±10

±100

ppm

see part number guide below for available options

Operating Temperature Range

-40

+85

°C

see part number guide below for available options

Storage Temperature Range

-55

+125

°C

Equivalent Series Resistance
(ESR)

140
120
80
45
40
35
30
25
25
80
80

Freq < 4 MHz
4 MHz ≤ Freq < 5 MHz
5 MHz ≤ Freq ≤ 7 MHz
7 MHz < Freq ≤ 9 MHz
9 MHz ≤ Freq < 13 MHz
13 MHz ≤ Freq < 16 MHz
16 MHz ≤ Freq < 20 MHz
20 MHz ≤ Freq < 30 MHz
30 MHz ≤ Freq ≤ 36MHz
30 MHz ≤ Freq ≤ 36MHz (3rd Overtone)
36 MHz ≤ Freq ≤ 80MHz (3rd Overtone)

Drive Level

0.1

1.0

Shunt Capacitance (C0)

7.0

Pad to Pad Capacitance

Aging at 25°C ± 3°C

±5

ppm

for the first year

CSM1Z-A5B2C5-60-24.0D18,24MHz,Cardinal石英晶振,微控制器晶體,尺寸圖

原廠編碼	卡迪納爾晶振	型號	系列	頻率
CSM1Z-A5B2C3-40-14.31818D18	Cardinal晶振	CSM1	MHz Crystal	14.31818MHz
CSM1Z-A5B2C5-60-24.0D18	Cardinal晶振	CSM1	MHz Crystal	24MHz
CSM1Z-A2B2C3-40-30.0D18	Cardinal晶振	CSM1	MHz Crystal	30MHz
CSM1Z-A0B2C3-50-22.1184D18	Cardinal晶振	CSM1	MHz Crystal	22.1184MHz
CSM1Z-A0B2C3-100-5.0D18	Cardinal晶振	CSM1	MHz Crystal	5MHz
CSM1Z-A5B2C5-40-14.7456D18	Cardinal晶振	CSM1	MHz Crystal	14.7456MHz
CSM1Z-A5B2C3-40-25.0D18-F	Cardinal晶振	CSM1	MHz Crystal	25MHz
CSM1Z-A0B2C3-50-16.0D18	Cardinal晶振	CSM1	MHz Crystal	16MHz
CSM1Z-A5B2C5-50-20.0D18	Cardinal晶振	CSM1	MHz Crystal	20MHz
CSM1Z-A1B2C3-90-8.0D18	Cardinal晶振	CSM1	MHz Crystal	8MHz
CSM1Z-A5B2C5-40-11.0592D18	Cardinal晶振	CSM1	MHz Crystal	11.0592MHz
CSM1Z-A0B2C3-50-15.360D18	Cardinal晶振	CSM1	MHz Crystal	15.36MHz
CSM1Z-A0B2C3-50-19.6608D18	Cardinal晶振	CSM1	MHz Crystal	19.6608MHz
CSM1Z-A5B2C3-40-14.7456D20	Cardinal晶振	CSM1	MHz Crystal	14.7456MHz
CSM1Z-A0B2C3-80-13.5D18	無源晶振	CSM1	MHz Crystal	13.5MHz
CSM1Z-A0B2C3-50-16.257D18	Cardinal晶振	CSM1	MHz Crystal	16.257MHz
CSM1Z-A5B2C3-40-24.576D18	Cardinal晶振	CSM1	MHz Crystal	24.576MHz
CSM1Z-A0B2C3-50-16.000312D18	Cardinal晶振	CSM1	MHz Crystal	16.000312MHz
CSM1Z-A0B2C3-50-18.0D18	Cardinal晶振	CSM1	MHz Crystal	18MHz
CSM1Z-A0B2C3-200-3.6864D18	Cardinal晶振	CSM1	MHz Crystal	3.6864MHz
CSM1Z-A5B2C3-200-3.6864D18	Cardinal晶振	CSM1	MHz Crystal	3.6864MHz
CSM1Z-A0B2C3-150-4.9152D18	Cardinal晶振	CSM1	MHz Crystal	4.915MHz
CSM1Z-A0B2C3-40-25.0D18	Cardinal晶振	CSM1	MHz Crystal	25MHz
CSM1Z-A5B2C5-70-10.0D18	Cardinal晶振	CSM1	MHz Crystal	10MHz
CSM1Z-A0B2C3-50-25.175D18	Cardinal晶振	CSM1	MHz Crystal	25.175MHz
CSM1Z-A5B2C3-120-6.144D18	Cardinal晶振	CSM1	MHz Crystal	6.144MHz
CSM1-A1B2C3-50-20.0D16	Cardinal晶振	CSM1	MHz Crystal	20MHz
CSM1Z-A5B2C5-150-3.6864D18	Cardinal晶振	CSM1	MHz Crystal	3.6864MHz
CSM1Z-A5B2C5-40-10.0D18	Cardinal晶振	CSM1	MHz Crystal	10MHz
