CVT32壓控溫補晶振,Crystek振蕩器,CVT32-12.000MHZ晶振，小型SMD進口有源晶振,從最初超大體積到現在的7050mm,6035mm,5032mm,3225mm,2520mm體積,有著翻天覆地的改變,體積的變小也使產品帶來了更高的穩定性能,接縫密封石英晶體振蕩器,精度高,覆蓋頻率范圍寬的特點,SMD高速自動安裝和高溫回流焊設計,Optionable待機輸出三態輸出功能,電源電壓范圍:1.8V~5V,高穩定性,低抖動,低功耗,主要應用領域:無線通訊,高端智能手機,平板筆記本WLAN,藍牙,數碼相機,DSL和其他IT產品的晶振應用,三態功能,PC和LCDM等高端數碼領域,符合RoHS/無鉛.

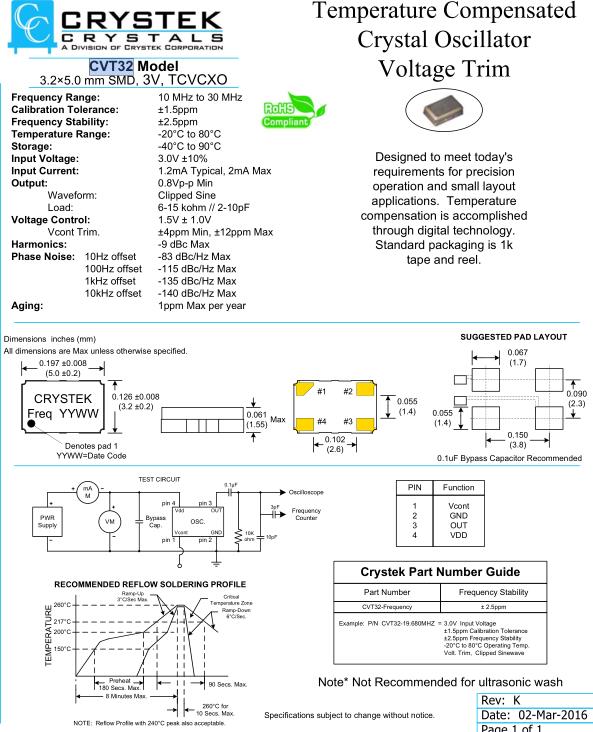

Frequency Range:	10 MHz to 30 MHz
Calibration Tolerance:	±1.5ppm
Frequency Stability:	±2.5ppm
Temperature Range:	-20°C to 80°C
Storage:	-40°C to 90°C
Input Voltage:	3.0V ±10%
Input Current:	1.2mA Typical, 2mA Max
Output:             Waveform:             Load:	0.8Vp-p Min Clipped Sine 6-15 kohm // 2-10pF
Voltage Control:        Vcont Trim.	1.5V ± 1.0V ±4ppm Min, ±13ppm Max
Harmonics:	-9 dBc Max
Phase Noise:                 10Hz offset                 100Hz offset                 1kHz offset                 10kHz offset	-83 dBc/Hz Max -115 dBc/Hz Max -135 dBc/Hz Max -140 dBc/Hz Max
Aging:	1ppm Max per year
