更多>>CB3LV-3I-12M000000,CTS西迪斯晶振,7050有源四腳晶振
- 頻率：12MHz
- 尺寸：7050mm
- 應 用： CB3LV-3I-12M000000,CTS西迪斯晶振,7050有源四腳晶振,選擇CB3LV-3I-12M000000晶振,即選擇CTS西迪斯的百年品牌保障.作為全球領先的頻率控制器件制造商,CTS西迪斯在晶振研發領域擁有成熟的技術體系與嚴格的質量管控流程...
-
.png)
.png)

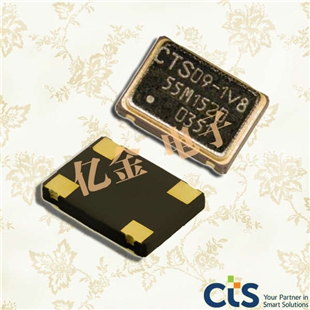

CB3LV-3I-12M000000,CTS西迪斯晶振,7050有源四腳晶振
作為CTS西迪斯晶振旗下的核心晶振產品,CB3LV-3I-12M000000以"高穩定性+高兼容性"為核心優勢.7050封裝尺寸兼顧空間利用率與散熱性能,有源驅動設計確保信號輸出強度穩定,四腳引腳布局適配主流PCB板設計規范,無需額外調整電路即可快速集成.同時,產品具備寬溫工作能力(通常覆蓋-40℃至+85℃),能在復雜環境下保持頻率精度,有效降低設備因時鐘信號波動導致的故障風險,是通信設備,醫療儀器等領域的可靠選擇.其12MHz穩定頻率可保障數據傳輸?shù)臅r(shí)序同步,在汽車電子輔助系統中,寬溫特性與抗干擾能力能應對車載環境的溫度波動與電磁干擾,在消費電子(如平板電腦晶振,智能穿戴設備)中,7050小巧封裝可節省PCB板空間,適配設備輕薄化設計,全方位滿足不同場景下的性能與尺寸需求.
.png)
.png)
CB3LV-3I-12M000000,CTS西迪斯晶振,7050有源四腳晶振
| 原廠型號 Originalmodel： | CB3LV-3I-12M000000 | 品牌brand： | CTS |
| Manufacturer品牌 | CTS | OperatingTemperature溫度 | -40℃~+85℃ |
| Series型號 | CB3LV | Current-Supply(Max) | - |
| Type類型 | XO | PackageHeight高度 | 1.0mm |
| Frequency頻率 | 12M | Termination 腳位 | 4-pad |
| 輸出方式 Output： | HCMOS；TTL輸出 | PackageType 封裝類型 | 4-SMD |
| Voltage-Supply電壓 | 3.3V | Packaging 包裝 | TapeandReel |
| FrequencyStability頻率穩定度 | ±50PP | 安裝方式 Installation： | Surfacemount |
| Size/Dimension尺寸 | 7050有源晶振 | 最小包裝數MPQ： | 1000 |
.png)
.png)

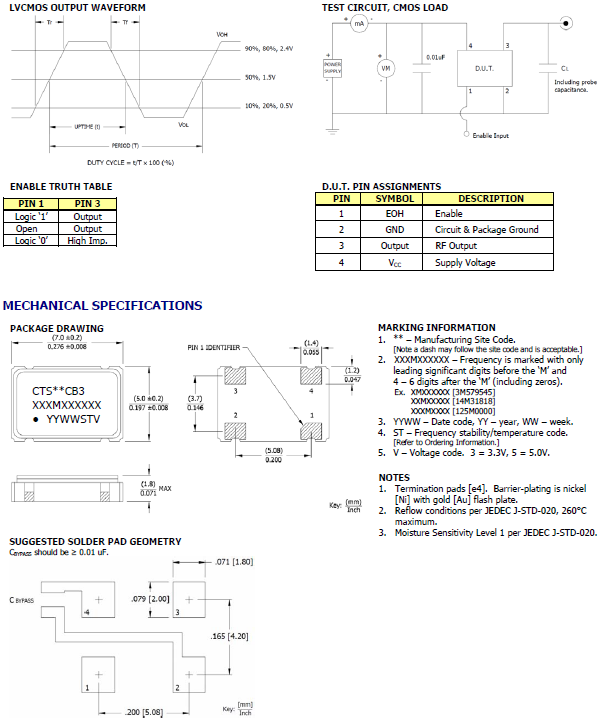

CB3LV-3I-12M000000,CTS西迪斯晶振,7050有源四腳晶振
CB3LV-3I-12M000000,CTS西迪斯晶振,7050有源四腳晶振
| 334P1555B4I2T | CTS | 334P/L | VCXO | 155.52 MHz | LVPECL | 2.5V | ±30ppm | -40°C ~ 85°C |
| 334P1555B4I3T | CTS | 334P/L | VCXO | 155.52 MHz | LVPECL | 3.3V | ±30ppm | -40°C ~ 85°C |
| 334P1555B5C2T | CTS | 334P/L | VCXO | 155.52 MHz | LVPECL | 2.5V | ±25ppm | -20°C ~ 70°C |
| 334P1555B5C3T | CTS | 334P/L | VCXO | 155.52 MHz | LVPECL | 3.3V | ±25ppm | -20°C ~ 70°C |
| 334P1562B3C2T | CTS | 334P/L | VCXO | 156.25 MHz | LVPECL | 2.5V | ±50ppm | -20°C ~ 70°C |
| 334P1562B3C3T | CTS | 334P/L | VCXO | 156.25 MHz | LVPECL | 3.3V | ±50ppm | -20°C ~ 70°C |
| 334P1562B3I2T | CTS | 334P/L | VCXO | 156.25 MHz | LVPECL | 2.5V | ±50ppm | -40°C ~ 85°C |
| 334P1562B3I3T | CTS | 334P/L | VCXO | 156.25 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 334P1562B4C2T | CTS | 334P/L | VCXO | 156.25 MHz | LVPECL | 2.5V | ±30ppm | -20°C ~ 70°C |
| 334P1562B4C3T | CTS | 334P/L | VCXO | 156.25 MHz | LVPECL | 3.3V | ±30ppm | -20°C ~ 70°C |
| 334P1562B4I2T | CTS | 334P/L | VCXO | 156.25 MHz | LVPECL | 2.5V | ±30ppm | -40°C ~ 85°C |
| 334P1562B4I3T | CTS | 334P/L | VCXO | 156.25 MHz | LVPECL | 3.3V | ±30ppm | -40°C ~ 85°C |
| 334P1562B5C2T | CTS | 334P/L | VCXO | 156.25 MHz | LVPECL | 2.5V | ±25ppm | -20°C ~ 70°C |
| 334P1562B5C3T | CTS | 334P/L | VCXO | 156.25 MHz | LVPECL | 3.3V | ±25ppm | -20°C ~ 70°C |
| 334P2000B3C2T | CTS | 334P/L | VCXO | 200 MHz | LVPECL | 2.5V | ±50ppm | -20°C ~ 70°C |
| 334P2000B3C3T | CTS | 334P/L | VCXO | 200 MHz | LVPECL | 3.3V | ±50ppm | -20°C ~ 70°C |
| 334P2000B3I2T | CTS | 334P/L | VCXO | 200 MHz | LVPECL | 2.5V | ±50ppm | -40°C ~ 85°C |
| 334P2000B3I3T | CTS | 334P/L | VCXO | 200 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 334P2000B4C2T | CTS | 334P/L | VCXO | 200 MHz | LVPECL | 2.5V | ±30ppm | -20°C ~ 70°C |
| 334P2000B4C3T | CTS | 334P/L | VCXO | 200 MHz | LVPECL | 3.3V | ±30ppm | -20°C ~ 70°C |
| 334P2000B4I2T | CTS | 334P/L | VCXO | 200 MHz | LVPECL | 2.5V | ±30ppm | -40°C ~ 85°C |
| 334P2000B4I3T | CTS | 334P/L | VCXO | 200 MHz | LVPECL | 3.3V | ±30ppm | -40°C ~ 85°C |
| 334P2000B5C2T | CTS | 334P/L | VCXO | 200 MHz | LVPECL | 2.5V | ±25ppm | -20°C ~ 70°C |
| 334P2000B5C3T | CTS | 334P/L | VCXO | 200 MHz | LVPECL | 3.3V | ±25ppm | -20°C ~ 70°C |
| 334P2500B3C2T | CTS | 334P/L | VCXO | 250 MHz | LVPECL | 2.5V | ±50ppm | -20°C ~ 70°C |
| 334P2500B3C3T | CTS | 334P/L | VCXO | 250 MHz | LVPECL | 3.3V | ±50ppm | -20°C ~ 70°C |
| 334P2500B3I2T | CTS | 334P/L | VCXO | 250 MHz | LVPECL | 2.5V | ±50ppm | -40°C ~ 85°C |
| 334P2500B3I3T | CTS | 334P/L | VCXO | 250 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 334P2500B4C2T | CTS | 334P/L | VCXO | 250 MHz | LVPECL | 2.5V | ±30ppm | -20°C ~ 70°C |
| 334P2500B4C3T | CTS | 334P/L | VCXO | 250 MHz | LVPECL | 3.3V | ±30ppm | -20°C ~ 70°C |
| 334P2500B4I2T | CTS | 334P/L | VCXO | 250 MHz | LVPECL | 2.5V | ±30ppm | -40°C ~ 85°C |
| 334P2500B4I3T | CTS | 334P/L | VCXO | 250 MHz | LVPECL | 3.3V | ±30ppm | -40°C ~ 85°C |
| 334P2500B5C2T | CTS | 334P/L | VCXO | 250 MHz | LVPECL | 2.5V | ±25ppm | -20°C ~ 70°C |
| 334P2500B5C3T | CTS | 334P/L | VCXO | 250 MHz | LVPECL | 3.3V | ±25ppm | -20°C ~ 70°C |
| 334P250B3C2T | CTS | 334P/L | VCXO | 25 MHz | LVPECL | 2.5V | ±50ppm | -20°C ~ 70°C |
| 334P250B3C3T | CTS | 334P/L | VCXO | 25 MHz | LVPECL | 3.3V | ±50ppm | -20°C ~ 70°C |
| 334P250B3I2T | CTS | 334P/L | VCXO | 25 MHz | LVPECL | 2.5V | ±50ppm | -40°C ~ 85°C |
| 334P250B3I3T | CTS | 334P/L | VCXO | 25 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 334P250B4C2T | CTS | 334P/L | VCXO | 25 MHz | LVPECL | 2.5V | ±30ppm | -20°C ~ 70°C |
| 334P250B4C3T | CTS | 334P/L | VCXO | 25 MHz | LVPECL | 3.3V | ±30ppm | -20°C ~ 70°C |
| 334P250B4I2T | CTS | 334P/L | VCXO | 25 MHz | LVPECL | 2.5V | ±30ppm | -40°C ~ 85°C |
| 334P250B4I3T | CTS | 334P/L | VCXO | 25 MHz | LVPECL | 3.3V | ±30ppm | -40°C ~ 85°C |
| 334P250B5C2T | CTS | 334P/L | VCXO | 25 MHz | LVPECL | 2.5V | ±25ppm | -20°C ~ 70°C |
| 334P250B5C3T | CTS | 334P/L | VCXO | 25 MHz | LVPECL | 3.3V | ±25ppm | -20°C ~ 70°C |
| 334P3000B3C2T | CTS | 334P/L | VCXO | 300 MHz | LVPECL | 2.5V | ±50ppm | -20°C ~ 70°C |
| 334P3000B3C3T | CTS | 334P/L | VCXO | 300 MHz | LVPECL | 3.3V | ±50ppm | -20°C ~ 70°C |
| 334P3000B3I2T | CTS | 334P/L | VCXO | 300 MHz | LVPECL | 2.5V | ±50ppm | -40°C ~ 85°C |
| 334P3000B3I3T | CTS | 334P/L | VCXO | 300 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 334P3000B4C2T | CTS | 334P/L | VCXO | 300 MHz | LVPECL | 2.5V | ±30ppm | -20°C ~ 70°C |
| 334P3000B4C3T | CTS | 334P/L | VCXO | 300 MHz | LVPECL | 3.3V | ±30ppm | -20°C ~ 70°C |
| 334P3000B4I2T | CTS | 334P/L | VCXO | 300 MHz | LVPECL | 2.5V | ±30ppm | -40°C ~ 85°C |
| 334P3000B4I3T | CTS | 334P/L | VCXO | 300 MHz | LVPECL | 3.3V | ±30ppm | -40°C ~ 85°C |
| 334P3000B5C2T | CTS | 334P/L | VCXO | 300 MHz | LVPECL | 2.5V | ±25ppm | -20°C ~ 70°C |
| 334P3000B5C3T | CTS | 334P/L | VCXO | 300 MHz | LVPECL | 3.3V | ±25ppm | -20°C ~ 70°C |
| 334P3125B3C2T | CTS | 334P/L | VCXO | 312.5 MHz | LVPECL | 2.5V | ±50ppm | -20°C ~ 70°C |
| 334P3125B3C3T | CTS | 334P/L | VCXO | 312.5 MHz | LVPECL | 3.3V | ±50ppm | -20°C ~ 70°C |
| 334P3125B3I2T | CTS | 334P/L | VCXO | 312.5 MHz | LVPECL | 2.5V | ±50ppm | -40°C ~ 85°C |
| 334P3125B3I3T | CTS | 334P/L | VCXO | 312.5 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 334P3125B4C2T | CTS | 334P/L | VCXO | 312.5 MHz | LVPECL | 2.5V | ±30ppm | -20°C ~ 70°C |
| 334P3125B4C3T | CTS | 334P/L | VCXO | 312.5 MHz | LVPECL | 3.3V | ±30ppm | -20°C ~ 70°C |
