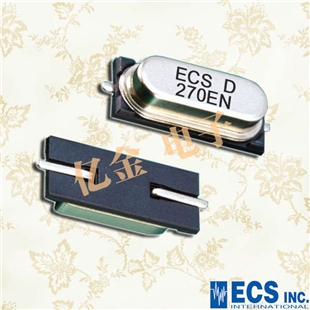

ECS-245.7-20-3X-TR|24.576MHz|20PF|30PPM|49SMD
- 頻率：24.576MHz

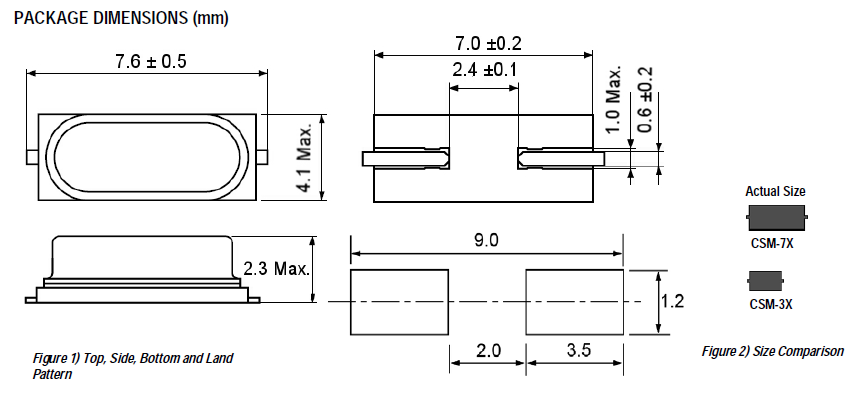

- 尺寸：7mm*4.1mm
- 應 用： ECS-245.7-20-3X-TR|24.576MHz|20PF|30PPM|49SMD，ECS石英晶體振蕩器，CSM-3XSMD晶體，CSM-3X是一種小型低輪廓電阻焊縫型SMD石英晶體。將CSM-7X（HC-49USXSMD）的占用空間減少50%。ECS-245.7-20-3X-TR|24.576MHz|20PF...
-
-
.jpg)

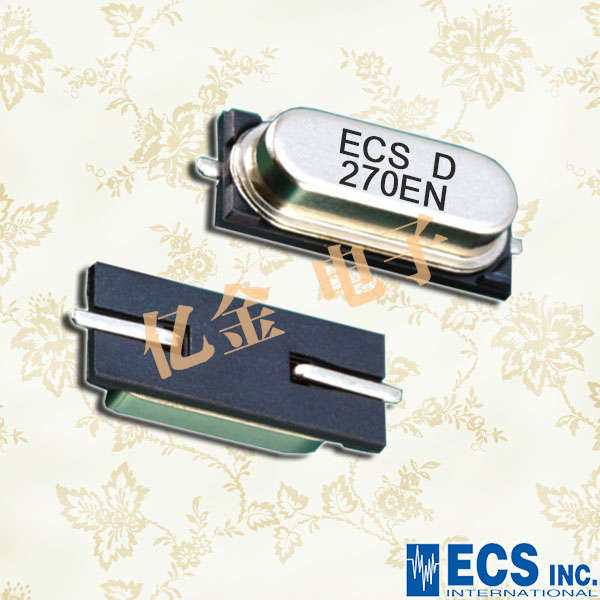

ECS-245.7-20-3X-TR|24.576MHz|20PF|30PPM|49SMD， ECS石英晶體振蕩器，CSM-3X SMD晶體，CSM-3X是一種小型低輪廓電阻焊縫型SMD石英晶體。將CSM-7X（HC-49USX SMD）的占用空間減少50%。

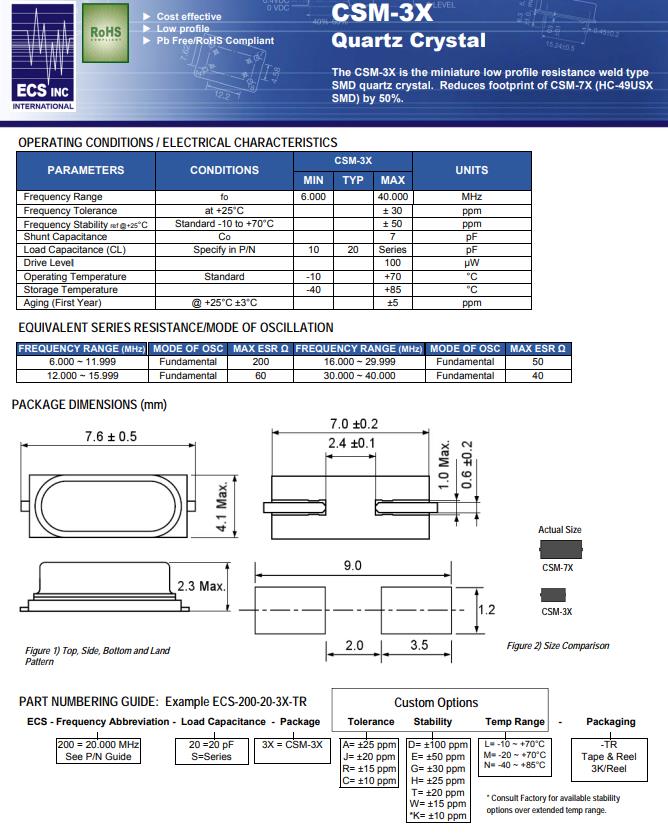

ECS-245.7-20-3X-TR|24.576MHz|20PF|30PPM|49SMD
| 參數 | 環境 | CSM-3X | 單位 | ||
| 最小值 | 典型的 | 最大值 | |||
| 頻率 | 12.000 | 40.000 | MHz | ||
| 工作模式 | Fundamental | ||||
| 頻率容差 | @ +25°C | ± 30 | ppm | ||
| 頻率偏差度 | -10 ~ +70°C | ± 50 | ppm | ||
| 并聯電容 | Co | 7 | pF | ||
| 負載電容 | Specify in P/N | 10 | 20 | Series | pF |
| 驅動電平 | DL | 100 | μW | ||
| 工作溫度 | Topr | --10 | +70 | °C | |
| 儲存溫度 | Tstg | --40 | +85 | °C | |
| 老化 | @ +25°C ±3°C | ±5 | ppm | ||
.jpg)
ECS-245.7-20-3X-TR|24.576MHz|20PF|30PPM|49SMD
| ECS原廠編碼 | 型號 | 類型 | 頻率 | 頻率容差 | 頻率偏差度 | 負載電容 |
| ECS-120-20-3X-EN-TR | CSM-3X | MHz Crystal | 12MHz | ±50ppm | ±30ppm | 20pF |
| ECS-120-20-3X-TR | CSM-3X | MHz Crystal | 12MHz | ±50ppm | ±30ppm | 20pF |
| ECS-122.8-20-3X-EN-TR | CSM-3X | MHz Crystal | 12.288MHz | ±50ppm | ±30ppm | 20pF |
| ECS-122.8-20-3X-TR | CSM-3X | MHz Crystal | 12.288MHz | ±50ppm | ±30ppm | 20pF |
| ECS-130-20-3X-EN-TR | CSM-3X | MHz Crystal | 13MHz | ±50ppm | ±30ppm | 20pF |
| ECS-130-20-3X-TR | CSM-3X | MHz Crystal | 13MHz | ±50ppm | ±30ppm | 20pF |
| ECS-135.6-20-3X-EN-TR | CSM-3X | MHz Crystal | 13.56MHz | ±50ppm | ±30ppm | 20pF |
| ECS-135.6-20-3X-TR | CSM-3X | MHz Crystal | 13.56MHz | ±50ppm | ±30ppm | 20pF |
| ECS-143-20-3X-EN-TR | CSM-3X | MHz Crystal | 14.31818MHz | ±50ppm | ±30ppm | 20pF |
| ECS-143-20-3X-TR | CSM-3X | MHz Crystal | 14.31818MHz | ±50ppm | ±30ppm | 20pF |
| ECS-147.4-20-3X-EN-TR | CSM-3X | MHz Crystal | 14.7456MHz | ±50ppm | ±30ppm | 20pF |
| ECS-147.4-20-3X-TR | CSM-3X | MHz Crystal | 14.7456MHz | ±50ppm | ±30ppm | 20pF |
| ECS-160-20-3X-EN-TR | CSM-3X | MHz Crystal | 16MHz | ±50ppm | ±30ppm | 20pF |
| ECS-160-20-3X-TR | CSM-3X | MHz Crystal | 16MHz | ±50ppm | ±30ppm | 20pF |
| ECS-184-20-3X-EN-TR | CSM-3X | MHz Crystal | 18.432MHz | ±50ppm | ±30ppm | 20pF |
| ECS-184-20-3X-TR | CSM-3X | MHz Crystal | 18.432MHz | ±50ppm | ±30ppm | 20pF |
| ECS-196.6-20-3X-EN-TR | CSM-3X | MHz Crystal | 19.6608MHz | ±50ppm | ±30ppm | 20pF |
| ECS-196.6-20-3X-TR | CSM-3X | MHz Crystal | 19.6608MHz | ±50ppm | ±30ppm | 20pF |
| ECS-200-20-3X-EN-TR | CSM-3X | MHz Crystal | 20MHz | ±50ppm | ±30ppm | 20pF |
| ECS-200-20-3X-TR | CSM-3X | MHz Crystal | 20MHz | ±50ppm | ±30ppm | 20pF |
| ECS-200-CDX-0914 | CSM-3X | MHz Crystal | 20MHz | ±30ppm | ±10ppm | 10pF |
| ECS-245.7-20-3X-EN-TR | CSM-3X | MHz Crystal | 24.576MHz | ±50ppm | ±30ppm | 20pF |
| ECS-245.7-20-3X-TR | CSM-3X | MHz Crystal | 24.576MHz | ±50ppm | ±30ppm | 20pF |
| ECS-250-20-3X-EN-TR | CSM-3X | MHz Crystal | 25MHz | ±50ppm | ±30ppm | 20pF |
| ECS-250-20-3X-TR | CSM-3X | MHz Crystal | 25MHz | ±50ppm | ±30ppm | 20pF |
| ECS-270-20-3X-EN-TR | CSM-3X | MHz Crystal | 27MHz | ±50ppm | ±30ppm | 20pF |
| ECS-270-20-3X-TR | CSM-3X | MHz Crystal | 27MHz | ±50ppm | ±30ppm | 20pF |
| ECS-286.3-20-3X-EN-TR | CSM-3X | MHz Crystal | 28.63636MHz | ±50ppm | ±30ppm | 20pF |
| ECS-286.3-20-3X-TR | CSM-3X | MHz Crystal | 28.63636MHz | ±50ppm | ±30ppm | 20pF |
| ECS-300-20-3X-EN-TR | CSM-3X | MHz Crystal | 30MHz | ±50ppm | ±30ppm | 20pF |
| ECS-300-20-3X-TR | CSM-3X | MHz Crystal | 30MHz | ±50ppm | ±30ppm | 20pF |
| ECS-330-20-3X-EN-TR | CSM-3X | MHz Crystal | 33MHz | ±50ppm | ±30ppm | 20pF |
| ECS-330-20-3X-TR | CSM-3X | MHz Crystal | 33MHz | ±50ppm | ±30ppm | 20pF |
| ECS-400-20-3X-EN-TR | CSM-3X | MHz Crystal | 40MHz | ±50ppm | ±30ppm | 20pF |
| ECS-400-20-3X-TR | CSM-3X | MHz Crystal | 40MHz | ±50ppm | ±30ppm | 20pF |
