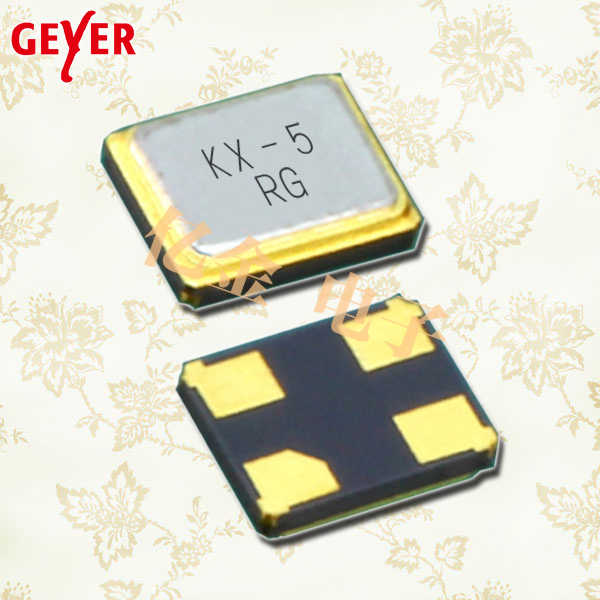

格耶貼片晶振,KX-5無源諧振器,超小型晶振,貼片晶振本身體積小,超薄型石英晶體振蕩器,特別適用于有目前高速發展的高端電子數碼產品,因?yàn)榫д癖旧硇⌒突枨蟮氖袌鲱I(lǐng)域,小型,薄型是對應陶瓷振蕩器(偏差大)和普通的石英晶體振蕩器(偏差小)的中間領域的一種性價比較出色的產品.產品廣泛用于筆記本電腦,無線電話,衛星導航SSD,USB,Blu-ray等用途,符合無鉛焊接的高溫回流焊曲線特性.
    GEYER晶振作為一個可靠的，成功的合作伙伴，我們非常重視在開發階段與客戶的密切合作。這使我們能夠確保我們能夠?yàn)槟峁┠胍暮托枰摹?

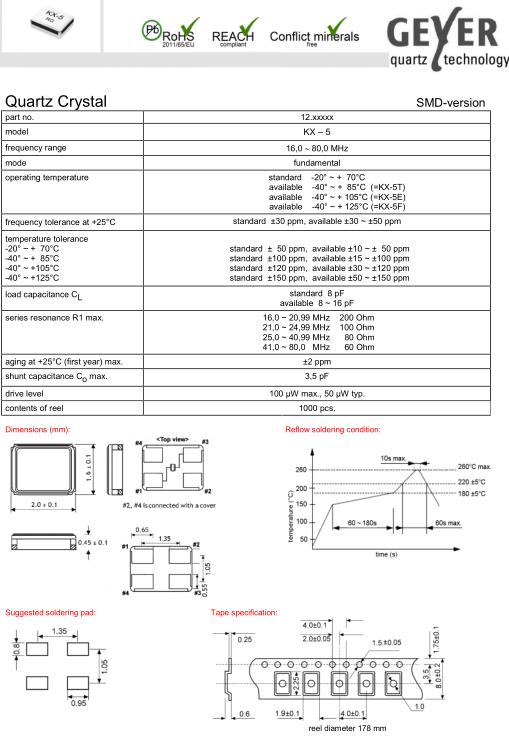

part no.	12.xxxxx
model	KX – 5
frequency range	16,0 ~ 80,0 MHz
mode	fundamental
operating temperature	standard -20° ~ + 70°C  available -40° ~ + 85°C (=KX-5T)  available -40° ~ + 105°C (=KX-5E)  available -40° ~ + 125°C (=KX-5F)
frequency tolerance at +25°C	standard ±30 ppm, available ±30 ~ ±50 ppm
temperature tolerance -40° ~ +85°C -20° ~ +70°C -40° ~ +105°C -40° ~ +125°C	standard ± 50 ppm, available ±10 ~ ± 50 ppm  standard ±100 ppm, available ±15 ~ ±100 ppm  standard ±120 ppm, available ±30 ~ ±120 ppm  standard ±150 ppm, available ±50 ~ ±150 ppm
load capacitance CL	standard 8 pF  available 8 ~ 16 pF
series resonance R1 max.	16,0 ~ 20,99 MHz 200 Ohm  21,0 ~ 24,99 MHz 100 Ohm  25,0 ~ 40,99 MHz 80 Ohm  41,0 ~ 80,0 MHz 60 Ohm
aging at +25°C (first year) max.	±2 ppm
shunt capacitance Co max.	3,5 pF
drive level max.	100 µW max., 50 µW typ.
contents of reel	1000 pcs.

  GEYER晶振注意事項：
