首頁進口晶振加高晶振臺灣加高晶振,X2C032000BA1HA-U,6G無線模塊晶振

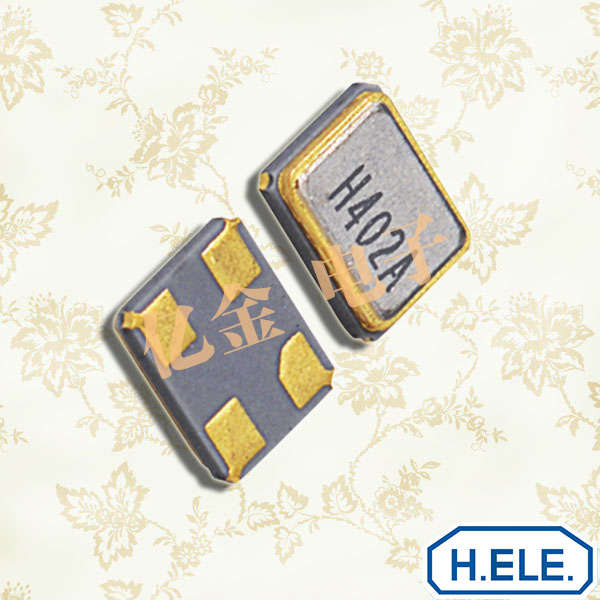

臺灣加高晶振,X2C032000BA1HA-U,6G無線模塊晶振

頻率：32MHz
尺寸：2.0×1.6mm
應　用： 臺灣加高晶振,HSX211S石英晶體,X2C032000BA1HA-U晶振,進口貼片晶振,2016mm晶振,頻率32MHz,負載10pF,頻率穩定性20ppm,工作溫度-40~85°C,高精度晶振,輕薄小晶振,6G無線模塊晶振,智能手機應用晶振,RFID應用晶振,小型電子...

臺灣加高晶振,X2C032000BA1HA-U,6G無線模塊晶振,臺灣加高晶振,HSX211S石英晶體,X2C032000BA1HA-U晶振,進口貼片晶振,2016mm晶振,頻率32MHz,負載10pF,頻率穩定性20ppm,工作溫度-40~85°C,高精度晶振,輕薄小晶振,6G無線模塊晶振,智能手機應用晶振,RFID應用晶振,小型電子設備晶振.

臺灣加高晶振,X2C032000BA1HA-U,6G無線模塊晶振特點：

-超微型貼片型晶體器件

-精度高，可靠性好，耐熱性好

-為設計空間有限的智能手機應用、小型化無線模塊設備、RFID應用和其他消費類產品提供最佳解決方案

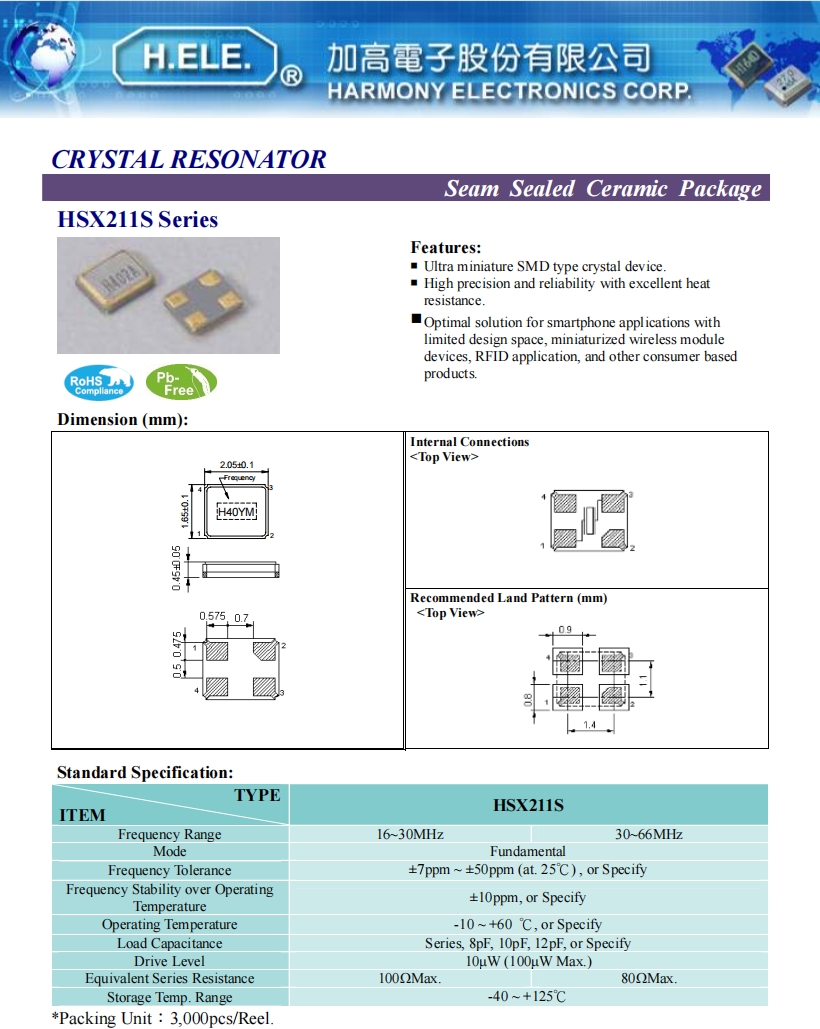

臺灣加高晶振,X2C032000BA1HA-U,6G無線模塊晶振規格表

項目	HSX211S
頻率	32MHz
振動模式	Fundamental
頻率公差	±10ppm
頻率穩定性	±20ppm
負載電容	10pf
工作溫度	－40℃～＋85℃
保存溫度	－40℃～＋125℃
串聯阻力	80Ω Max.
驅動級別	100μW Max

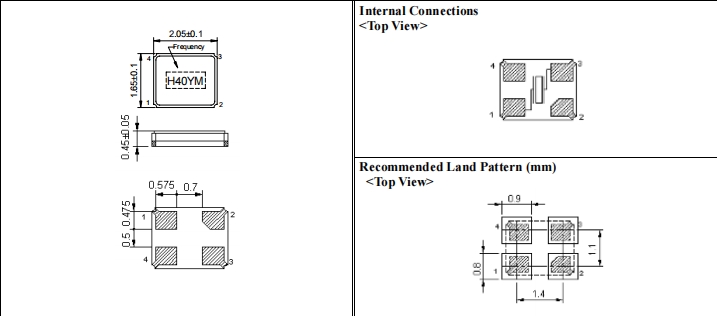

臺灣加高晶振,X2C032000BA1HA-U,6G無線模塊晶振尺寸圖

原廠編碼	制造廠家	型號	頻率	負載	頻率容差	頻率穩定性
X2C032000BA1HA-U	HELE晶振	HSX211S	32MHz	10pF	±10PPM	±20PPM
X2C012000BA1HA-U	HELE晶振	HSX211S	12MHz	10pF	±10PPM	±20PPM
X2C013000BA1HA-U	HELE晶振	HSX211S	13MHz	10pF	±10PPM	±20PPM
X2C014000BA1HA-U	HELE晶振	HSX211S	14MHz	10pF	±10PPM	±20PPM
X2C015000BA1HA-U	HELE晶振	HSX211S	15MHz	10pF	±10PPM	±20PPM
X2C016000BA1HA-U	HELE晶振	HSX211S	16MHz	10pF	±10PPM	±20PPM
X2C017000BA1HA-U	HELE晶振	HSX211S	17MHz	10pF	±10PPM	±20PPM
X2C018000BA1HA-U	HELE晶振	HSX211S	18MHz	10pF	±10PPM	±20PPM
X2C019000BA1HA-U	HELE晶振	HSX211S	19MHz	10pF	±10PPM	±20PPM
X2C020000BA1HA-U	HELE晶振	HSX211S	20MHz	10pF	±10PPM	±20PPM
X2C021000BA1HA-U	HELE晶振	HSX211S	21MHz	10pF	±10PPM	±20PPM
X2C022000BA1HA-U	HELE晶振	HSX211S	22MHz	10pF	±10PPM	±20PPM
X2C023000BA1HA-U	HELE晶振	HSX211S	23MHz	10pF	±10PPM	±20PPM
X2C024000BA1HA-U	HELE晶振	HSX211S	24MHz	10pF	±10PPM	±20PPM
X2C025000BA1HA-U	HELE晶振	HSX211S	25MHz	10pF	±10PPM	±20PPM
X2C026000BA1HA-U	HELE晶振	HSX211S	26MHz	10pF	±10PPM	±20PPM
X2C027000BA1HA-U	HELE晶振	HSX211S	27MHz	10pF	±10PPM	±20PPM
X2C028000BA1HA-U	HELE晶振	HSX211S	28MHz	10pF	±10PPM	±20PPM
X2C029000BA1HA-U	HELE晶振	HSX211S	29MHz	10pF	±10PPM	±20PPM
X2C030000BA1HA-U	HELE晶振	HSX211S	30MHz	10pF	±10PPM	±20PPM
X2C031000BA1HA-U	HELE晶振	HSX211S	31MHz	10pF	±10PPM	±20PPM
X2C048000BA1HA-U	HELE晶振	HSX211S	48MHz	10pF	±10PPM	±20PPM
X2C033000BA1HA-U	HELE晶振	HSX211S	33MHz	10pF	±10PPM	±20PPM
X2C034000BA1HA-U	HELE晶振	HSX211S	34MHz	10pF	±10PPM	±20PPM
X2C035000BA1HA-U	HELE晶振	HSX211S	35MHz	10pF	±10PPM	±20PPM
X2C036000BA1HA-U	HELE晶振	HSX211S	36MHz	10pF	±10PPM	±20PPM
X2C037000BA1HA-U	HELE晶振	HSX211S	37MHz	10pF	±10PPM	±20PPM
X2C038000BA1HA-U	HELE晶振	HSX211S	38MHz	10pF	±10PPM	±20PPM
X2C039000BA1HA-U	HELE晶振	HSX211S	39MHz	10pF	±10PPM	±20PPM
X2C040000BA1HA-U	HELE晶振	HSX211S	40MHz	10pF	±10PPM	±20PPM
X2C041000BA1HA-U	HELE晶振	HSX211S	41MHz	10pF	±10PPM	±20PPM
X2C042000BA1HA-U	HELE晶振	HSX211S	42MHz	10pF	±10PPM	±20PPM
X2C037400BG1HA-U	HELE晶振	HSX211S	37.4MHz	16pF	±10PPM	±20PPM
