首頁歐美晶振 Jauch晶振Q 20.0-JXS22-8-10/15-T1-FU-WA-LF|20MHz|8PF|2520|JAUCH

Q 20.0-JXS22-8-10/15-T1-FU-WA-LF|20MHz|8PF|2520|JAUCH

頻率：20

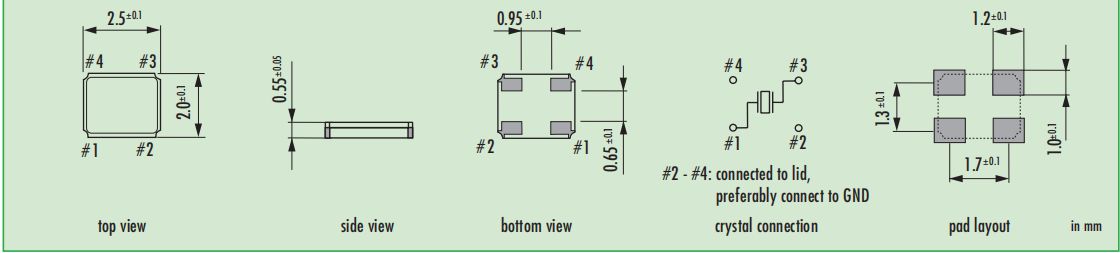

尺寸：2520mm
應　用： Q20.0-JXS22-8-10/15-T1-FU-WA-LF|20MHz|8PF|2520|JAUCH，歐美進口晶振，4墊版本2.5x2.0mmn10ppm類型可用，EMI屏蔽可能通過接地蓋，回流焊溫度：260Cmax。陶瓷/金屬包裝。SMD石英晶體JXS22Q20.0-JXS22-8-10/15-T1-FU-...

Q 20.0-JXS22-8-10/15-T1-FU-WA-LF|20MHz|8PF|2520|JAUCH，歐美進口晶振，4墊版本·2.5 x 2.0 mm n ± 10 ppm類型可用，EMI屏蔽可能通過接地蓋，回流焊溫度： 260°C max。陶瓷/金屬包裝。SMD石英晶體·JXS22

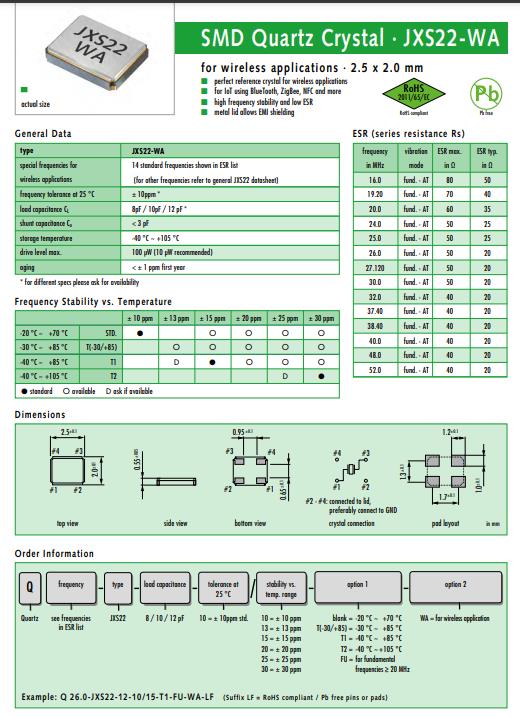

Q 20.0-JXS22-8-10/15-T1-FU-WA-LF|20MHz|8PF|2520|JAUCH

type			JXS22
frequency range			12.0 ~ 54.0 MHz (fund. AT-cut)
frequency tolerance at 25 °C			± 10 ppm / ± 30 ppm
load capacitance CL			12 pF standard (option: 8 pF ~ 30 pF / series)
shunt capacitance Co			< 5 pF
storage temperature			-40 °C ~ +90 °C
drive level max.			100 µW (10 µW recommended)
aging			< ± 3 ppm first year (< ± 1 ppm for tol. ± 10 ppm)

Q 20.0-JXS22-8-10/15-T1-FU-WA-LF|20MHz|8PF|2520|JAUCH

JAUCH原廠編碼	生產廠商	型號	頻率	頻率偏差	負載電荷
Q 19.2-JXS22-10-10/10-WA-LF	Jauch Quartz	JXS22-WA	19.2MHz	±10ppm	10pF
Q 19.2-JXS22-12-10/10-WA-LF	Jauch Quartz	JXS22-WA	19.2MHz	±10ppm	12pF
Q 19.2-JXS22-8-10/10-WA-LF	Jauch Quartz	JXS22-WA	19.2MHz	±10ppm	8pF
Q 19.2-JXS22-9-10/10-WA-LF	Jauch Quartz	JXS22-WA	19.2MHz	±10ppm	9pF
Q 20.0-JXS22-10-10/10-FU-WA-LF	Jauch Quartz	JXS22-WA	20MHz	±10ppm	10pF
Q 20.0-JXS22-12-10/10-FU-WA-LF	Jauch Quartz	JXS22-WA	20MHz	±10ppm	12pF
Q 20.0-JXS22-8-10/10-FU-WA-LF	Jauch Quartz	JXS22-WA	20MHz	±10ppm	8pF
Q 20.0-JXS22-9-10/10-FU-WA-LF	Jauch Quartz	JXS22-WA	20MHz	±10ppm	9pF
Q 24.0-JXS22-10-10/10-FU-WA-LF	Jauch Quartz	JXS22-WA	24MHz	±10ppm	10pF
Q 24.0-JXS22-12-10/10-FU-WA-LF	Jauch Quartz	JXS22-WA	24MHz	±10ppm	12pF
Q 24.0-JXS22-8-10/10-FU-WA-LF	Jauch Quartz	JXS22-WA	24MHz	±10ppm	8pF
Q 24.0-JXS22-9-10/10-FU-WA-LF	Jauch Quartz	JXS22-WA	24MHz	±10ppm	9pF
Q 26.0-JXS22-10-10/10-FU-WA-LF	Jauch Quartz	JXS22-WA	26MHz	±10ppm	10pF
Q 26.0-JXS22-12-10/10-FU-WA-LF	Jauch Quartz	JXS22-WA	26MHz	±10ppm	12pF
Q 26.0-JXS22-8-10/10-FU-WA-LF	Jauch Quartz	JXS22-WA	26MHz	±10ppm	8pF
Q 26.0-JXS22-9-10/10-FU-WA-LF	Jauch Quartz	JXS22-WA	26MHz	±10ppm	9pF
Q 27.12-JXS22-10-10/10-FU-WA-LF	Jauch Quartz	JXS22-WA	27.12MHz	±10ppm	10pF
Q 27.12-JXS22-12-10/10-FU-WA-LF	Jauch Quartz	JXS22-WA	27.12MHz	±10ppm	12pF
Q 27.12-JXS22-8-10/10-FU-WA-LF	Jauch Quartz	JXS22-WA	27.12MHz	±10ppm	8pF
Q 27.12-JXS22-9-10/10-FU-WA-LF	Jauch Quartz	JXS22-WA	27.12MHz	±10ppm	9pF
Q 16.0-JXS22-10-10/10-WA-LF	Jauch Quartz	JXS22-WA	16MHz	±10ppm	10pF
Q 16.0-JXS22-12-10/10-WA-LF	Jauch Quartz	JXS22-WA	16MHz	±10ppm	12pF
Q 16.0-JXS22-8-10/10-WA-LF	Jauch Quartz	JXS22-WA	16MHz	±10ppm	8pF
Q 16.0-JXS22-9-10/10-WA-LF	Jauch Quartz	JXS22-WA	16MHz	±10ppm	9pF
Q 19.2-JXS22-10-10/15-T1-WA-LF	Jauch Quartz	JXS22-WA	19.2MHz	±10ppm	10pF
Q 19.2-JXS22-12-10/15-T1-WA-LF	Jauch Quartz	JXS22-WA	19.2MHz	±10ppm	12pF
Q 19.2-JXS22-8-10/15-T1-WA-LF	Jauch Quartz	JXS22-WA	19.2MHz	±10ppm	8pF
Q 19.2-JXS22-9-10/15-T1-WA-LF	Jauch Quartz	JXS22-WA	19.2MHz	±10ppm	9pF
Q 20.0-JXS22-10-10/15-T1-FU-WA-LF	Jauch Quartz	JXS22-WA	20MHz	±10ppm	10pF
Q 20.0-JXS22-12-10/15-T1-FU-WA-LF	Jauch Quartz	JXS22-WA	20MHz	±10ppm	12pF
Q 20.0-JXS22-8-10/15-T1-FU-WA-LF	Jauch Quartz	JXS22-WA	20MHz	±10ppm	8pF
Q 20.0-JXS22-9-10/15-T1-FU-WA-LF	Jauch Quartz	JXS22-WA	20MHz	±10ppm	9pF
Q 24.0-JXS22-10-10/15-T1-FU-WA-LF	Jauch Quartz	JXS22-WA	24MHz	±10ppm	10pF
Q 24.0-JXS22-12-10/15-T1-FU-WA-LF	Jauch Quartz	JXS22-WA	24MHz	±10ppm	12pF
Q 24.0-JXS22-8-10/15-T1-FU-WA-LF	Jauch Quartz	JXS22-WA	24MHz	±10ppm	8pF
Q 24.0-JXS22-9-10/15-T1-FU-WA-LF	Jauch Quartz	JXS22-WA	24MHz	±10ppm	9pF
Q 26.0-JXS22-10-10/15-T1-FU-WA-LF	Jauch Quartz	JXS22-WA	26MHz	±10ppm	10pF
Q 26.0-JXS22-12-10/15-T1-FU-WA-LF	Jauch Quartz	JXS22-WA	26MHz	±10ppm	12pF
Q 26.0-JXS22-8-10/15-T1-FU-WA-LF	Jauch Quartz	JXS22-WA	26MHz	±10ppm	8pF
Q 26.0-JXS22-9-10/15-T1-FU-WA-LF	Jauch Quartz	JXS22-WA	26MHz	±10ppm	9pF
Q 27.12-JXS22-10-10/15-T1-FU-WA-LF	Jauch Quartz	JXS22-WA	27.12MHz	±10ppm	10pF
Q 27.12-JXS22-12-10/15-T1-FU-WA-LF	Jauch Quartz	JXS22-WA	27.12MHz	±10ppm	12pF
Q 27.12-JXS22-8-10/15-T1-FU-WA-LF	Jauch Quartz	JXS22-WA	27.12MHz	±10ppm	8pF
Q 27.12-JXS22-9-10/15-T1-FU-WA-LF	Jauch Quartz	JXS22-WA	27.12MHz	±10ppm	9pF
Q 16.0-JXS22-10-10/15-T1-WA-LF	Jauch Quartz	JXS22-WA	16MHz	±10ppm	10pF
Q 16.0-JXS22-12-10/15-T1-WA-LF	Jauch Quartz	JXS22-WA	16MHz	±10ppm	12pF
Q 16.0-JXS22-8-10/15-T1-WA-LF	Jauch Quartz	JXS22-WA	16MHz	±10ppm	8pF
Q 16.0-JXS22-9-10/15-T1-WA-LF	Jauch Quartz	JXS22-WA	16MHz	±10ppm	9pF
Q 38.4-JXS22-10-10/10-FU-WA-LF	Jauch Quartz	JXS22-WA	38.4MHz	±10ppm	10pF
Q 38.4-JXS22-12-10/10-FU-WA-LF	Jauch Quartz	JXS22-WA	38.4MHz	±10ppm	12pF
Q 38.4-JXS22-8-10/10-FU-WA-LF	Jauch Quartz	JXS22-WA	38.4MHz	±10ppm	8pF
Q 38.4-JXS22-9-10/10-FU-WA-LF	Jauch Quartz	JXS22-WA	38.4MHz	±10ppm	9pF
