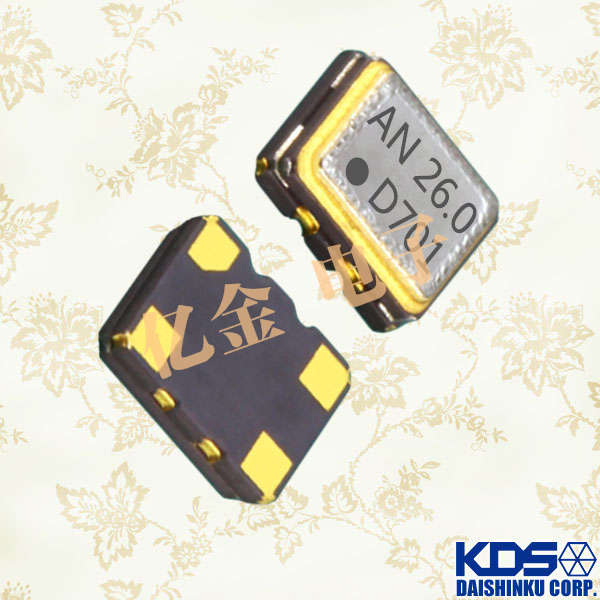

大真空TCXO晶振|DSB221SDN低抖動晶振|1XXB16367MAA
- 頻率：16.367667MHz
- 尺寸：2.5×2.0mm
- 應 用： 日本KDS晶振,大真空TCXO晶振,進口有源晶振,DSB221SDN晶振,低抖動晶振,1XXB16367MAA晶振,2520mm晶振,溫補晶體振蕩器,四腳貼片晶振,頻率16.367667MHz,電壓3.3V,工作溫度-40~85°C,頻率穩定性1.5ppm,小體積晶振,高精度晶...
-
-
大真空TCXO晶振|DSB221SDN低抖動晶振|1XXB16367MAA,日本KDS晶振,大真空TCXO晶振,進口有源晶振,DSB221SDN晶振,低抖動晶振,1XXB16367MAA晶振,2520mm晶振,溫補晶體振蕩器,四腳貼片晶振,頻率16.367667MHz,電壓3.3V,工作溫度-40~85°C,頻率穩定性1.5ppm,小體積晶振,高精度晶振,低耗能晶振,網絡終端晶振,光纖通道晶振,千兆以太網晶振,電腦主板晶振.
大真空TCXO晶振|DSB221SDN低抖動晶振|1XXB16367MAA規格表
| 型號 | DSB221SDN | |||||||||||||||
| 出力周波數 | 16.367667MHz | |||||||||||||||
| 電源電圧範囲 | +1.68 ~+3.5V | |||||||||||||||
| 電源電圧（Vcc） | +1.8V/+2.6V/+2.8V/+3.0V/+3.3V | |||||||||||||||
| 消費電流 | +1.5mA max.（f≦26MHz） | |||||||||||||||
| 出力電圧 | 0.8Vp-p min.（f≦52MHz）(クリップドサイン波/DC-coupled） | |||||||||||||||
| 出力負荷 | 10kΩ//10pF | |||||||||||||||
|
周波數安定度 常溫偏差 |
±1.5×10-6 max.（After 2 reflows） | |||||||||||||||
| 溫度特性 |
±0.5×10-6,±2.5×10-6 max./-30 °C+85℃ ±0.5×10-6,±2.5×10-6 max./-40°C +85℃（Option） |
|||||||||||||||
| 電源電圧特性 | ±0.2×10-6 max. （Vcc ±5%） | |||||||||||||||
| 負荷変動特性 | ±0.2×10-6 max. （10kΩ//10pF±10%） | |||||||||||||||
| 経時変化 | ±1.0×10-6 max./year | |||||||||||||||
| 起動時間 | 2.0ms max. | |||||||||||||||
|
位相ノイズ Offset 100Hz Offset 1kHz Offset 10kHz Offset 100kHz |
[f≦26MHz] -115dBc/Hz -130dBc/Hz -150dBc/Hz -155dBc/Hz |
|||||||||||||||
.jpg)

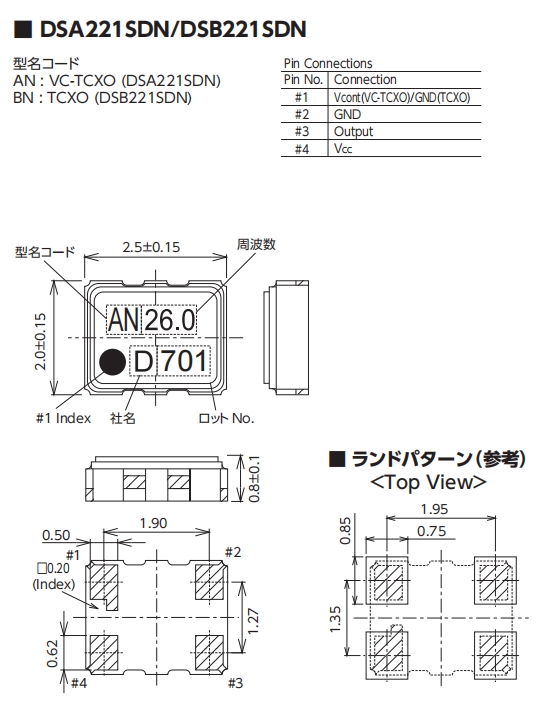

大真空TCXO晶振|DSB221SDN低抖動晶振|1XXB16367MAA尺寸圖
| 品牌 | 原廠代碼 | 型號 | 尺寸 | 頻率 | 負載 | 精度 |
| KDS晶振 | 1C240000AB0G | DSX321G | 3225mm | 40.000MHZ | 10PF | 10PPM |
| KDS晶振 | 1C241600CDAA | DSX321G | 3225mm | 41.6MHZ | 10PF | 30PPM |
| KDS晶振 | 1N227000BB0AK | DSX321G | 3225mm | 27.000MHZ | 11PF | 12PPM |
| KDS晶振 | 1N230000AB0C | DSX321G | 3225mm | 30.000MHZ | 10PF | 30PPM |
| KDS晶振 | 1N240000AB0J | DSX321G | 3225mm | 40.000MHZ | 15PF | 15PPM |
| KDS晶振 | 1N227000EE0L | DSX321G | 3225mm | 27.000MHZ | 9PF | 50ppm |
| KDS晶振 | 1N226000AA0L | DSX321G | 3225mm | 26.000MHZ | 7.5pf | 10ppm |
| KDS晶振 | 1N226000AA0G | DSX321G | 3225mm | 26.000MHZ | 12.5PF | 10ppm |
| KDS晶振 | 1N226000AA0E | DSX321G | 3225mm | 26.000MHZ | 8.1PF | 10PPM |
| KDS晶振 | 1C228322EE0D | DSX321G | 3225mm | 28.322MHZ | 10PF | 50PPM |
| KDS晶振 | 1C254000CC0C | DSX321G | 3225mm | 54.000MHZ | 10PF | 30PPM |
| KDS晶振 | 1C319200AA0A | DSX321G | 3225mm | 19.200MHZ | 8PF | 10PPM |
| KDS晶振 | 1C338400AA0B | DSX321G | 3225mm | 38.400MHZ | 10PF | 10PPM |
| KDS晶振 | 1C227000BBAH | DSX321G | 3225mm | 27.000MHZ | 11PF | 12ppm |
| KDS晶振 | 1C208000CE0H | DSX321G | 3225mm | 8.000MHZ | 10PF | 30PPM |
| KDS晶振 | 1N226000AA0AE | DSX321G | 3225mm | 26.000MHZ | 10PF | 10PPM |
| KDS晶振 | 1N215974EE0B | DSX321G | 3225mm | 15.9744MHZ | 8PF | 50PPM |
| KDS晶振 | 1C216000CZ0B | DSX321G | 3225mm | 16.000MHZ | 12PF | 30PPM |
| KDS晶振 | 1C213225CC0B | DSX321G | 3225mm | 13.225625MHZ | 12PF | 30PPM |
| KDS晶振 | 1N224265ZZ0A | DSX321G | 3225mm | 24.265MHZ | 12PF | 16PPM |
| KDS晶振 | 1C216000EC0A | DSX321G | 3225mm | 16.000MHZ | 10PF | 50PPM |
| KDS晶振 | 1C224000CE0AK | DSX321G | 3225mm | 24.000MHZ | 12PF | 30PPM |
| KDS晶振 | 1C224545CE0A | DSX321G | 3225mm | 24.54545MHZ | 8PF | 30PPM |
| KDS晶振 | 1C225000BE0M | DSX321G | 3225mm | 25.000MHZ | 10PF | 20PPM |
| KDS晶振 | 1C232000AB0V | DSX321G | 3225mm | 32.000MHZ | 6PF | 10PPM |
| KDS晶振 | 1N232000AA0R | DSX321G | 3225mm | 32.000MHZ | 7.3PF | 10PPM |
| KDS晶振 | 1C216000CC0K | DSX321G | 3225mm | 16.000MHZ | 8PF | 30PPM |
| KDS晶振 | 1C224000EZ0B | DSX321G | 3225mm | 24.000MHZ | 8PF | 50PPM |
| KDS晶振 | 1N227000BB0N | DSX321G | 3225mm | 27.000MHZ | 11PF | 12PPM |
| KDS晶振 | 1C220000AB0B | DSX321G | 3225mm | 20.000MHZ | 10PF | 10PPM |
| KDS晶振 | 1C236864BD0A | DSX321G | 3225mm | 36.864MHZ | 8PF | 15PPM |
| KDS晶振 | 1N225400BC0D | DSX321G | 3225mm | 25.4MHZ | 8PF | 20PPM |
| KDS晶振 | 1N227000CC0BT | DSX321G | 3225mm | 27.000MHZ | 8PF | 30PPM |
| KDS晶振 | 1N233000EE0D | DSX321G | 3225mm | 33.000MHZ | 8PF | 50PPM |
| KDS晶振 | 1N233333BC0G | DSX321G | 3225mm | 33.333MHZ | 8PF | 20PPM |
| KDS晶振 | 1C316000AB0D | DSX321G | 3225mm | 16.000MHZ | 8.7PF | 8PPM |
| KDS晶振 | 1C211289EE0C | DSX321G | 3225mm | 11.2896MHZ | 20PF | 50PPM |
| KDS晶振 | 1C211600BB0A | DSX321G | 3225mm | 11.6MHZ | 12PF | 20PPM |
| KDS晶振 | 1C216000EE0B | DSX321G | 3225mm | 16.000MHZ | 12PF | 50PPM |
| KDS晶振 | 1C220000CK0K | DSX321G | 3225mm | 20.000MHZ | 12PF | 30PPM |
| KDS晶振 | 1C248000EE0BM | DSX321G | 3225mm | 48.000MHZ | 8PF | 50PPM |
| KDS晶振 | 1B326000BC0A | DSX321G | 3225mm | 26.000MHZ | 10.3PF | 15PPM |
| KDS晶振 | 1C316000AB0E | DSX321G | 3225mm | 16.000MHZ | 8.7PF | 8PPM |
| KDS晶振 | 1N226000AA0D | DSX321G | 3225mm | 26.000MHZ | 8.8PF | 10PPM |
| KDS晶振 | 1C208000EE0BL | DSX321G | 3225mm | 8.000MHZ | 12PF | 20PPM |
| KDS晶振 | 1C208000BC0R | DSX321G | 3225mm | 8.000MHZ | 12PF | 20PPM |
