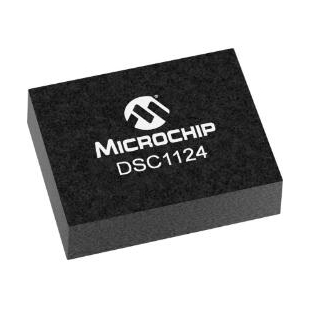

Microchip品牌-DSC1124DE1-125.0000-6G以太網晶振
- 頻率：125MHz
- 尺寸：2.5×2.0mm
- 應 用： Microchip晶振,DSC1124進口有源晶振,DSC1124DE1-125.0000晶振,石英晶體振蕩器,2520mm晶振,HCSL差分輸出晶振,六腳貼片晶振,SMD晶振,頻率125MHz,電壓3.3V,工作溫度-20~70°C,頻率穩定性50ppm,輕薄小晶振,高可靠性晶振,低...
-
-
Microchip品牌-DSC1124DE1-125.0000-6G以太網晶振,Microchip晶振,DSC1124進口有源晶振,DSC1124DE1-125.0000晶振,石英晶體振蕩器,2520mm晶振,HCSL差分輸出晶振,六腳貼片晶振,SMD晶振,頻率125MHz,電壓3.3V,工作溫度-20~70°C,頻率穩定性50ppm,輕薄小晶振,高可靠性晶振,低相位抖動晶振,6G以太網設備晶振,通信設備晶振,無線局域網晶振,家用網關晶振.

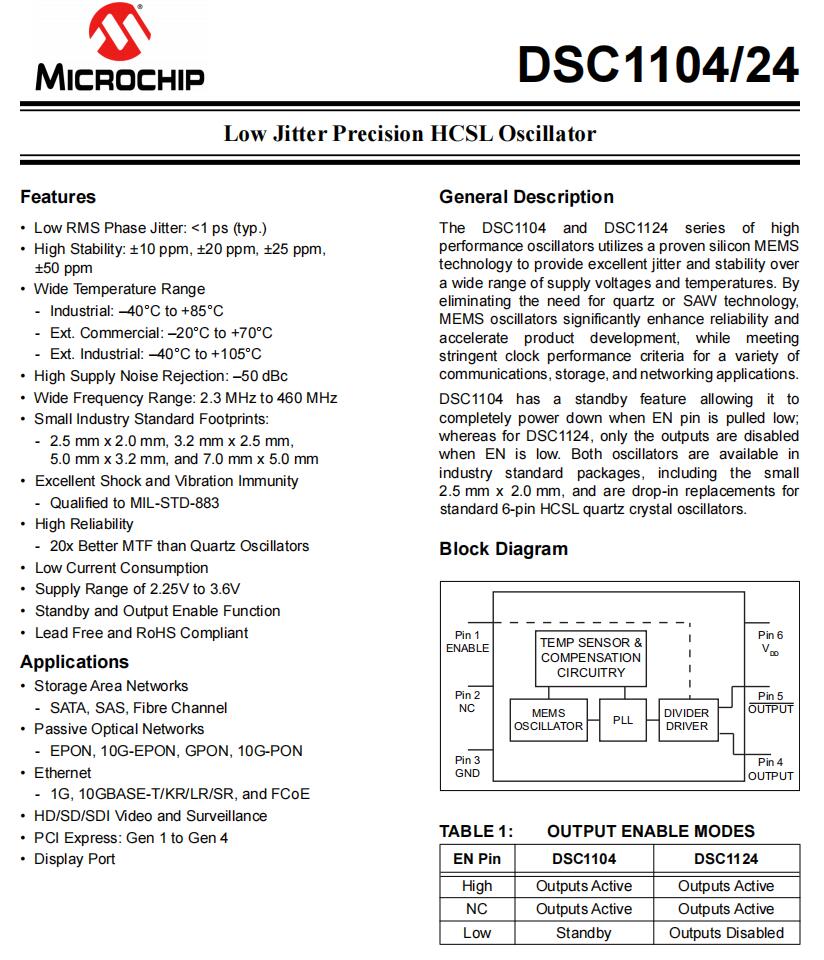

Microchip品牌-DSC1124DE1-125.0000-6G以太網晶振特點：
•低RMS相位抖動:<1 ps(類型)
•高穩定性:±10 ppm，±20 ppm，±25 ppm，±50 ppm
•寬溫度范圍:
-Ext.工業:- 40°C至+105°C
-工業:- 40℃~ +85℃
-商用:- 20℃~ +70℃
•高電源噪聲抑制:-50 dBc
•寬頻率范圍:2.3 MHz至460 MHz
•小的行業標準足跡
- 2.5 mm × 2.0 mm, 3.2 mm × 2.5 mm, 5.0 mmX 3.2 mm和7.0 mm X 5.0 mm
•卓越的抗沖擊和抗振動能力
-符合MIL-STD-883標準
•高可靠性
- MTF比石英振蕩器好20倍
•低電流消耗
•電源范圍2.25至3.63V
•待機和輸出使能功能
•無鉛，符合RoHS標準
Microchip品牌-DSC1124DE1-125.0000-6G以太網晶振規格表
| 項目 | 規格說明 | 條件 |
| 額定頻率 | 125MHz | 請聯系我們以便獲取其它可用頻率的相關信息 |
| 電源電壓 | 3.3V | |
| 儲存溫度 | -55℃~+150℃ | 裸存 |
| 工作溫度 | -20℃~ +70℃ | |
| 頻率穩定度 | ±50ppm | 包括由初始公差、溫度和電源電壓引起的頻率變化 |
| 老化 | ±5ppm | 1 year @ +25°C |
| 電流 | 42mA Max |
Output Enabled, RL = 50Ω
|
| 負載 | 15pf | |
| 輸出邏輯電平高（VOH） | 0.725V Min |
Output logic high, RL = 50Ω
|
| 輸出邏輯電平低（VOL） | 0.1V Max |
Output logic low
|
| 輸出上升下降時間 | 200ps Max |
20%/80% RL = 50Ω,CL=15pF |
| 占空比 | 48%~52% | |
| 輸入邏輯電平高（VIH） | 0.75×VDD Min |
Input logic high
|
| 輸入邏輯電平低（VIL） | 0.25x VDD Max |
Input logic low
|
| 起始時間 | 5 ms Max | T = +25°C |
| 周期抖動 | 2.5psRMS |
-
|
| 集成相位噪聲 |
2psRMS
|
12 kHz to 20 MHz @ 156.25 MHz
|
.jpg)

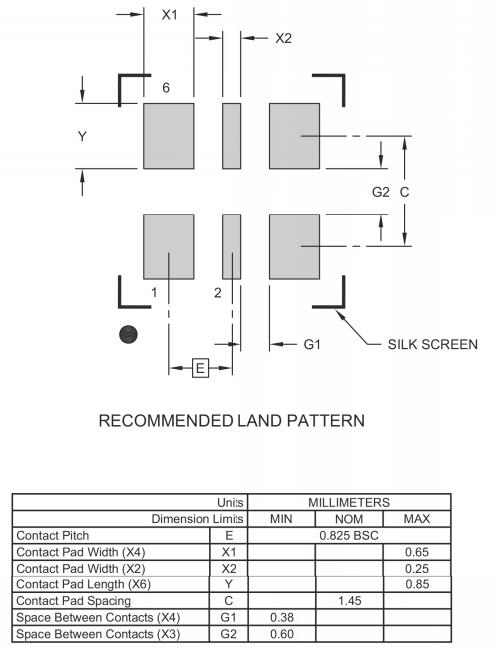

Microchip品牌-DSC1124DE1-125.0000-6G以太網晶振尺寸圖
| 原廠代碼 | 晶振品牌 | 型號 | 頻率 | 電壓 | 尺寸 |
| DSC1124CI5-100.0000 | Microchip Technology | DSC1124 | 100MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1104BE2-100.0000 | Microchip Technology | DSC1104 | 100MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1124CI2-156.2500 | Microchip Technology | DSC1124 | 156.25MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1124CI5-100.0000T | Microchip Technology | DSC1124 | 100MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1124CI5-100.0000T | Microchip Technology | DSC1124 | 100MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1124CI5-100.0000T | Microchip Technology | DSC1124 | 100MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1104CI5-125.0000 | Microchip Technology | DSC1104 | 125MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1124CI1-156.2500TA | Microchip Technology | DSC1124 | 156.25MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1124CI1-156.2500TA | Microchip Technology | DSC1124 | 156.25MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1124CI1-156.2500TA | Microchip Technology | DSC1124 | 156.25MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1124CE1-010.2400 | Microchip Technology | DSC1124 | 10.24MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1124BI1-100.0000 | Microchip Technology | DSC1124 | 100MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1124NE1-100.0000 | Microchip Technology | DSC1124 | 100MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1124BI2-100.0000 | Microchip Technology | DSC1124 | 100MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1124CI2-100.0000 | Microchip Technology | DSC1124 | 100MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1124CI1-156.2500 | Microchip Technology | DSC1124 | 156.25MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1124BI2-125.0000 | Microchip Technology | DSC1124 | 125MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1124CE1-010.2400T | Microchip Technology | DSC1124 | 10.24MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1124BE2-100.0000T | Microchip Technology | DSC1124 | 100MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1124BI1-100.0000T | Microchip Technology | DSC1124 | 100MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1124BE2-100.0000 | Microchip Technology | DSC1124 | 100MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1124CI1-156.2500T | Microchip Technology | DSC1124 | 156.25MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1104BE2-100.0000T | Microchip Technology | DSC1104 | 100MHz | 2.25 V ~ 3.6V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1104DI1-100.0000T | Microchip Technology | DSC1104 | 100MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1104DI1-156.2500T | Microchip Technology | DSC1104 | 156.25MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1104DI1-100.0000 | Microchip Technology | DSC1104 | 100MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1104DI1-156.2500 | Microchip Technology | DSC1104 | 156.25MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1124NI1-100.0000 | Microchip Technology | DSC1124 | 100MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1124NI1-100.0000T | Microchip Technology | DSC1124 | 100MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1124BI2-100.0000T | Microchip Technology | DSC1124 | 100MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1124BI2-125.0000T | Microchip Technology | DSC1124 | 125MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1124BI2-156.2500T | Microchip Technology | DSC1124 | 156.25MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1124CI2-100.0000T | Microchip Technology | DSC1124 | 100MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1124NE1-100.0000T | Microchip Technology | DSC1124 | 100MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1124CI2-200.0000 | Microchip Technology | DSC1124 | 200MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1124NI1-156.2500 | Microchip Technology | DSC1124 | 156.25MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1124NI1-156.2500T | Microchip Technology | DSC1124 | 156.25MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1104AI2-100.0000 | Microchip Technology | DSC1104 | 100MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1124CI2-156.2500T | Microchip Technology | DSC1124 | 156.25MHz | 2.25 V ~ 3.6V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1124CI5-156.2500T | Microchip Technology | DSC1124 | 156.25MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1124CI5-156.2500 | Microchip Technology | DSC1124 | 156.25MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1104CI5-125.0000T | Microchip Technology | DSC1104 | 125MHz | 2.25 V ~ 3.6V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1104BI5-100.0000T | Microchip Technology | DSC1104 | 100MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1104BI5-100.0000 | Microchip Technology | DSC1104 | 100MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1124CL2-100.0000T | Microchip Technology | DSC1124 | 100MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1124CL2-200.0000T | Microchip Technology | DSC1124 | 200MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1124CL2-100.0000 | Microchip Technology | DSC1124 | 100MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1124CL2-200.0000 | Microchip Technology | DSC1124 | 200MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1124BI5-100.0000T | Microchip Technology | DSC1124 | 100MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1124BI5-100.0000 | Microchip Technology | DSC1124 | 100MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1124CE1-156.2500 | Microchip Technology | DSC1124 | 156.25MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1124NL2-100.0000T | Microchip Technology | DSC1124 | 100MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1104NI2-100.0000 | Microchip Technology | DSC1104 | 100MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1104NI2-100.0000T | Microchip Technology | DSC1104 | 100MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1104DL5-040.0000 | Microchip Technology | DSC1104 | 40MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1104DL5-040.0000T | Microchip Technology | DSC1104 | 40MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1124NL2-100.0000 | Microchip Technology | DSC1124 | 100MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1124AI1-100.0000T | Microchip Technology | DSC1124 | 100MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1124AL2-100.0000T | Microchip Technology | DSC1124 | 100MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1124CI2-048.0000T | Microchip Technology | DSC1124 | 48MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1124CI2-200.0000T | Microchip Technology | DSC1124 | 200MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1104CE1-100.0000 | Microchip Technology | DSC1104 | 100MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1124AI1-100.0000 | Microchip Technology | DSC1124 | 100MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1124AL2-100.0000 | Microchip Technology | DSC1124 | 100MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1124BI2-156.2500 | Microchip Technology | DSC1124 | 156.25MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1124DI2-100.0050 | Microchip Technology | DSC1124 | 100.005MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1104DE1-100.0000T | Microchip Technology | DSC1104 | 100MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1104DE1-125.0000T | Microchip Technology | DSC1104 | 125MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1124AI2-100.0000T | Microchip Technology | DSC1124 | 100MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1124BE1-100.0000T | Microchip Technology | DSC1124 | 100MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1124BE1-125.0000T | Microchip Technology | DSC1124 | 125MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1124CE1-050.0000T | Microchip Technology | DSC1124 | 50MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1124CE1-100.0000T | Microchip Technology | DSC1124 | 100MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1124CI5-156.2422T | Microchip Technology | DSC1124 | 156.2422MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1124CI5-156.2578T | Microchip Technology | DSC1124 | 156.2578MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1124DE1-100.0000T | Microchip Technology | DSC1124 | 100MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1124DE1-125.0000T | Microchip Technology | DSC1124 | 125MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1104DE1-100.0000 | Microchip Technology | DSC1104 | 100MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1104DE1-125.0000 | Microchip Technology | DSC1104 | 125MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1124AI2-100.0000 | Microchip Technology | DSC1124 | 100MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1124BE1-100.0000 | Microchip Technology | DSC1124 | 100MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1124BE1-125.0000 | Microchip Technology | DSC1124 | 125MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1124CE1-050.0000 | Microchip Technology | DSC1124 | 50MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1124CE1-100.0000 | Microchip Technology | DSC1124 | 100MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1124CI5-156.2422 | Microchip Technology | DSC1124 | 156.2422MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1124CI5-156.2578 | Microchip Technology | DSC1124 | 156.2578MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1124DE1-100.0000 | Microchip Technology | DSC1124 | 100MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1124DE1-125.0000 | Microchip Technology | DSC1124 | 125MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1104BE1-156.2500 | Microchip Technology | DSC1104 | 156.25MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1104BE1-156.2500T | Microchip Technology | DSC1104 | 156.25MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1104CI2-100.0000 | Microchip Technology | DSC1104 | 100MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1104CI2-100.0000T | Microchip Technology | DSC1104 | 100MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1104CI5-100.0000 | Microchip Technology | DSC1104 | 100MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1104CI5-100.0000T | Microchip Technology | DSC1104 | 100MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1104DI5-147.4560 | Microchip Technology | DSC1104 | 147.456MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1104DI5-147.4560T | Microchip Technology | DSC1104 | 147.456MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1124BE1-156.2500 | Microchip Technology | DSC1124 | 156.25MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1124BE1-156.2500T | Microchip Technology | DSC1124 | 156.25MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1124BI5-148.3516 | Microchip Technology | DSC1124 | 148.3516MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1124BI5-148.3516T | Microchip Technology | DSC1124 | 148.3516MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1124BI5-148.5000 | Microchip Technology | DSC1124 | 148.5MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1124BI5-148.5000T | Microchip Technology | DSC1124 | 148.5MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
