首頁歐美晶振 MtronPTI晶振M12532DG 24.000000,3225mm諧振器,MtronPTI藍牙晶振

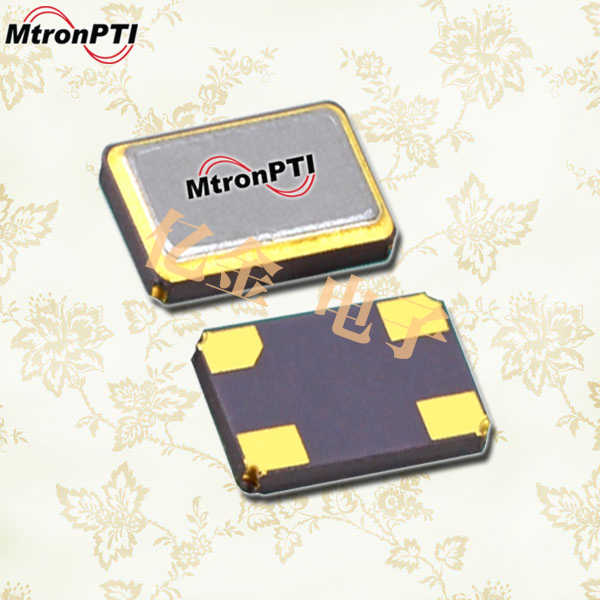

M12532DG 24.000000,3225mm諧振器,MtronPTI藍牙晶振

頻率：24MHz
尺寸：3.2x2.5mm
應　用： M12532DG24.000000,3225mm諧振器,MtronPTI藍牙晶振,四腳貼片晶振，美國進口晶振，MtronPTI晶振，麥特倫皮晶振，型號：M1253系列晶振，編碼為：M12532DG24.000000，頻率：24MHz，頻率穩定性：20ppm，頻率容差：10ppm，...

M12532DG 24.000000,3225mm諧振器,MtronPTI藍牙晶振,四腳貼片晶振，美國進口晶振，MtronPTI晶振，麥特倫皮晶振，型號：M1253系列晶振，編碼為：M12532DG 24.000000，頻率：24MHz，頻率穩定性：±20ppm，頻率容差：±10ppm，負載電容：18pF，工作溫度范圍：-40℃至+85℃，小體積晶振尺寸：3.2x2.5mm封裝，四腳貼片晶振，無源晶振，3225石英晶振，石英晶體諧振器，SMD晶振，具有超小型，輕薄型，高品質晶振，耐熱及耐環境特點。應用于：手持式電子設備，PDA、GPS、MP3，便攜式儀器，PCMCIA卡，藍牙等應用。

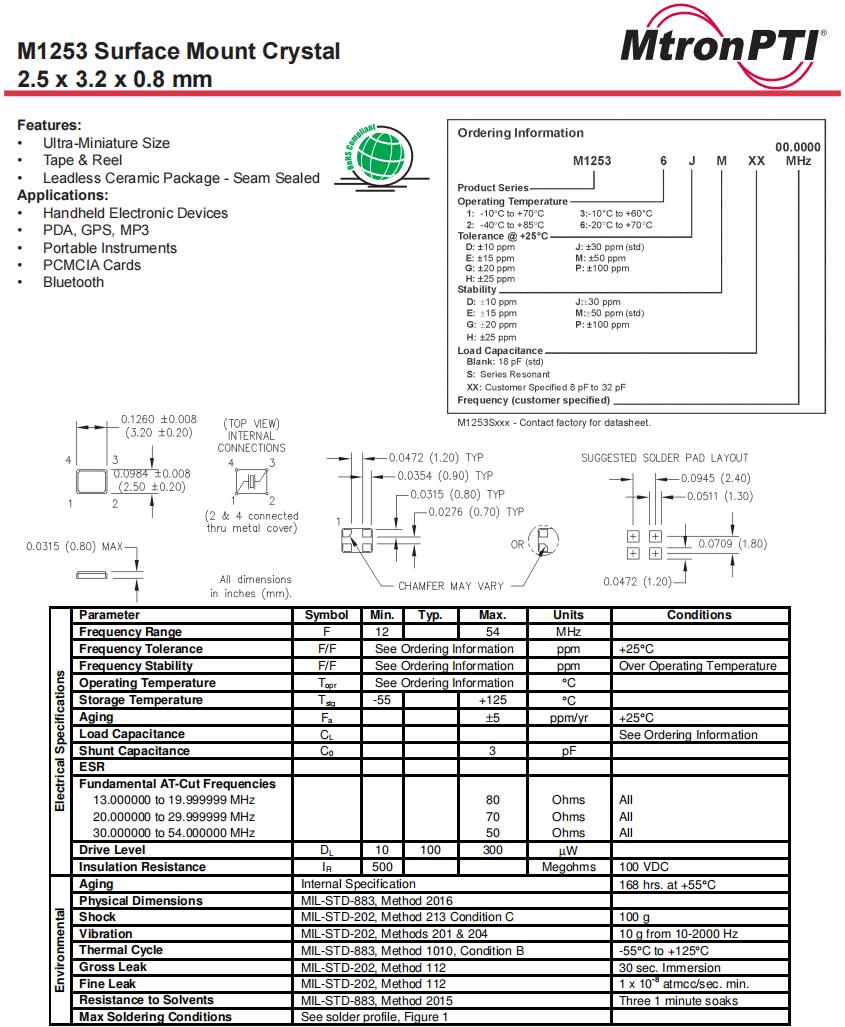

M12532DG 24.000000,3225mm諧振器,MtronPTI藍牙晶振,四腳貼片晶振,規格表

品牌	MtronPTI麥特倫皮晶振
型號	M1253
物料編碼	M12532DG 24.000000
頻率	24MHz
頻率穩定性	±20ppm
頻率容差	±10ppm
負載電容	18pF
工作溫度	-40℃至+85℃
尺寸	3.2x2.5mm

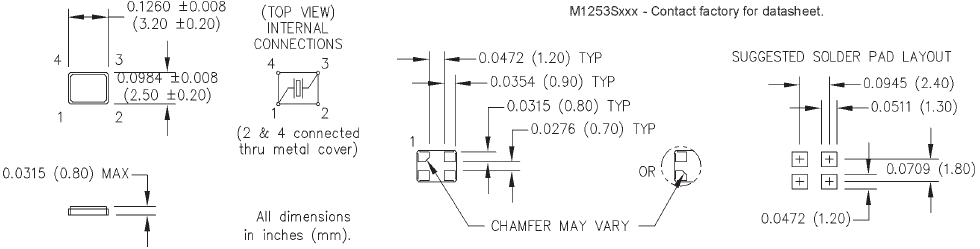

M12532DG 24.000000,3225mm諧振器,MtronPTI藍牙晶振,四腳貼片晶振,尺寸圖

產品編碼	進口晶振	頻率	包裝	頻率穩定性
M12531DD 25.000000	M1253	25MHz	2.5 x 3.2 mm	±10 ppm
M12531DD20 25.000000	M1253	25MHz	2.5 x 3.2 mm	±10 ppm
M12531JJ12 50.000000	M1253	50MHz	2.5 x 3.2 mm	±30 ppm
M12531JM12 12.000000	M1253	12MHz	2.5 x 3.2 mm	±50 ppm
M12531JM12 25.000000	M1253	25MHz	2.5 x 3.2 mm	±50 ppm
M12531JM20 24.000000	M1253	24MHz	2.5 x 3.2 mm	±50 ppm
M12531MM16 30.000000	M1253	30MHz	2.5 x 3.2 mm	±50 ppm
M12532DE09 24.000000	M1253	24MHz	2.5 x 3.2 mm	±15 ppm
M12532DG 24.000000	M1253	24MHz	2.5 x 3.2 mm	±20 ppm
M12532DG08 25.000000	M1253	25MHz	2.5 x 3.2 mm	±20 ppm
M12532DG12 19.200000	M1253	19.2MHz	2.5 x 3.2 mm	±20 ppm
M12532DG13 24.000000	M1253	24MHz	2.5 x 3.2 mm	±20 ppm
M12532DG15 20.000000	M1253	20MHz	2.5 x 3.2 mm	±20 ppm
M12532DG16 14.318180	M1253	14.3182MHz	2.5 x 3.2 mm	±20 ppm
M12532DG16 24.000000	M1253	24MHz	2.5 x 3.2 mm	±20 ppm
M12532DG16 25.000000	M1253	15.36MHz	2.5 x 3.2 mm	±20 ppm
M12532DG16 50.000000	M1253	50MHz	2.5 x 3.2 mm	±20 ppm
M12532DG22 30.000000	M1253	30MHz	2.5 x 3.2 mm	±20 ppm
M12532GG 25.000000	M1253	25MHz	2.5 x 3.2 mm	±20 ppm
M12532GG 50.000000	M1253	50MHz	2.5 x 3.2 mm	±20 ppm
M12532GJ 24.000000	M1253	24MHz	2.5 x 3.2 mm	±30 ppm
M12532GJ 25.000000	M1253	25MHz	2.5 x 3.2 mm	±30 ppm
M12532HH 14.318180	M1253	14.3182MHz	2.5 x 3.2 mm	±25 ppm
M12532HH 16.000000	M1253	16MHz	2.5 x 3.2 mm	±25 ppm
M12532HH 25.000000	M1253	25MHz	2.5 x 3.2 mm	±25 ppm
M12532HH 27.000000	無源晶振	27MHz	2.5 x 3.2 mm	±25 ppm
M12532HH 30.000000	M1253	30MHz	2.5 x 3.2 mm	±25 ppm
M12532HH 50.000000	M1253	50MHz	2.5 x 3.2 mm	±25 ppm
M12532JJ 25.000000	M1253	25MHz	2.5 x 3.2 mm	±30 ppm
M12532JJ 27.000000	M1253	27MHz	2.5 x 3.2 mm	±30 ppm
M12532JJ08 16.384000	M1253	16.384MHz	2.5 x 3.2 mm	±30 ppm
M12532JJ08 25.000000	M1253	25MHz	2.5 x 3.2 mm	±30 ppm
M12532JJ09 50.000000	M1253	50MHz	2.5 x 3.2 mm	±30 ppm
M12532JM 15.360000	M1253	15.36MHz	2.5 x 3.2 mm	±50 ppm
M12532JM 27.000000	M1253	27MHz	2.5 x 3.2 mm	±50 ppm
M12532JM 29.491200	M1253	29.4912MHz	2.5 x 3.2 mm	±50 ppm
M12532JM 40.000000	M1253	40MHz	2.5 x 3.2 mm	±50 ppm
M12532JM20 25.000000	M1253	25MHz	2.5 x 3.2 mm	±50 ppm
M12536GJ 25.000000	M1253	25MHz	2.5 x 3.2 mm	±30 ppm
M12536JM 24.000000	M1253	24MHz	2.5 x 3.2 mm	±50 ppm
M12536JM 25.000000	M1253	25MHz	2.5 x 3.2 mm	±50 ppm
M12536JM 50.000000	M1253	50MHz	2.5 x 3.2 mm	±50 ppm
M1253S072 25.000000	M1253	25MHz	2.5 x 3.2 mm	±20 ppm
M1253S107 52.000000	M1253	52MHz	2.5 x 3.2 mm	±15 ppm
M1253S108 24.000000	M1253	24MHz	2.5 x 3.2 mm	±50 ppm
M1253S116 16.000000	M1253	16MHz	2.5 x 3.2 mm	±10 ppm, ±15 ppm
M1253S162 24.000000	M1253	24MHz	2.5 x 3.2 mm	±15 ppm
M1253S164 48.000000	M1253	48MHz	2.5 x 3.2 mm	±10 ppm
M1253S204 25.000000	M1253	25MHz	2.5 x 3.2 mm	±100 ppm
M1253S207 20.736000	M1253	20.736MHz	2.5 x 3.2 mm	±10 ppm
M1253S208 26.000000	M1253	26MHz	2.5 x 3.2 mm	±9 ppm
M1253S211 25.000000	M1253	25MHz	2.5 x 3.2 mm	±20 ppm
M1253S218 48.000000	M1253	48MHz	2.5 x 3.2 mm	±30 ppm
M1253S219 25.000000	M1253	25MHz	2.5 x 3.2 mm	±20 ppm
M1253S220 48.000000	M1253	48MHz	2.5 x 3.2 mm	±15 ppm
M1253S224 32.000000	M1253	32MHz	2.5 x 3.2 mm	±20 ppm
M1253S225 26.000000	M1253	26MHz	2.5 x 3.2 mm	±10 ppm
M1253S226 12.000000	M1253	12MHz	2.5 x 3.2 mm	±20 ppm
M1253S227 25.000000	M1253	25MHz	2.5 x 3.2 mm	±25 ppm
M1253S229 48.000000	M1253	48MHz	2.5 x 3.2 mm	±30 ppm
M1253S230 25.000000	M1253	25MHz	2.5 x 3.2 mm	±30 ppm
