首頁進口晶振百利通亞陶晶振DIODES-FL1000008-10MHz-20PPM-12PF--40°C~85°C

DIODES-FL1000008-10MHz-20PPM-12PF--40°C~85°C

頻率：10MHz
尺寸：3225mm

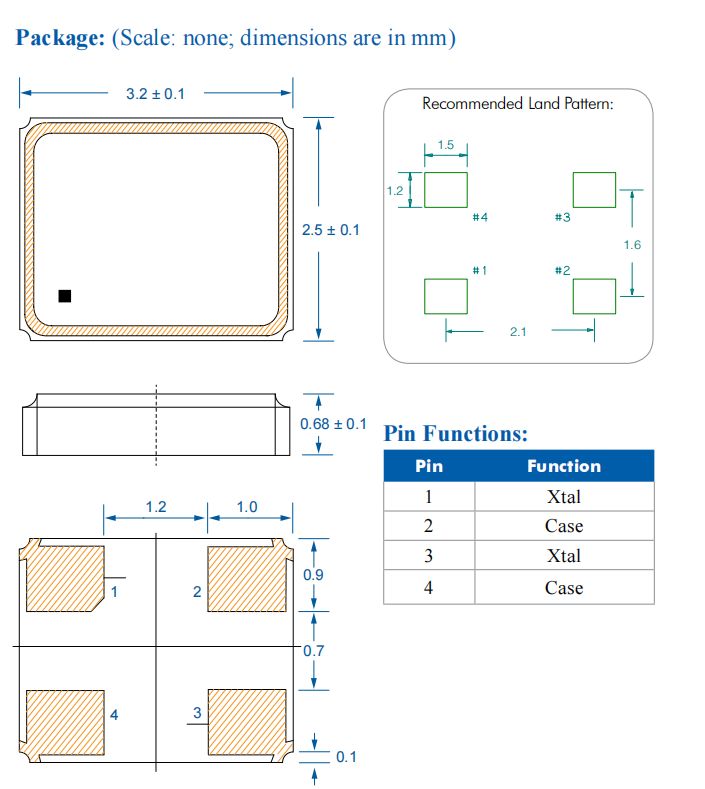

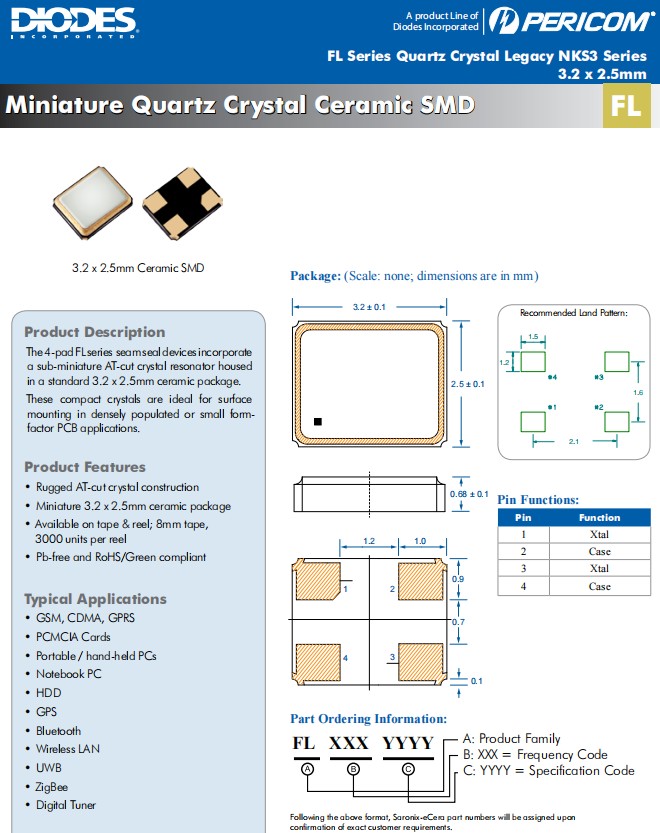

應　用： DIODES-FL1000008-10MHz-20PPM-12PF--40C~85C，臺產SMD晶振，4墊FL系列接縫密封裝置包含一個亞微型at切割晶體諧振器，封裝在一個標準的3.2x2.5mm陶瓷封裝中。這些緊湊的晶體是理想的表面安裝在密集或小形狀因子PCB應用...

DIODES-FL1000008-10MHz-20PPM-12PF--40°C ~ 85°C，臺產SMD晶振，4墊FL系列接縫密封裝置包含一個亞微型at切割晶體諧振器，封裝在一個標準的3.2 x 2.5mm陶瓷封裝中。這些緊湊的晶體是理想的表面安裝在密集或小形狀因子PCB應用。堅固的AT-cut晶體結構微型3.2x2.5毫米陶瓷包裝可在帶和卷；8毫米帶，3000單位每卷無pb和RoHS/綠色兼容。GSM，CDMA，GPR，Spcmcia卡，便攜式/手持個人電腦，筆記本電腦，硬盤，GPS，藍牙，無線局域網，UWB， ZigBee，數字調諧器。

DIODES-FL1000008-10MHz-20PPM-12PF--40°C ~ 85°C

Parameters

Minimum

Typical

Maximum

Units

頻率

10.000

MHz

操作模式

Fundamental

工作溫度

- 40

+85

ºC

儲存溫度

--40

+125

ºC

頻率容差 @+25°C

--20

+20

ppm

工作溫度下的頻率穩定性 ( ref. to +25°C)

--20

+20

ppm

并聯電容 (C0)

負載電容 (CL)

8 ~ 32或系列共振

驅動電平

100

µW

老化

--5

ppm

DIODES-FL1000008-10MHz-20PPM-12PF--40°C ~ 85°C

Diodes零件編號	制造商	系列	頻率	頻率穩定性	頻率容差	負載電容
FL2500123Z	Diodes晶振	FL	25 MHz	±50ppm	±30ppm	20pF
FL1200112	Diodes晶振	FL	12 MHz	±30ppm	±30ppm	18pF
FL2500316Z	Diodes晶振	FL	25 MHz	±20ppm	±20ppm	20pF
FL2400022	Diodes晶振	FL	24 MHz	±10ppm	±10ppm	10pF
FL2500133	Diodes晶振	FL	25 MHz	±20ppm	±20ppm	18pF
FL4000157Z	Diodes晶振	FL	40 MHz	±10ppm	±7ppm	15pF
FL2500213Z	Diodes晶振	FL	25 MHz	±20ppm	±20ppm	20pF
FL2400097	Diodes晶振	FL	24 MHz	±15ppm	±10ppm	9pF
FL1600087	Diodes晶振	FL	16 MHz	±15ppm	±15ppm	20pF
FL2000038	Diodes晶振	FL	20 MHz	±10ppm	±10ppm	16pF
FL2500283Z	Diodes晶振	FL	25 MHz	±30ppm	±30ppm	20pF
FL2400135Z	Diodes晶振	FL	24 MHz	±30ppm	±30ppm	18pF
FL3840006	Diodes晶振	FL	38.4 MHz	±10ppm	±10ppm	10pF
FL2000059	Diodes晶振	FL	20 MHz	±10ppm	±10ppm	9pF
FL2500047	Diodes晶振	FL	25 MHz	±20ppm	±20ppm	18pF
FL4000205Z	Diodes晶振	FL	40 MHz	±10ppm	±10ppm	10pF
FL1920031	Diodes晶振	FL	19.2 MHz	±10ppm	±10ppm	8.5pF
FL2700102Z	Diodes晶振	FL	27 MHz	±30ppm	±30ppm	12pF
FL400WFQA1	Diodes晶振	FL	40 MHz	±10ppm	±10ppm	7pF
FL260WFMR1	Diodes晶振	FL	26 MHz	±10ppm	±10ppm	9pF
FL1200060	Diodes晶振	FL	12 MHz	±30ppm	±30ppm	18pF
FL2400041	Diodes晶振	FL	24 MHz	±30ppm	±30ppm	18pF
FL1600080	Diodes晶振	FL	16 MHz	±10ppm	±10ppm	10pF
FL3200022	Diodes晶振	FL	32 MHz	±10ppm	±10ppm	16pF
FL2400067	Diodes晶振	FL	24 MHz	±20ppm	±20ppm	18pF
FL2500137Z	Diodes晶振	FL	25 MHz	±30ppm	±30ppm	20pF
FL1600043	Diodes晶振	FL	16 MHz	±10ppm	±10ppm	9pF
FL1200135	Diodes晶振	FL	12 MHz	±50ppm	±30ppm	18pF
FL4800063Z	Diodes晶振	FL	48 MHz	±15ppm	±10ppm	8pF
FL1000002	Diodes晶振	FL	10 MHz	±25ppm	±25ppm	12pF
FL2400072	Diodes晶振	FL	24 MHz	±30ppm	±30ppm	18pF
FL2000132Z	Diodes晶振	FL	20 MHz	±30ppm	±30ppm	12pF
FL2600177Z	Diodes晶振	FL	26 MHz	±20ppm	±10ppm	10pF
FL3840015Z	Diodes晶振	FL	38.4 MHz	±10ppm	±10ppm	10pF
FL2400081	Diodes晶振	FL	24 MHz	±30ppm	±30ppm	18pF
FL1200138	Diodes晶振	FL	12 MHz	±50ppm	±15ppm	8pF
FL400WFMR1	Diodes晶振	FL	40 MHz	±10ppm	±10ppm	10pF
FL3200037	Diodes晶振	FL	32 MHz	±15ppm	±15ppm	8pF
FL3000027	Diodes晶振	FL	30 MHz	±10ppm	±10ppm	20pF
FL1600044	Diodes晶振	FL	16 MHz	±15ppm	±15ppm	8pF
FL2500279Z	Diodes晶振	FL	25 MHz	±30ppm	±30ppm	12pF
FL3200038Z	Diodes晶振	FL	32 MHz	±10ppm	±10ppm	10pF
FL1220027Q	Diodes晶振	FL	12.288 MHz	±20ppm	±20ppm	12pF
FL0800021	Diodes晶振	FL	8 MHz	±30ppm	±20ppm	8pF
FL1000008	Diodes晶振	FL	10 MHz	±20ppm	±20ppm	12pF
FL1200055	Diodes晶振	FL	12 MHz	±20ppm	±20ppm	8pF
FL1200171	Diodes晶振	FL	12 MHz	±10ppm	±10ppm	10pF
FL1200231	Diodes晶振	FL	12 MHz	±20ppm	±10ppm	15pF
FL1200232	Diodes晶振	FL	12 MHz	±20ppm	±10ppm	10pF
FL1220019	Diodes晶振	FL	12.288 MHz	±20ppm	±20ppm	18pF
FL1430041	Diodes晶振	FL	14.31818 MHz	±20ppm	±20ppm	18pF
FL1600175	Diodes晶振	FL	16 MHz	±15ppm	±10ppm	12pF
FL2000171	Diodes晶振	FL	20 MHz	±20ppm	±10ppm	12pF
FL2000182	Diodes晶振	FL	20 MHz	±20ppm	±10ppm	18pF
FL2400240	Diodes晶振	FL	24 MHz	±25ppm	±10ppm	12pF
FL2450059	Diodes晶振	FL	24.576 MHz	±20ppm	±10ppm	12pF
FL2450063	Diodes晶振	FL	24.576 MHz	±15ppm	±10ppm	15pF
FL2500284	Diodes晶振	FL	25 MHz	±30ppm	±30ppm	18pF
FL2500292	Diodes晶振	FL	25 MHz	±20ppm	±20ppm	12pF
FL2500437	Diodes晶振	FL	25 MHz	±30ppm	±20ppm	18pF
FL2500445	Diodes晶振	FL	25 MHz	±20ppm	±20ppm	20pF
FL2500495	Diodes晶振	FL	25 MHz	±15ppm	±10ppm	12pF
FL2600121	Diodes晶振	FL	26 MHz	±15ppm	±10ppm	18pF
FL2600224	Diodes晶振	FL	26 MHz	±30ppm	±10ppm	9pF
FL2700144	Diodes晶振	FL	27 MHz	±20ppm	±20ppm	10pF
FL3840027	Diodes晶振	FL	38.4 MHz	±20ppm	±20ppm	12pF
FL3840035	Diodes晶振	FL	38.4 MHz	±10ppm	±10ppm	9pF
FL3840036	Diodes晶振	FL	38.4 MHz	±10ppm	±10ppm	9pF
FL3840037	Diodes晶振	FL	38.4 MHz	±10ppm	±10ppm	10pF
FL4000296	Diodes晶振	FL	40 MHz	±20ppm	±10ppm	15pF
FL4000300	Diodes晶振	FL	40 MHz	±30ppm	±10ppm	12pF
FL4000303	Diodes晶振	FL	40 MHz	±25ppm	±10ppm	12pF
FL1200217	Diodes晶振	FL	12 MHz	±20ppm	±10ppm	12pF
FL1840006	Diodes晶振	FL	18.432 MHz	±20ppm	±20ppm	15pF
FL1840007	Diodes晶振	FL	18.432 MHz	±20ppm	±20ppm	18pF
FL3000037	Diodes晶振	FL	30 MHz	±30ppm	±30ppm	10pF
FL2500281	Diodes晶振	FL	25 MHz	±50ppm	±20ppm	18pF
FL1100001	Diodes晶振	FL	11.0592 MHz	±20ppm	±20ppm	18pF
FL1100002	Diodes晶振	FL	11.0592 MHz	±30ppm	±20ppm	20pF
FL1100007	Diodes晶振	FL	11.0592 MHz	±50ppm	±20ppm	12pF
FL1200044	Diodes晶振	FL	12 MHz	±30ppm	±30ppm	18pF
FL1200046	Diodes晶振	FL	12 MHz	±20ppm	±20ppm	18pF
FL1200048	Diodes晶振	FL	12 MHz	±20ppm	±20ppm	18pF
FL1200050	Diodes晶振	FL	12 MHz	±30ppm	±30ppm	20pF
FL1200051	Diodes晶振	FL	12 MHz	±20ppm	±20ppm	18pF
FL1200053	Diodes晶振	FL	12 MHz	±20ppm	±20ppm	12pF
FL1200059	Diodes晶振	FL	12 MHz	±10ppm	±10ppm	8pF
FL1200061	Diodes晶振	FL	12 MHz	±9ppm	±9ppm	10pF
FL1200062	Diodes晶振	FL	12 MHz	±20ppm	±20ppm	10pF
FL1200063	Diodes晶振	FL	12 MHz	±30ppm	±30ppm	10pF
FL1200068	Diodes晶振	FL	12 MHz	±10ppm	±10ppm	9pF
FL1200074	Diodes晶振	FL	12 MHz	±20ppm	±20ppm	20pF
FL1200075	Diodes晶振	FL	12 MHz	±20ppm	±20ppm	12pF
