瑞薩可編程晶振,XTN312100.000000I,6G應用晶振
- 頻率：100MHz
- 尺寸：3.2×2.5mm
- 應 用： 瑞薩可編程晶振,XT有源晶振,XTN312100.000000I晶振,HCSL輸出差分晶振,3225mm晶振,石英晶振蕩器,頻率100MHz,電壓1.8V,頻率穩定性3ppm,工作溫度-40~85°C,高穩定性晶振,低抖動晶振,6G應用晶振,車載CCD相機晶振,圖像處理...
-
-
瑞薩可編程晶振,XTN312100.000000I,6G應用晶振,瑞薩可編程晶振,XT有源晶振,XTN312100.000000I晶振,HCSL輸出差分晶振,3225mm晶振,石英晶振蕩器,頻率100MHz,電壓1.8V,頻率穩定性3ppm,工作溫度-40~85°C,高穩定性晶振,低抖動晶振,6G應用晶振,車載CCD相機晶振,圖像處理晶振,存儲器晶振.
瑞薩可編程晶振,XTN312100.000000I,6G應用晶振特點：
•輸出類型:LVDS, LVPECL, CML
•頻率范圍:15MHz至2100MHz
•輸出類型:HCSL
•頻率范圍:15MHz至725MHz
•供電電壓選擇:1.8V, 2.5V, 3.3V
•相位抖動(12kHz至20MHz): 135 fs典型
•包裝選項:
•3.2 × 2.5 × 0.85 mm
•工作溫度和穩定性:
•-40°C至+85°C，±3ppm
•頻率穩定壽命:
•-40°C至+85°C，±13ppm
瑞薩可編程晶振,XTN312100.000000I,6G應用晶振規格表
| 項目 | 符號 | 規格說明 | 條件 |
| 額定頻率 | f_nom | 100MHz | 請聯系我們以便獲取其它可用頻率的相關信息 |
| 電源電壓 | Vcc | 1.8V±0.3V | |
| 儲存溫度 | T_stg | -55℃~+125℃ | 裸存 |
| 工作溫度 | T_use | -40℃~ +85℃ | |
| 頻率公差（標準） | f_tol | ±3 ppm | +25℃,超出標準的規格說明請聯系我們以便獲取相關信息 |
| 供電電流 | IDD | 95mA Max | HCSL 40+MHz to 220MHz |
| 輸出電壓（高） | VOH | 0.95V Max | VDD = 1.8V ±5%. |
| 輸出電壓（低） | VOL | 0.42V Max | VDD = 1.8V ±5%. |
| 對稱性 | SYM | 45%~55% | At outputs crossing point |
| 輸出負載 | HCSL | 50Ω | HCSL Differential. |
| 輸入電壓 | VIH | 70%VDD Min | HCSL |
| VIL | 30%VDD Max | ||
| 上升下降時間 | tr/tf | 450ps Max | HCSL 20% to 80% Vpp |
| 起始時間 | t str | 5ms Max | VDD達到最小指定水平后輸出有效時間 |
| 相位抖動 | tpj | 126 fs Typ | 12KHZ~20MHz |
| 老化 | f_aging | ±1ppm/year | +25℃,第一年 |
.jpg)

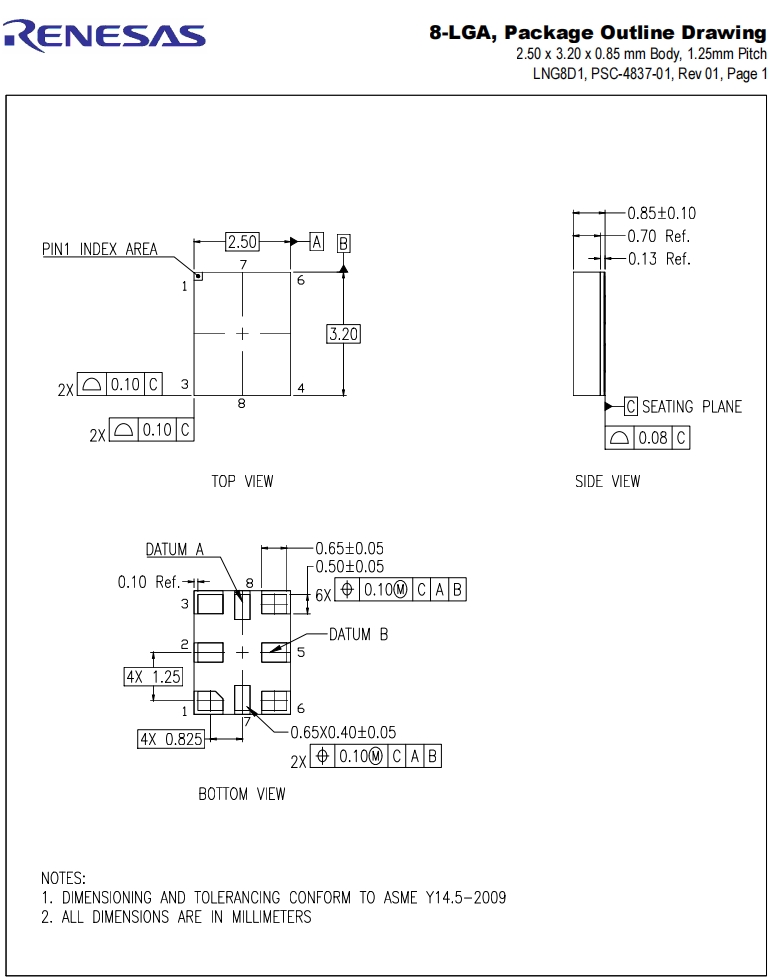

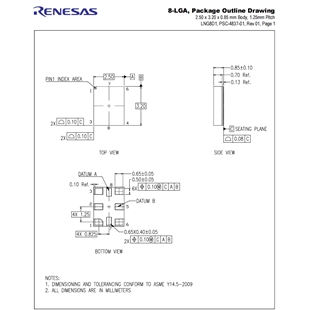

瑞薩可編程晶振,XTN312100.000000I,6G應用晶振尺寸圖
| 原廠編碼 | 品牌 | 型號 | 頻率 | 輸出 | 電壓 | 頻率穩定性 |
| XTP332156.250000I | Renesas Electronics America Inc | XT | 156.25 MHz | LVPECL | 3.3V | ±3ppm |
| XTL312625.000000I | Renesas Electronics America Inc | XT | 625 MHz | LVDS | 1.8V | ±3ppm |
| XTN312100.000000I | Renesas Electronics America Inc | XT | 100 MHz | HCSL | 1.8V | ±3ppm |
| XTL322080.000000I | Renesas Electronics America Inc | XT | 80 MHz | LVDS | 2.5V | ±3ppm |
| XTP322100.000000I | Renesas Electronics America Inc | XT | 100 MHz | LVPECL | 2.5V | ±3ppm |
| XTP332100.000000I | Renesas Electronics America Inc | XT | 100 MHz | LVPECL | 3.3V | ±3ppm |
| XTL312100.000000I | Renesas Electronics America Inc | XT | 100 MHz | LVDS | 1.8V | ±3ppm |
| XTP332K48.479000I | Renesas Electronics America Inc | XT | 2.048479 GHz | LVPECL | 3.3V | ±3ppm |
| XTP332087.000000I | Renesas Electronics America Inc | XT | 87 MHz | LVPECL | 3.3V | ±3ppm |
| XTC312272.800000I | Renesas Electronics America Inc | XT | 272.8 MHz | CML | 1.8V | ±3ppm |
| XTC332272.800000I | Renesas Electronics America Inc | XT | 272.8 MHz | CML | 3.3V | ±3ppm |
| XTN322100.000000I | Renesas Electronics America Inc | XT | 100 MHz | HCSL | 2.5V | ±3ppm |
| XTP332025.000000I | Renesas Electronics America Inc | XT | 25 MHz | LVPECL | 3.3V | ±3ppm |
| XTL322100.000000I | Renesas Electronics America Inc | XT | 100 MHz | LVDS | 2.5V | ±3ppm |
| XTL332125.000000I | Renesas Electronics America Inc | XT | 125 MHz | LVDS | 3.3V | ±3ppm |
| XTN312032.000000I | Renesas Electronics America Inc | XT | 32 MHz | HCSL | 1.8V | ±3ppm |
| XTP322025.000000I | Renesas Electronics America Inc | XT | 25 MHz | LVPECL | 2.5V | ±3ppm |
| XTL312156.250000I | Renesas Electronics America Inc | XT | 156.25 MHz | LVDS | 1.8V | ±3ppm |
| XTP332204.800000I | Renesas Electronics America Inc | XT | 204.8 MHz | LVPECL | 3.3V | ±3ppm |
| XTL322200.000000I | Renesas Electronics America Inc | XT | 200 MHz | LVDS | 2.5V | ±3ppm |
| XTL312125.000000I | Renesas Electronics America Inc | XT | 125 MHz | LVDS | 1.8V | ±3ppm |
| XTP332039.145000I | Renesas Electronics America Inc | XT | 39.145 MHz | LVPECL | 3.3V | ±3ppm |
| XTP332045.000000I | Renesas Electronics America Inc | XT | 45 MHz | LVPECL | 3.3V | ±3ppm |
| XTL332148.351648I | Renesas Electronics America Inc | XT | 148.351648 MHz | LVDS | 3.3V | ±3ppm |
| XTL312L00.000000I | Renesas Electronics America Inc | XT | 2.1 GHz | LVDS | 1.8V | ±3ppm |
| XTL312A00.000000I | Renesas Electronics America Inc | XT | 1 GHz | LVDS | 1.8V | ±3ppm |
| XTC332100.000000I | Renesas Electronics America Inc | XT | 100 MHz | CML | 3.3V | ±3ppm |
| XTL312016.000000I | Renesas Electronics America Inc | XT | 16 MHz | LVDS | 1.8V | ±3ppm |
| XTP332L00.000000I | Renesas Electronics America Inc | XT | 2.1 GHz | LVPECL | 3.3V | ±3ppm |
| XTP332040.000000I | Renesas Electronics America Inc | XT | 40 MHz | LVPECL | 3.3V | ±3ppm |
| XTP322K99.999999I | Renesas Electronics America Inc | XT | 2.099999999 GHz | LVPECL | 2.5V | ±3ppm |
| XTN332100.000000I | Renesas Electronics America Inc | XT | 100 MHz | HCSL | 3.3V | ±3ppm |
| XTL312779.215495I | Renesas Electronics America Inc | XT | 779.215495 MHz | LVDS | 1.8V | ±3ppm |
| XTL312779.215000I | Renesas Electronics America Inc | XT | 779.215 MHz | LVDS | 1.8V | ±3ppm |
| XTC312818.991000I | Renesas Electronics America Inc | XT | 818.991 MHz | CML | 1.8V | ±3ppm |
| XTC312779.215000I | Renesas Electronics America Inc | XT | 779.215 MHz | CML | 1.8V | ±3ppm |
| XTC312822.128000I | Renesas Electronics America Inc | XT | 822.128 MHz | CML | 1.8V | ±3ppm |
| XTC312G81.518000I | Renesas Electronics America Inc | XT | 1.681518 GHz | CML | 1.8V | ±3ppm |
| XTC312840.759000I | Renesas Electronics America Inc | XT | 840.759 MHz | CML | 1.8V | ±3ppm |
| XTC312G37.982000I | Renesas Electronics America Inc | XT | 1.637982 GHz | CML | 1.8V | ±3ppm |
| XTC312F88.430000I | Renesas Electronics America Inc | XT | 1.58843 GHz | CML | 1.8V | ±3ppm |
| XTC312G44.256000I | Renesas Electronics America Inc | XT | 1.644256 GHz | CML | 1.8V | ±3ppm |
.jpg)
.jpg)
