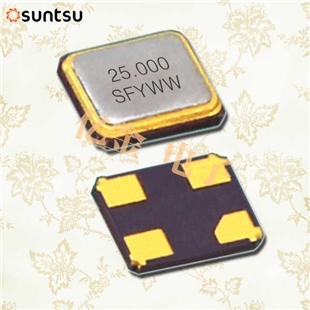

SXT22410AA07-16.000M 2520 10PF 16MHz 50PPM SUNSTU
- 頻率：16MHz
- 尺寸：2520
- 應 用： SXT22410AA07-16.000M252010PF16MHz50PPMSUNSTU，石英貼片晶振，10ppm/10ppm（公差/穩定性），可用的超微型包裝切割，基本磁帶和卷軸，藍牙，無線局域網，高密度應用程序。辦公自動化,視聽,藍牙,小型通信設備,SSD,USB...
-
-
.jpg)
SXT22410AA07-16.000M 2520 10PF 16MHz 50PPM SUNSTU，石英貼片晶振，±10ppm/±10ppm（公差/穩定性），可用的超微型包裝切割，基本磁帶和卷軸，藍牙，無線局域網，高密度應用程序。辦公自動化,視聽,藍牙,小型通信設備,SSD,USB.

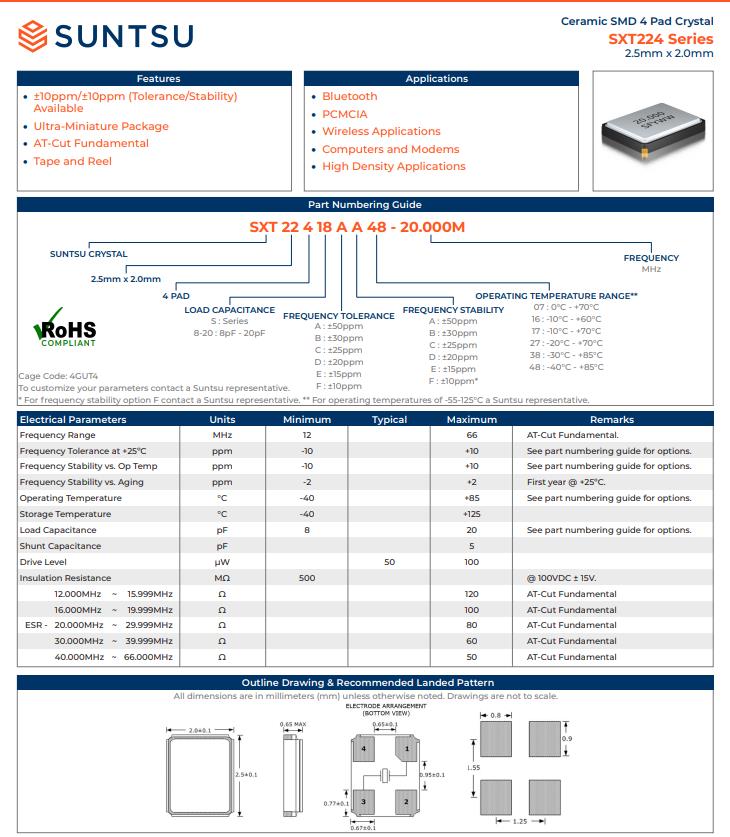

SXT22410AA07-16.000M 2520 10PF 16MHz 50PPM SUNSTU
| 電氣參數 | 單位 | 最小值 | 典型的 | 最大值 | 注意 |
| 頻率范圍 | MHz | 12 | 66 | AT-Cut Fundamental. | |
| 頻率容差 +25ºC | ppm | --10 | +10 | See part numbering guide for options. | |
| 溫度下的頻率偏差度 | ppm | --10 | +10 | See part numbering guide for options. | |
| 老化 | ppm | --2 | +2 | First year @ +25ºC. | |
| 工作溫度 | °C | --40 | +85 | See part numbering guide for options. | |
| 儲存溫度 | °C | --40 | +125 | ||
| 負載電容 | pF | 8 | 20 | See part numbering guide for options. | |
| 并聯電容 | pF | 5 | |||
| 驅動電平 | µW | 50 | 100 | ||
| 絕緣電阻 | M? | 500 | @ 100VDC ± 15V. |
.jpg)

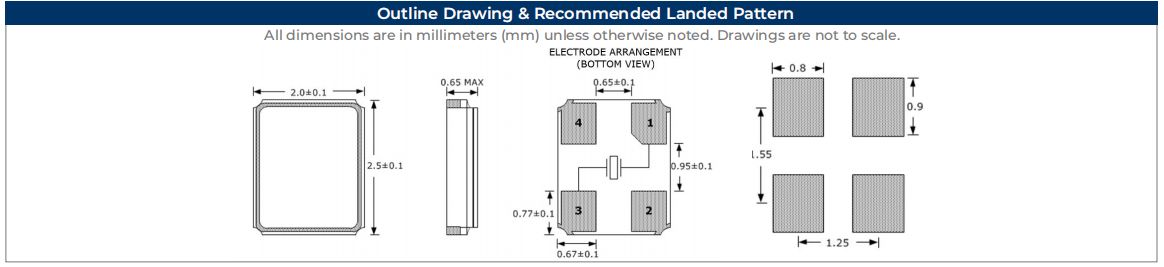

SXT22410AA07-16.000M 2520 10PF 16MHz 50PPM SUNSTU
.jpg)
| SUNTSU原廠編碼 | 封裝尺寸 | 負載電荷 | 頻率偏差度 | 頻率 |
| SXT22410AA07-12.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 12.000M |
| SXT22410AA07-12.288M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 12.288M |
| SXT22410AA07-13.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 13.000M |
| SXT22410AA07-13.560M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 13.560M |
| SXT22410AA07-14.31818M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 14.31818M |
| SXT22410AA07-14.7456M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 14.7456M |
| SXT22410AA07-16.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 16.000M |
| SXT22410AA07-16.384M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 16.384M |
| SXT22410AA07-18.432M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 18.432M |
| SXT22410AA07-19.200M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 19.200M |
| SXT22410AA07-20.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 20.000M |
| SXT22410AA07-22.1184M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 22.1184M |
| SXT22410AA07-24.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 24.000M |
| SXT22410AA07-24.576M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 24.576M |
| SXT22410AA07-25.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 25.000M |
| SXT22410AA07-26.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 26.000M |
| SXT22410AA07-27.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 27.000M |
| SXT22410AA07-27.120M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 27.120M |
| SXT22410AA07-30.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 30.000M |
| SXT22410AA07-32.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 32.000M |
| SXT22410AA07-37.400M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 37.400M |
| SXT22410AA07-38.400M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 38.400M |
| SXT22410AA07-40.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 40.000M |
| SXT22410AA07-48.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 48.000M |
| SXT22410AA07-50.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 50.000M |
| SXT22410AA16-12.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 12.000M |
| SXT22410AA16-12.288M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 12.288M |
| SXT22410AA16-13.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 13.000M |
| SXT22410AA16-13.560M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 13.560M |
| SXT22410AA16-14.31818M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 14.31818M |
| SXT22410AA16-14.7456M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 14.7456M |
| SXT22410AA16-16.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 16.000M |
| SXT22410AA16-16.384M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 16.384M |
| SXT22410AA16-18.432M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 18.432M |
| SXT22410AA16-19.200M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 19.200M |
| SXT22410AA16-20.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 20.000M |
| SXT22410AA16-22.1184M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 22.1184M |
| SXT22410AA16-24.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 24.000M |
| SXT22410AA16-24.576M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 24.576M |
| SXT22410AA16-25.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 25.000M |
| SXT22410AA16-26.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 26.000M |
| SXT22410AA16-27.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 27.000M |
| SXT22410AA16-27.120M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 27.120M |
| SXT22410AA16-30.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 30.000M |
| SXT22410AA16-32.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 32.000M |
| SXT22410AA16-37.400M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 37.400M |
| SXT22410AA16-38.400M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 38.400M |
| SXT22410AA16-40.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 40.000M |
| SXT22410AA16-48.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 48.000M |
| SXT22410AA16-50.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 50.000M |
| SXT22410AA17-12.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 12.000M |
| SXT22410AA17-12.288M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 12.288M |
| SXT22410AA17-13.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 13.000M |
| SXT22410AA17-13.560M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 13.560M |
| SXT22410AA17-14.31818M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 14.31818M |
| SXT22410AA17-14.7456M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 14.7456M |
| SXT22410AA17-16.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 16.000M |
| SXT22410AA17-16.384M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 16.384M |
| SXT22410AA17-18.432M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 18.432M |
| SXT22410AA17-19.200M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 19.200M |
| SXT22410AA17-20.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 20.000M |
| SXT22410AA17-22.1184M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 22.1184M |
| SXT22410AA17-24.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 24.000M |
| SXT22410AA17-24.576M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 24.576M |
| SXT22410AA17-25.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 25.000M |
| SXT22410AA17-26.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 26.000M |
| SXT22410AA17-27.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 27.000M |
| SXT22410AA17-27.120M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 27.120M |
| SXT22410AA17-30.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 30.000M |
| SXT22410AA17-32.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 32.000M |
.jpg)
.jpg)
