首頁進口晶振泰藝晶振X3AEELNANF-48.000000,48MHz,30PPM,8PF,1612,-40~85℃

X3AEELNANF-48.000000,48MHz,30PPM,8PF,1612,-40~85℃

頻率：48MHz
尺寸：1612
應　用： X3AEELNANF-48.000000,48MHz,30PPM,8PF,1612,-40~85℃,臺灣泰藝無源晶體,典型的1.65x1.25x0.3mm超薄陶瓷包裝，8mm寬的膠帶和卷軸包裝，用于自動組裝，緊密公差10ppm可用。藍牙，移動電話，無線局域網。事務工作自動化...

X3AEELNANF-48.000000,48MHz,30PPM,8PF,1612,-40~85℃,臺灣泰藝無源晶體,典型的1.65 x 1.25 x 0.3 mm超薄陶瓷包裝，8 mm寬的膠帶和卷軸包裝，用于自動組裝，緊密公差10 ppm可用。藍牙，移動電話，無線局域網。事務工作自動化，音頻和視頻。

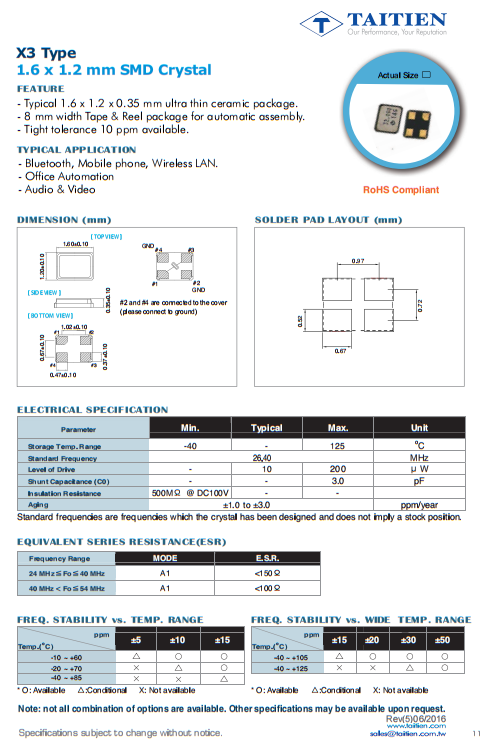

參數	最小值	典型的	最大值	Unit
儲存溫度	-40	-	125	℃
標準頻率	48			MHz
驅動電平	-	10	200	uW
并聯電容	-	-	3.0	pF
絕緣電阻	500M Q @ DC100V	-	-
老化	±1.0 to ±3.0			ppm/year

TAITIEN原廠編碼	生產廠家	型號	頻率	頻率穩定度	頻率偏差	負載電容	工作溫度
X3AEEJNANF-27.000000	Taitien晶振	X3	27MHz	±30ppm	±30ppm	8pF	-40°C ~ 105°C
X3AEEJNANF-27.000000	Taitien晶振	X3	27MHz	±30ppm	±30ppm	8pF	-40°C ~ 105°C
X3AEEJNANF-27.000000	Taitien晶振	X3	27MHz	±30ppm	±30ppm	8pF	-40°C ~ 105°C
X3AEEJNANF-27.120000	Taitien晶振	X3	27.12MHz	±30ppm	±30ppm	8pF	-40°C ~ 105°C
X3AEEJNANF-27.120000	Taitien晶振	X3	27.12MHz	±30ppm	±30ppm	8pF	-40°C ~ 105°C
X3AEEJNANF-27.120000	Taitien晶振	X3	27.12MHz	±30ppm	±30ppm	8pF	-40°C ~ 105°C
X3AEEJNANF-30.000000	Taitien晶振	X3	30MHz	±30ppm	±30ppm	8pF	-40°C ~ 105°C
X3AEEJNANF-30.000000	Taitien晶振	X3	30MHz	±30ppm	±30ppm	8pF	-40°C ~ 105°C
X3AEEJNANF-30.000000	Taitien晶振	X3	30MHz	±30ppm	±30ppm	8pF	-40°C ~ 105°C
X3AEEJNANF-38.400000	Taitien晶振	X3	38.4MHz	±30ppm	±30ppm	8pF	-40°C ~ 105°C
X3AEEJNANF-38.400000	Taitien晶振	X3	38.4MHz	±30ppm	±30ppm	8pF	-40°C ~ 105°C
X3AEEJNANF-38.400000	Taitien晶振	X3	38.4MHz	±30ppm	±30ppm	8pF	-40°C ~ 105°C
X3AEELNANF-26.000000	Taitien晶振	X3	26MHz	±30ppm	±30ppm	8pF	-40°C ~ 85°C
X3AEELNANF-26.000000	Taitien晶振	X3	26MHz	±30ppm	±30ppm	8pF	-40°C ~ 85°C
X3AEELNANF-26.000000	Taitien晶振	X3	26MHz	±30ppm	±30ppm	8pF	-40°C ~ 85°C
X3AEELNANF-27.000000	Taitien晶振	X3	27MHz	±30ppm	±30ppm	8pF	-40°C ~ 85°C
X3AEELNANF-27.000000	Taitien晶振	X3	27MHz	±30ppm	±30ppm	8pF	-40°C ~ 85°C
X3AEELNANF-27.000000	Taitien晶振	X3	27MHz	±30ppm	±30ppm	8pF	-40°C ~ 85°C
X3AEELNANF-27.120000	Taitien晶振	X3	27.12MHz	±30ppm	±30ppm	8pF	-40°C ~ 85°C
X3AEELNANF-27.120000	Taitien晶振	X3	27.12MHz	±30ppm	±30ppm	8pF	-40°C ~ 85°C
X3AEELNANF-27.120000	Taitien晶振	X3	27.12MHz	±30ppm	±30ppm	8pF	-40°C ~ 85°C
X3AEELNANF-30.000000	Taitien晶振	X3	30MHz	±30ppm	±30ppm	8pF	-40°C ~ 85°C
X3AEELNANF-30.000000	Taitien晶振	X3	30MHz	±30ppm	±30ppm	8pF	-40°C ~ 85°C
X3AEELNANF-30.000000	Taitien晶振	X3	30MHz	±30ppm	±30ppm	8pF	-40°C ~ 85°C
X3AEELNANF-38.400000	Taitien晶振	X3	38.4MHz	±30ppm	±30ppm	8pF	-40°C ~ 85°C
X3AEELNANF-38.400000	Taitien晶振	X3	38.4MHz	±30ppm	±30ppm	8pF	-40°C ~ 85°C
X3AEELNANF-38.400000	Taitien晶振	X3	38.4MHz	±30ppm	±30ppm	8pF	-40°C ~ 85°C
X3AEELNANF-40.000000	Taitien晶振	X3	40MHz	±30ppm	±30ppm	8pF	-40°C ~ 85°C
X3AEELNANF-40.000000	Taitien晶振	X3	40MHz	±30ppm	±30ppm	8pF	-40°C ~ 85°C
X3AEELNANF-40.000000	Taitien晶振	X3	40MHz	±30ppm	±30ppm	8pF	-40°C ~ 85°C
X3AEELNANF-48.000000	Taitien晶振	X3	48MHz	±30ppm	±30ppm	8pF	-40°C ~ 85°C
X3AEELNANF-48.000000	Taitien晶振	X3	48MHz	±30ppm	±30ppm	8pF	-40°C ~ 85°C
X3AEELNANF-48.000000	Taitien晶振	X3	48MHz	±30ppm	±30ppm	8pF	-40°C ~ 85°C
X3LEECNANF-26.000000	Taitien晶振	X3	26MHz	±30ppm	±30ppm	6pF	-20°C ~ 70°C
X3LEECNANF-26.000000	Taitien晶振	X3	26MHz	±30ppm	±30ppm	6pF	-20°C ~ 70°C
X3LEECNANF-26.000000	Taitien晶振	X3	26MHz	±30ppm	±30ppm	6pF	-20°C ~ 70°C
X3LEECNANF-27.000000	Taitien晶振	X3	27MHz	±30ppm	±30ppm	6pF	-20°C ~ 70°C
X3LEECNANF-27.000000	Taitien晶振	X3	27MHz	±30ppm	±30ppm	6pF	-20°C ~ 70°C
X3LEECNANF-27.000000	Taitien晶振	X3	27MHz	±30ppm	±30ppm	6pF	-20°C ~ 70°C
X3LEECNANF-27.120000	Taitien晶振	X3	27.12MHz	±30ppm	±30ppm	6pF	-20°C ~ 70°C
X3LEECNANF-27.120000	Taitien晶振	X3	27.12MHz	±30ppm	±30ppm	6pF	-20°C ~ 70°C
X3LEECNANF-27.120000	Taitien晶振	X3	27.12MHz	±30ppm	±30ppm	6pF	-20°C ~ 70°C
X3LEECNANF-30.000000	Taitien晶振	X3	30MHz	±30ppm	±30ppm	6pF	-20°C ~ 70°C
X3LEECNANF-30.000000	Taitien晶振	X3	30MHz	±30ppm	±30ppm	6pF	-20°C ~ 70°C
X3LEECNANF-30.000000	Taitien晶振	X3	30MHz	±30ppm	±30ppm	6pF	-20°C ~ 70°C
X3LEECNANF-38.400000	Taitien晶振	X3	38.4MHz	±30ppm	±30ppm	6pF	-20°C ~ 70°C
X3LEECNANF-38.400000	Taitien晶振	X3	38.4MHz	±30ppm	±30ppm	6pF	-20°C ~ 70°C
X3LEECNANF-38.400000	Taitien晶振	X3	38.4MHz	±30ppm	±30ppm	6pF	-20°C ~ 70°C
X3LEECNANF-40.000000	Taitien晶振	X3	40MHz	±30ppm	±30ppm	6pF	-20°C ~ 70°C
X3LEECNANF-40.000000	Taitien晶振	X3	40MHz	±30ppm	±30ppm	6pF	-20°C ~ 70°C
X3LEECNANF-40.000000	Taitien晶振	X3	40MHz	±30ppm	±30ppm	6pF	-20°C ~ 70°C
