首頁進口晶振E3SB25.0000F10E11,臺產鴻星晶振,3225貼片進口晶振

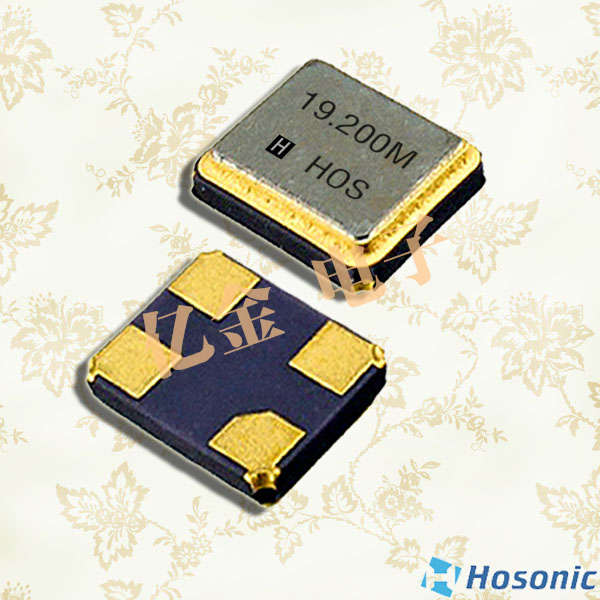

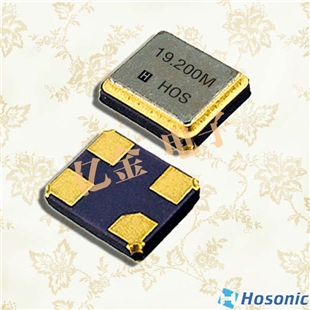

E3SB25.0000F10E11,臺產鴻星晶振,3225貼片進口晶振

頻率：25 MHz

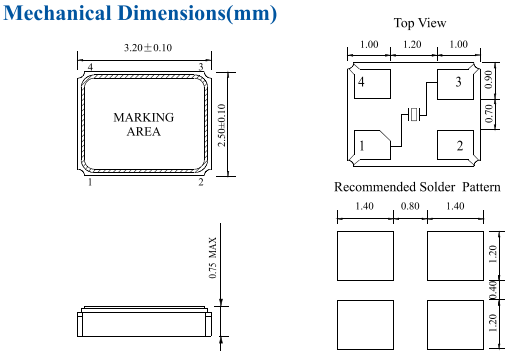

尺寸：3225mm
應　用： E3SB25.0000F10E11,臺產鴻星晶振,3225貼片進口晶振,憑借高頻精準,貼片便捷,穩定可靠的綜合特性,廣泛應用于多類電子設備,是一款跨領域通用的高頻貼片晶振解決方案.

E3SB25.0000F10E11,臺產鴻星晶振,3225貼片進口晶振
E3SB25.0000F10E11是臺灣鴻星晶振推出的高性能3225封裝貼片晶振,核心頻率精準設定為25.0000MHz,屬于高頻晶振范疇,能為電子設備提供穩定的高頻信號基準.該型號后綴參數對應特定電氣特性,其中"F10E11"代表其頻率穩定度,負載電容等關鍵指標符合工業級標準,可滿足通信設備,智能控制模塊等對高頻信號精度要求較高的場景,同時3225貼片封裝(3.2mm×2.5mm)具備小型化優勢,適配高密度PCB板布局需求.歡迎來電咨詢0755-27876565

E3SB25.0000F10E11,臺產鴻星晶振,3225貼片進口晶振

原廠型號 Originalmodel：	E3SB25.0000F10E11	品牌brand：	鴻星HOSONIC
型號名稱 Modelname：	E3SB	Size/Dimension尺寸	3225mm諧振器
Type系列：	MHz Crystal	高度PackageHeight：	0.75mm
頻率 frequency：	25MHZ	溫度OperatingTemperature	-40°C ~ 85°C
frequencytolerance頻率容差	±10ppm	腳位Termination：	4pad
Frequency Stability頻率穩定度	±15ppm	封裝類型PackageType：	4-SMD
Loadcapacitance 負載電容	12.5PF	最小包裝數MPQ：	3000

E3SB25.0000F10E11,臺產鴻星晶振,3225貼片進口晶振

E3SB25E00003FE	HOSONIC鴻星晶振	E3SB	MHz Crystal	25 MHz	±15ppm	±15ppm
E3SB24E004000E	HOSONIC鴻星晶振	E3SB	MHz Crystal	24 MHz	±10ppm	±10ppm
E3SB32E001500E	HOSONIC鴻星晶振	E3SB	MHz Crystal	32 MHz	±10ppm	±10ppm
E3SB37E0X0004E	HOSONIC鴻星晶振	E3SB	MHz Crystal	37.4 MHz	±10ppm	±10ppm
E3SB25E001803E	HOSONIC鴻星晶振	E3SB	MHz Crystal	25 MHz	±20ppm	±20ppm
E3SB16E0X000WE	HOSONIC鴻星晶振	E3SB	MHz Crystal	16.384 MHz	±10ppm	±10ppm
E3SB27E0X000VE	HOSONIC鴻星晶振	E3SB	MHz Crystal	27.12 MHz	±10ppm	±10ppm
E3SB27E00000DE	HOSONIC鴻星晶振	E3SB	MHz Crystal	27 MHz	±10ppm	±10ppm
E3SB50E00000AE	HOSONIC鴻星晶振	E3SB	MHz Crystal	50 MHz	±10ppm	±10ppm
E3SB26E000011E	HOSONIC鴻星晶振	E3SB	MHz Crystal	26 MHz	±10ppm	±10ppm
E2SB40E000104ECBB8	HOSONIC鴻星晶振	E2SB	MHz Crystal	40 MHz	±10ppm	±7ppm
E2SB38E0X0300E	HOSONIC鴻星晶振	E2SB	MHz Crystal	38.4 MHz	±10ppm	±10ppm
E3SB8E0000003E	HOSONIC鴻星晶振	E3SB	MHz Crystal	8 MHz	±30ppm	±30ppm
E2SB40E000107E	HOSONIC鴻星晶振	E2SB	MHz Crystal	40 MHz	-12ppm, +20ppm	±5ppm
E2SB40E00010AE	HOSONIC鴻星晶振	E2SB	MHz Crystal	40 MHz	±10ppm	±7ppm
E1SB24E00001EE	HOSONIC鴻星晶振	E1S	MHz Crystal	24 MHz	±30ppm	±30ppm
E1SB26E007902E	HOSONIC鴻星晶振	E1SB	MHz Crystal	26 MHz	±15ppm	±10ppm
E3SB24E00000QE	HOSONIC鴻星晶振	E3SB	MHz Crystal	24 MHz	±10ppm	±10ppm
E3SB40E00010JE	HOSONIC鴻星晶振	E3SB	MHz Crystal	40 MHz	-12ppm, +20ppm	±5ppm
E3SB12E000022E	HOSONIC鴻星晶振	E3SB	MHz Crystal	12 MHz	±30ppm	±30ppm
E3SB16E000028E	HOSONIC鴻星晶振	E3SB	MHz Crystal	16 MHz	±10ppm	±10ppm
E3SB40E00090DE	HOSONIC鴻星晶振	E3SB	MHz Crystal	40 MHz	±20ppm	±10ppm
E3SB38E0X0006E	HOSONIC鴻星晶振	E3SB	MHz Crystal	38.4 MHz	±10ppm	±10ppm
E3SB40E00010KECBB8	HOSONIC鴻星晶振	E3SB	MHz Crystal	40 MHz	±15ppm	±7ppm
E3SB39E000006E	HOSONIC鴻星晶振	E3SB	MHz Crystal	39 MHz	±15ppm	±8ppm
E3SB38E0X1806E	HOSONIC鴻星晶振	E3SB	MHz Crystal	38.4 MHz	±20ppm	±20ppm
E3SB48E000801ECBB8	HOSONIC鴻星晶振	E3SB	MHz Crystal	48 MHz	±10ppm	±10ppm
E3SB12E00004EE	HOSONIC鴻星晶振	E3SB	MHz Crystal	12 MHz	±35ppm	±8ppm
E1SB60E003701E	HOSONIC鴻星晶振	E1S	MHz Crystal	60 MHz	±20ppm	±10ppm
E1SB55E0X0002E	HOSONIC鴻星晶振	E1SB	MHz Crystal	55.2 MHz	±10ppm	±10ppm
E2SB27E0X0000E	HOSONIC鴻星晶振	E2SB	MHz Crystal	27.12 MHz	±10ppm	±10ppm
E2SB24E001801E	HOSONIC鴻星晶振	E2SB	MHz Crystal	24 MHz	±20ppm	±20ppm
E2SB40E000108E	HOSONIC鴻星晶振	E2SB	MHz Crystal	40 MHz	±15ppm	±7ppm
ETSB37E0X0014E	HOSONIC鴻星晶振	ETSB	MHz Crystal	37.4 MHz	±10ppm	±10ppm
ETSB38E0X0005E	HOSONIC鴻星晶振	ETSB	MHz Crystal	38.4 MHz	±10ppm	±10ppm
E1SB24E000007E	HOSONIC鴻星晶振	E1SB	MHz Crystal	24 MHz	±10ppm	±10ppm
E1SB25E000009E	HOSONIC鴻星晶振	E1S	MHz Crystal	25 MHz	±30ppm	±30ppm
E1SB24E004000E	HOSONIC鴻星晶振	E1S	MHz Crystal	24 MHz	±10ppm	±10ppm
E1SB38E0X0001E	HOSONIC鴻星晶振	E1S	MHz Crystal	38.4 MHz	±10ppm	±10ppm
E1SB39E000000E	HOSONIC鴻星晶振	E1SB	MHz Crystal	39 MHz	±13ppm	±8ppm
E1SB40E00090AECBB8	HOSONIC鴻星晶振	E1S	MHz Crystal	40 MHz	±20ppm	±10ppm
E1SB48E000506E	HOSONIC鴻星晶振	E1S	MHz Crystal	48 MHz	±16ppm	±8ppm
E1SB25E001000E	HOSONIC鴻星晶振	E1S	MHz Crystal	25 MHz	±30ppm	±30ppm
E1SB32E007900E	HOSONIC鴻星晶振	E1SB	MHz Crystal	32 MHz	±15ppm	±10ppm
E1SB32E001502E	HOSONIC鴻星晶振	E1SB	MHz Crystal	32 MHz	±20ppm	±10ppm
E2SB12E000005E	HOSONIC鴻星晶振	E2SB	MHz Crystal	12 MHz	±20ppm	±20ppm
E1SB37E0X0002E	HOSONIC鴻星晶振	E1S	MHz Crystal	37.4 MHz	±10ppm	±10ppm
E1SB32E001501ECBB8	HOSONIC鴻星晶振	E1S	MHz Crystal	32 MHz	±10ppm	±10ppm
E1SB16E000004E	HOSONIC鴻星晶振	E1SB	MHz Crystal	16 MHz	±10ppm	±10ppm
ETSB24E000003E	HOSONIC鴻星晶振	ETSB	MHz Crystal	24 MHz	±10ppm	±10ppm
ETSB48E007500ECBB8	HOSONIC鴻星晶振	ETSB	MHz Crystal	48 MHz	±15ppm	±10ppm
ETSB48E007502E	HOSONIC鴻星晶振	ETSB	MHz Crystal	48 MHz	±15ppm	±10ppm
ETSB32E000003E	HOSONIC鴻星晶振	ETSB	MHz Crystal	32 MHz	±10ppm	±10ppm
ETSB60E003700E	HOSONIC鴻星晶振	ETSB	MHz Crystal	60 MHz	±20ppm	±10ppm
E3SB14E0X0002E	HOSONIC鴻星晶振	E3SB	MHz Crystal	14.7456 MHz	±30ppm	±30ppm
E3SB10E000007E	HOSONIC鴻星晶振	E3SB	MHz Crystal	10 MHz	±30ppm	±30ppm
E3SB25E00000DE	HOSONIC鴻星晶振	E3SB	MHz Crystal	25 MHz	±10ppm	±10ppm
E3FB24E00000KE	HOSONIC鴻星晶振	E3FB	MHz Crystal	24 MHz	±30ppm	±30ppm
E3SB48E00000TE	HOSONIC鴻星晶振	E3SB	MHz Crystal	48 MHz	±30ppm	±30ppm
E3SB50E00002AE	HOSONIC鴻星晶振	E3SB	MHz Crystal	50 MHz	±18ppm	±7ppm
