首頁進口晶振E3SB26E000202E,便攜式設備晶振,3225臺產鴻星晶振

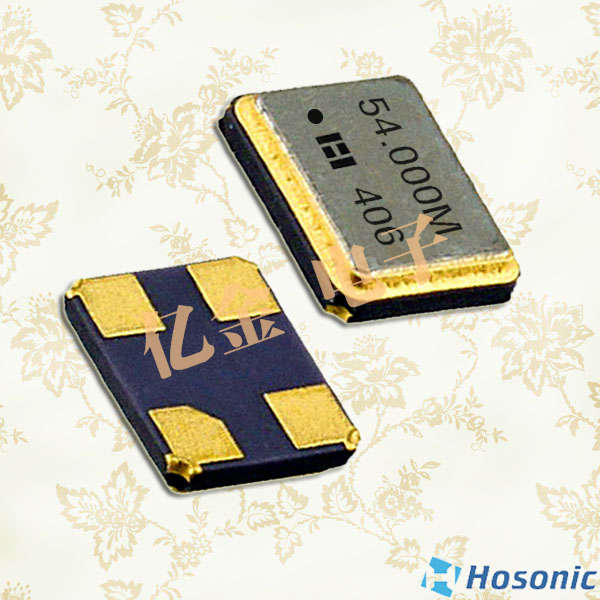

E3SB26E000202E,便攜式設備晶振,3225臺產鴻星晶振

頻率：26.000MHZ
尺寸：3225mm
應　用： E3SB26E000202E,便攜式設備晶振,3225臺產鴻星晶振,可靈活嵌入PCB板狹小空間,支持自動貼裝與回流焊工藝,大幅提升批量生產效率.在藍牙5.2,WiFi6等無線通信模塊中,其穩定的頻率輸出能優化信號同步性能,降低數據傳輸誤碼率...

E3SB26E000202E,便攜式設備晶振,3225臺產鴻星晶振

源自中國臺灣鴻星的E3SB26E000202E晶振,以3225標準貼片封裝為基礎,精準匹配便攜式設備的輕量化,小型化設計需求.助力延長藍牙耳機,智能手環等電池供電設備的續航時長.相較于進口同類型晶振,該型號在保持核心性能不縮水的前提下,具備更親民的價格與穩定的供貨周期,同時通過嚴苛的品質檢測,抗電磁干擾能力突出,能適配日常便攜場景中的復雜使用環境,是消費類便攜式電子產品的高性價比時鐘源之選.

E3SB26E000202E,便攜式設備晶振,3225臺產鴻星晶振

原廠型號 Originalmodel：	E3SB26E000202E	品牌brand：	Hosonic
品牌brand：	鴻星HOSONIC晶振	高度PackageHeight：	0.75mm
型號名稱 Modelname：	E3SB	溫度OperatingTemperature	-20+75℃
Type系列：	MHz Crystal	腳位Termination：	4-pad
頻率 frequency：	26M	封裝類型PackageType：	4-smd
frequencytolerance頻率容差	10PP	最小包裝數MPQ：	3000
Loadcapacitance 負載電容	9PF	Packaging 包裝	TapeandReel

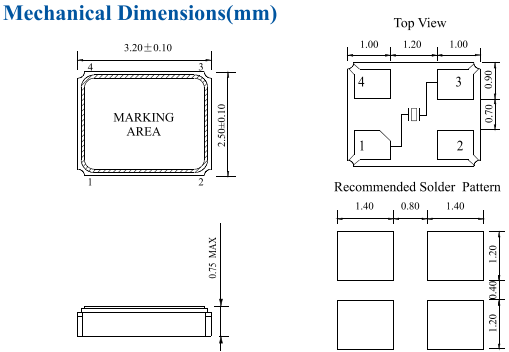

Size/Dimension尺寸	3225mm	安裝方式 Installation：	Surfacemount

E3SB26E000202E,便攜式設備晶振,3225臺產鴻星晶振

E3SB25E00003FE	Hosonic鴻星晶振	E3SB	MHz Crystal	25 MHz	±15ppm	±15ppm	18pF
E3SB24E004000E	Hosonic鴻星晶振	E3SB	MHz Crystal	24 MHz	±10ppm	±10ppm	18pF
E3SB32E001500E	Hosonic鴻星晶振	E3SB	MHz Crystal	32 MHz	±10ppm	±10ppm	12pF
E3SB37E0X0004E	Hosonic鴻星晶振	E3SB	MHz Crystal	37.4 MHz	±10ppm	±10ppm	16pF
E3SB25E001803E	Hosonic鴻星晶振	E3SB	MHz Crystal	25 MHz	±20ppm	±20ppm	12pF
E3SB16E0X000WE	Hosonic鴻星晶振	E3SB	MHz Crystal	16.384 MHz	±10ppm	±10ppm	10pF
E3SB27E0X000VE	Hosonic鴻星晶振	E3SB	MHz Crystal	27.12 MHz	±10ppm	±10ppm	10pF
E3SB27E00000DE	Hosonic鴻星晶振	E3SB	MHz Crystal	27 MHz	±10ppm	±10ppm	10pF
E3SB50E00000AE	Hosonic鴻星晶振	E3SB	MHz Crystal	50 MHz	±10ppm	±10ppm	18pF
E3SB26E000011E	Hosonic鴻星晶振	E3SB	MHz Crystal	26 MHz	±10ppm	±10ppm	12pF
E2SB40E000104ECBB8	Hosonic鴻星晶振	E2SB	MHz Crystal	40 MHz	±10ppm	±7ppm	12pF
E2SB38E0X0300E	Hosonic鴻星晶振	E2SB	MHz Crystal	38.4 MHz	±10ppm	±10ppm	8pF
E3SB8E0000003E	Hosonic鴻星晶振	E3SB	MHz Crystal	8 MHz	±30ppm	±30ppm	10pF
E2SB40E000107E	Hosonic鴻星晶振	E2SB	MHz Crystal	40 MHz	-12ppm, +20ppm	±5ppm	12pF
E2SB40E00010AE	Hosonic鴻星晶振	E2SB	MHz Crystal	40 MHz	±10ppm	±7ppm	7pF
E1SB24E00001EE	Hosonic鴻星晶振	E1S	MHz Crystal	24 MHz	±30ppm	±30ppm	18pF
E1SB26E007902E	Hosonic鴻星晶振	E1SB	MHz Crystal	26 MHz	±15ppm	±10ppm	9pF
E3SB24E00000QE	Hosonic鴻星晶振	E3SB	MHz Crystal	24 MHz	±10ppm	±10ppm	10pF
E3SB40E00010JE	Hosonic鴻星晶振	E3SB	MHz Crystal	40 MHz	-12ppm, +20ppm	±5ppm	12pF
E3SB12E000022E	Hosonic鴻星晶振	E3SB	MHz Crystal	12 MHz	±30ppm	±30ppm	18pF
E3SB16E000028E	Hosonic鴻星晶振	E3SB	MHz Crystal	16 MHz	±10ppm	±10ppm	10pF
E3SB40E00090DE	Hosonic鴻星晶振	E3SB	MHz Crystal	40 MHz	±20ppm	±10ppm	12pF
E3SB38E0X0006E	Hosonic鴻星晶振	E3SB	MHz Crystal	38.4 MHz	±10ppm	±10ppm	10pF
E3SB40E00010KECBB8	Hosonic鴻星晶振	E3SB	MHz Crystal	40 MHz	±15ppm	±7ppm	6pF
E3SB39E000006E	Hosonic鴻星晶振	E3SB	MHz Crystal	39 MHz	±15ppm	±8ppm	10pF
E3SB38E0X1806E	Hosonic鴻星晶振	E3SB	MHz Crystal	38.4 MHz	±20ppm	±20ppm	10pF
E3SB48E000801ECBB8	Hosonic鴻星晶振	E3SB	MHz Crystal	48 MHz	±10ppm	±10ppm	12pF
E3SB12E00004EE	Hosonic鴻星晶振	E3SB	MHz Crystal	12 MHz	±35ppm	±8ppm	12pF
E1SB60E003701E	Hosonic鴻星晶振	E1S	MHz Crystal	60 MHz	±20ppm	±10ppm	9pF
E1SB55E0X0002E	Hosonic鴻星晶振	E1SB	MHz Crystal	55.2 MHz	±10ppm	±10ppm	10pF
E2SB27E0X0000E	Hosonic鴻星晶振	E2SB	MHz Crystal	27.12 MHz	±10ppm	±10ppm	8pF
E2SB24E001801E	Hosonic鴻星晶振	E2SB	MHz Crystal	24 MHz	±20ppm	±20ppm	12pF
E2SB40E000108E	Hosonic鴻星晶振	E2SB	MHz Crystal	40 MHz	±15ppm	±7ppm	6pF
ETSB37E0X0014E	Hosonic鴻星晶振	ETSB	MHz Crystal	37.4 MHz	±10ppm	±10ppm	16pF
ETSB38E0X0005E	Hosonic鴻星晶振	ETSB	MHz Crystal	38.4 MHz	±10ppm	±10ppm	10pF
E1SB24E000007E	Hosonic鴻星晶振	E1SB	MHz Crystal	24 MHz	±10ppm	±10ppm	10pF
E1SB25E000009E	Hosonic鴻星晶振	E1S	MHz Crystal	25 MHz	±30ppm	±30ppm	6pF
E1SB24E004000E	Hosonic鴻星晶振	E1S	MHz Crystal	24 MHz	±10ppm	±10ppm	18pF
E1SB38E0X0001E	Hosonic鴻星晶振	E1S	MHz Crystal	38.4 MHz	±10ppm	±10ppm	10pF
E1SB39E000000E	Hosonic鴻星晶振	E1SB	MHz Crystal	39 MHz	±13ppm	±8ppm	10pF
E1SB40E00090AECBB8	Hosonic鴻星晶振	E1S	MHz Crystal	40 MHz	±20ppm	±10ppm	12pF
E1SB48E000506E	Hosonic鴻星晶振	E1S	MHz Crystal	48 MHz	±16ppm	±8ppm	11.1pF
E1SB25E001000E	Hosonic鴻星晶振	E1S	MHz Crystal	25 MHz	±30ppm	±30ppm	18pF
E1SB32E007900E	Hosonic鴻星晶振	E1SB	MHz Crystal	32 MHz	±15ppm	±10ppm	10pF
E1SB32E001502E	Hosonic鴻星晶振	E1SB	MHz Crystal	32 MHz	±20ppm	±10ppm	12pF
E2SB12E000005E	Hosonic鴻星晶振	E2SB	MHz Crystal	12 MHz	±20ppm	±20ppm	12pF
E1SB37E0X0002E	Hosonic鴻星晶振	E1S	MHz Crystal	37.4 MHz	±10ppm	±10ppm	16pF
E1SB32E001501ECBB8	Hosonic鴻星晶振	E1S	MHz Crystal	32 MHz	±10ppm	±10ppm	9pF
E1SB16E000004E	Hosonic鴻星晶振	E1SB	MHz Crystal	16 MHz	±10ppm	±10ppm	8pF
ETSB24E000003E	Hosonic鴻星晶振	ETSB	MHz Crystal	24 MHz	±10ppm	±10ppm	8pF
ETSB48E007500ECBB8	Hosonic鴻星晶振	ETSB	MHz Crystal	48 MHz	±15ppm	±10ppm	10pF
ETSB48E007502E	Hosonic鴻星晶振	ETSB	MHz Crystal	48 MHz	±15ppm	±10ppm	10pF
ETSB32E000003E	Hosonic鴻星晶振	ETSB	MHz Crystal	32 MHz	±10ppm	±10ppm	8pF
ETSB60E003700E	Hosonic鴻星晶振	ETSB	MHz Crystal	60 MHz	±20ppm	±10ppm	9pF
E3SB14E0X0002E	Hosonic鴻星晶振	E3SB	MHz Crystal	14.7456 MHz	±30ppm	±30ppm	12pF
E3SB10E000007E	Hosonic鴻星晶振	E3SB	MHz Crystal	10 MHz	±30ppm	±30ppm	12pF
E3SB25E00000DE	Hosonic鴻星晶振	E3SB	MHz Crystal	25 MHz	±10ppm	±10ppm	10pF
E3FB24E00000KE	Hosonic鴻星晶振	E3FB	MHz Crystal	24 MHz	±30ppm	±30ppm	12pF
E3SB48E00000TE	Hosonic鴻星晶振	E3SB	MHz Crystal	48 MHz	±30ppm	±30ppm	18pF
E3SB50E00002AE	Hosonic鴻星晶振	E3SB	MHz Crystal	50 MHz	±18ppm	±7ppm	9pF
