首頁晶振行業動態 CMOS振蕩器CWX825-33.333M用于高密度安裝
CMOS振蕩器CWX825-33.333M用于高密度安裝
來源：http://www.lnjyxx.com 作者：億金電子 2023年05月15

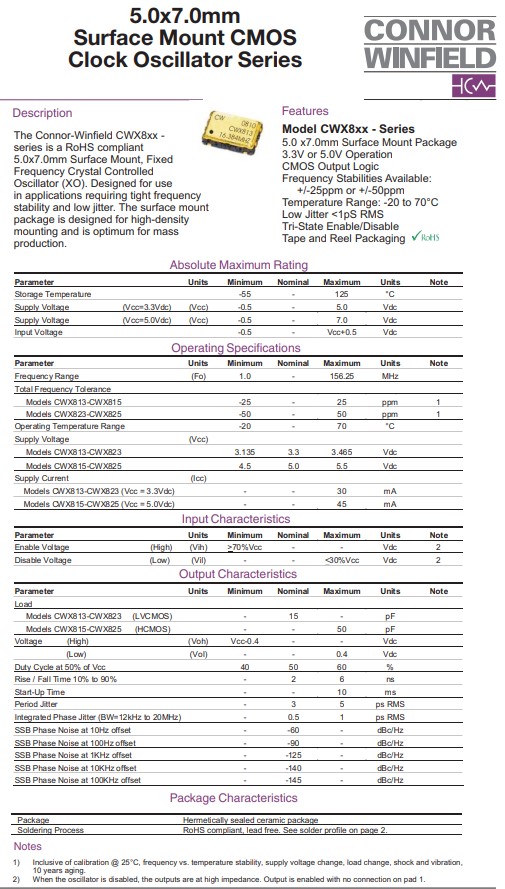

ConnorWinfield康納溫菲爾德晶振CWX8xx系列CWX825晶振，是一款小體積晶振尺寸5.0x7.0mm毫米表面貼裝，有源晶振，固定頻率晶體控制振蕩器(XO)。3.3V或5.0V工作電壓，CMOS輸出邏輯，可用的頻率穩定性: 低抖動< 1pS RMS 三態使能/禁用 膠帶和卷軸包裝 +/-25ppm或+/-50ppm，溫度范圍:-20℃至70℃。石英晶體振蕩器為使用而設計在要求嚴格頻率的應用中穩定性和低抖動。表面貼裝封裝設計用于高密度安裝，是質量的最佳選擇生產。符合RoHS標準，被廣泛用于通訊設備，無線網絡，藍牙模塊，汽車電子，GPS定位系統，導航儀，醫療設備，數碼電子，物聯網等應用。CMOS振蕩器CWX825-33.333M用于高密度安裝
CMOS振蕩器CWX825-33.333M用于高密度安裝，晶振的功能是為系統提供基本的時鐘信號，通常一個系統共用一個晶振，便于各部分保持同步。有些通訊系統的基頻和射頻使用不同的晶振，不同的規格封裝延伸很多的頻點等不同的參數，而通過電子調整頻率的方法保持同步，在我們?nèi)粘Ｉ钪幸搽x不開晶振。時鐘振蕩器是利用了晶體的壓電效應制造的,當在晶片的兩面上加交變電壓時，晶片會反復的機械變形而產生振動，而這種機械振動又會反過來產生交變電壓。
.JPG)
| 原廠代碼 | 品牌 | 型號 | 頻率 | 工作溫度 | 包裝/封裝 |
| CWX825-1.544M | ConnorWinfield | CWX825 | 1.544MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX825-1.8432M | ConnorWinfield | CWX825 | 1.8432MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX825-3.6864M | ConnorWinfield | CWX825 | 3.6864MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX825-4.0M | ConnorWinfield | CWX825 | 4MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX825-7.3728M | ConnorWinfield | CWX825 | 7.3728MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX825-8.0M | 康納溫菲爾德晶振 | CWX825 | 8MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX825-10.0M | ConnorWinfield | CWX825 | 10MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX825-12.0M | ConnorWinfield | CWX825 | 12MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX825-12.288M | ConnorWinfield | CWX825 | 12.288MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX825-14.31818M | ConnorWinfield | CWX825 | 14.31818MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX825-15.36M | ConnorWinfield | CWX825 | 15.36MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX825-16.0M | ConnorWinfield | CWX825 | 16MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX825-16.384M | ConnorWinfield | CWX825 | 16.384MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX825-18.432M | ConnorWinfield | CWX825 | 18.432MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX825-19.44M | ConnorWinfield | CWX825 | 19.44MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX825-20.0M | ConnorWinfield | CWX825 | 20MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX825-20.48M | ConnorWinfield | CWX825 | 20.48MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX825-24.0M | ConnorWinfield | CWX825 | 24MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX825-24.576M | ConnorWinfield | CWX825 | 24.576MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX825-25.0M | ConnorWinfield | CWX825 | 25MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX825-27.0M | ConnorWinfield | CWX825 | 27MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX825-29.4912M | ConnorWinfield | CWX825 | 29.4912MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX825-30.0M | ConnorWinfield | CWX825 | 30MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX825-32.0M | ConnorWinfield | CWX825 | 32MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX825-33.0M | ConnorWinfield | CWX825 | 33MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX825-33.333M | ConnorWinfield | CWX825 | 33.333MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX825-40.0M | ConnorWinfield | CWX825 | 40MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX825-44.736M | ConnorWinfield | CWX825 | 44.736MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX825-45.0M | 貼片晶振 | CWX825 | 45MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX825-49.152M | ConnorWinfield | CWX825 | 49.152MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX825-50.0M | ConnorWinfield | CWX825 | 50MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX825-60.0M | ConnorWinfield | CWX825 | 60MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX825-64.0M | ConnorWinfield | CWX825 | 64MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX825-66.6666M | ConnorWinfield | CWX825 | 66.6666MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX825-72.0M | ConnorWinfield | CWX825 | 72MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX825-80.0M | ConnorWinfield | CWX825 | 80MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX825-100.0M | ConnorWinfield | CWX825 | 100MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX825-125.0M | ConnorWinfield | CWX825 | 125MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX825-156.25M | ConnorWinfield | CWX825 | 156.25MHz | -20°C ~ 70°C | 4-SMD, No Lead |
