SG-210SEBA車載晶振X1G004611A00100是汽車電子應用中的理想選擇
來源：http://www.lnjyxx.com 作者：億金電子 2022年09月28

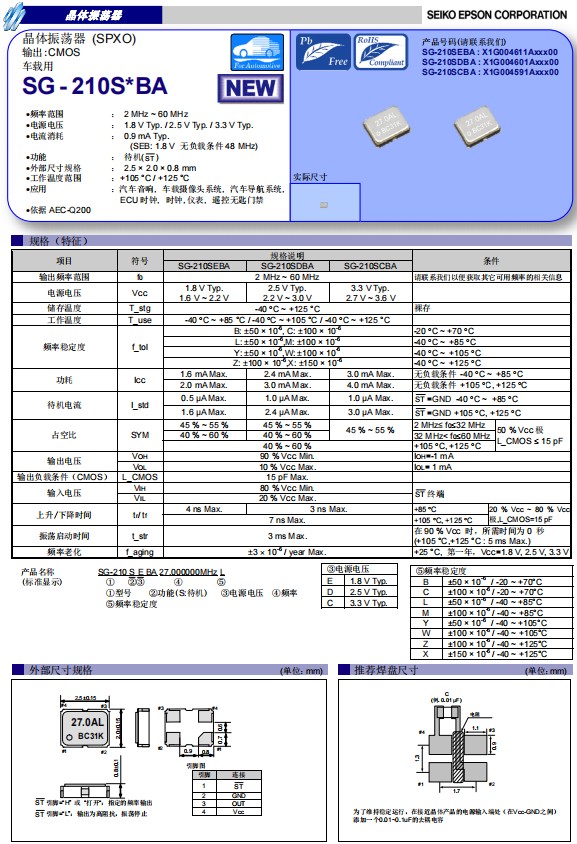

愛普生晶振推出車載電子專用晶振SG-210SEBA，是一款CMOS輸出石英晶體振蕩器(SPXO)，小體積晶振尺寸2.5x2.0mm四腳貼片晶振，有源晶振，電源電壓1.8V至3.3V，頻率范圍2MHz至60MHz，寬工作溫度可達到-40℃至+85℃/+105℃/+125℃，該產品具有超小型，輕薄型，低抖動，低功耗，耐高溫，耐振、耐沖擊等優良的耐環境特性，滿足無鉛焊接的高溫回流溫度曲線要求，符合AEC-Q200標準。SG-210SEBA有源晶振非常適用于汽車電子應用，汽車音響控制器，車載攝像頭系統，汽車導航系統，時鐘，儀表等。是汽車電子應用中的理想選擇。
SG-210SEBA車載晶振X1G004611A00100是汽車電子應用中的理想選擇,X1G004611A03400,耐高溫晶振
.JPG)
SG-210SEBA車載晶振X1G004611A00100是汽車電子應用中的理想選擇,X1G004611A03400,耐高溫晶振
針對各種車載電子設備對石英晶振在高溫、抗振動等方面的更高要求，愛普生可以提供全面的符合AEC-Q200/100技術標準的汽車用車規晶振。
汽車的應用場景包括導航、遠程呼叫、緊急救援、防盜跟蹤、道路救援、電話、資訊娛樂、下載應用，自動駕駛等等，為了實現人與汽車系統自由的交互，并提供實時的信息互動、支付、交通、天氣等功能，汽車對車規級晶振的依賴只會越來越強。
SG-210SEBA車載晶振X1G004611A00100是汽車電子應用中的理想選擇,X1G004611A03400,耐高溫晶振
 產品編碼 |
 型號 |
 頻率 |
 貼片晶振 |
 輸出波 |
 電源電壓 |
 工作溫度 |
| X1G004611A00100 | SG-210SEBA | 24.000000MHz | 2.50x2.00x0.90mm | CMOS | 1.600 to 2.200V | -40 to 105°C |
| X1G004611A00300 | SG-210SEBA | 27.000000MHz | 2.50x2.00x0.90mm | CMOS | 1.600 to 2.200V | -40 to 125°C |
| X1G004611A00400 | SG-210SEBA | 20.000000MHz | 2.50x2.00x0.90mm | CMOS | 1.600 to 2.200V | -40 to 125°C |
| X1G004611A00500 | SG-210SEBA | 27.000000MHz | 2.50x2.00x0.90mm | CMOS | 1.600 to 2.200V | -40 to 105°C |
| X1G004611A01200 | SG-210SEBA | 24.000000MHz | 2.50x2.00x0.90mm | CMOS | 1.600 to 2.200V | -40 to 105°C |
| X1G004611A01300 | SG-210SEBA | 33.000000MHz | 2.50x2.00x0.90mm | CMOS | 1.600 to 2.200V | -40 to 85°C |
| X1G004611A01400 | SG-210SEBA | 16.666600MHz | 2.50x2.00x0.90mm | CMOS | 1.600 to 2.200V | -40 to 85°C |
| X1G004611A01600 | SG-210SEBA | 14.000000MHz | 2.50x2.00x0.90mm | CMOS | 1.600 to 2.200V | -40 to 105°C |
| X1G004611A01700 | SG-210SEBA | 37.125000MHz | 2.50x2.00x0.90mm | CMOS | 1.600 to 2.200V | -40 to 105°C |
| X1G004611A01900 | SG-210SEBA | 13.000000MHz | 2.50x2.00x0.90mm | CMOS | 1.600 to 2.200V | -40 to 105°C |
| X1G004611A02000 | SG-210SEBA | 10.000000MHz | 2.50x2.00x0.90mm | CMOS | 1.600 to 2.200V | -40 to 85°C |
| X1G004611A02100 | SG-210SEBA | 48.000000MHz | 2.50x2.00x0.90mm | CMOS | 1.600 to 2.200V | -40 to 105°C |
| X1G004611A02200 | SG-210SEBA | 16.660000MHz | 2.50x2.00x0.90mm | CMOS | 1.600 to 2.200V | -40 to 85°C |
| X1G004611A02400 | SG-210SEBA | 14.745600MHz | 2.50x2.00x0.90mm | CMOS | 1.600 to 2.200V | -40 to 85°C |
| X1G004611A02500 | SG-210SEBA | 16.640000MHz | 2.50x2.00x0.90mm | CMOS | 1.600 to 2.200V | -40 to 85°C |
| X1G004611A02600 | SG-210SEBA | 24.576000MHz | 2.50x2.00x0.90mm | CMOS | 1.600 to 2.200V | -40 to 85°C |
| X1G004611A02700 | SG-210SEBA | 12.288000MHz | 2.50x2.00x0.90mm | CMOS | 1.600 to 2.200V | -40 to 105°C |
| X1G004611A02800 | SG-210SEBA | 25.000000MHz | 2.50x2.00x0.90mm | CMOS | 1.600 to 2.200V | -40 to 105°C |
| X1G004611A03000 | SG-210SEBA | 48.000000MHz | 2.50x2.00x0.90mm | CMOS | 1.600 to 2.200V | -40 to 85°C |
| X1G004611A03100 | SG-210SEBA | 25.000000MHz | 2.50x2.00x0.90mm | CMOS | 1.600 to 2.200V | -40 to 125°C |
| X1G004611A03300 | SG-210SEBA | 24.000000MHz | 2.50x2.00x0.90mm | CMOS | 1.600 to 2.200V | -40 to 125°C |
| X1G004611A03400 | SG-210SEBA | 20.000000MHz | 2.50x2.00x0.90mm | CMOS | 1.600 to 2.200V | -40 to 105°C |
| X1G004611A03500 | SG-210SEBA | 41.250000MHz | 2.50x2.00x0.90mm | CMOS | 1.600 to 2.200V | -40 to 105°C |
| X1G004611A03600 | SG-210SEBA | 16.640000MHz | 2.50x2.00x0.90mm | CMOS | 1.600 to 2.200V | -40 to 105°C |
| X1G004611A03700 | SG-210SEBA | 16.510000MHz | 2.50x2.00x0.90mm | CMOS | 1.600 to 2.200V | -40 to 105°C |
| X1G004611A03800 | SG-210SEBA | 9.600000MHz | 2.50x2.00x0.90mm | CMOS | 1.600 to 2.200V | -40 to 105°C |
| X1G004611A04100 | SG-210SEBA | 16.666600MHz | 2.50x2.00x0.90mm | CMOS | 1.600 to 2.200V | -40 to 105°C |
| X1G004611A04200 | SG-210SEBA | 33.300000MHz | 2.50x2.00x0.90mm | CMOS | 1.600 to 2.200V | -40 to 105°C |
| X1G004611A04300 | SG-210SEBA | 25.000000MHz | 2.50x2.00x0.90mm | CMOS | 1.600 to 2.200V | -40 to 85°C |
| X1G004611A04400 | SG-210SEBA | 33.000000MHz | 2.50x2.00x0.90mm | CMOS | 1.600 to 2.200V | -40 to 105°C |
| X1G004611A04500 | SG-210SEBA | 49.500000MHz | 2.50x2.00x0.90mm | CMOS | 1.600 to 2.200V | -40 to 105°C |
針對各種車載電子設備對石英晶振在高溫、抗振動等方面的更高要求，愛普生可以提供全面的符合AEC-Q200/100技術標準的汽車用車規晶振。
汽車的應用場景包括導航、遠程呼叫、緊急救援、防盜跟蹤、道路救援、電話、資訊娛樂、下載應用，自動駕駛等等，為了實現人與汽車系統自由的交互，并提供實時的信息互動、支付、交通、天氣等功能，汽車對車規級晶振的依賴只會越來越強。
