TG-5006CJ超小型晶振2016mm溫補晶體振蕩器

來源：http://www.lnjyxx.com 作者：億金電子 2022年08月25

溫補晶振即溫度補償晶體振蕩器（TCXO），本身具有溫度補償作用，是通過附加的溫度補償電路使由周圍溫度變化產生的振蕩頻率變化量削減的一種石英晶體振蕩器，高低溫度穩定性:頻率精度0.5PPM~2.0PPM,常用頻率:26M,33.6M,38.4M,40M.因產品性能穩定,精度高等優勢,被廣泛應用到一些比較高端的數碼通訊產品領域,GPS全球定位系統,智能手機,WiMAX和無線通信等產品,符合RoHS/無鉛.

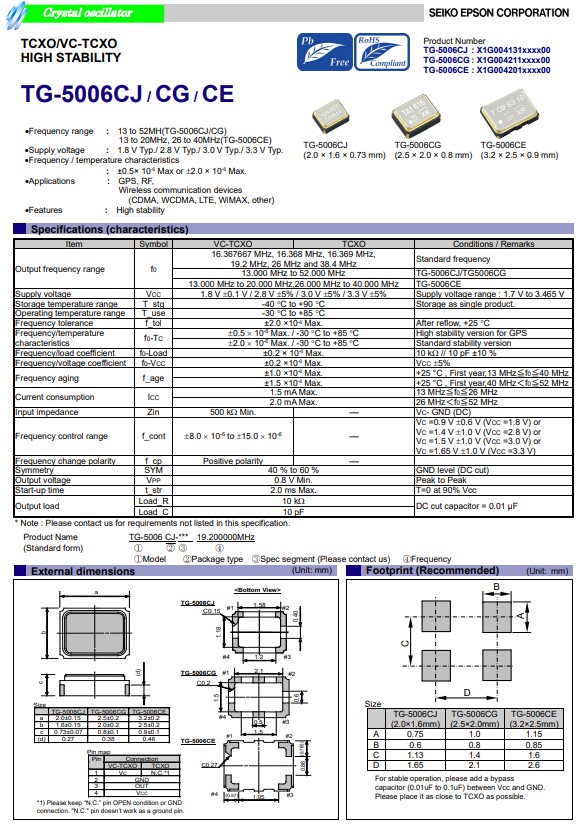

日本進口愛普生晶振TG-5006CJ，是一款TCXO溫補晶體振蕩器，超小型體積尺寸2.0x1.6mm，四腳貼片晶振，有源晶振，頻率范圍13MHz至52MHz，電源電壓1.8V至3.3V，具有超小型，輕薄型，低抖動，低耗能，低損耗，低功耗，低電平等特點，被廣泛用于各種電子產品領域中。
TG-5006CJ超小型晶振2016mm溫補晶體振蕩器,X1G004131001100,石英晶體振蕩器

Product Number	Model	Frequency	愛普生晶振	Output Wave	Supply Voltage
X1G004131000400	TG-5006CJ	26.000000 MHz	2.00 x 1.60 x 0.73 mm	Clipped sine wave	1.700 to 1.900 V
X1G004131000600	TG-5006CJ	16.367667 MHz	2.00 x 1.60 x 0.73 mm	Clipped sine wave	2.850 to 3.150 V
X1G004131000700	TG-5006CJ	16.368000 MHz	2.00 x 1.60 x 0.73 mm	Clipped sine wave	2.850 to 3.150 V
X1G004131000800	TG-5006CJ	16.369000 MHz	2.00 x 1.60 x 0.73 mm	Clipped sine wave	2.850 to 3.150 V
X1G004131000900	TG-5006CJ	19.200000 MHz	2.00 x 1.60 x 0.73 mm	Clipped sine wave	2.850 to 3.150 V
X1G004131001000	TG-5006CJ	26.000000 MHz	2.00 x 1.60 x 0.73 mm	Clipped sine wave	2.850 to 3.150 V
X1G004131001100	TG-5006CJ	38.400000 MHz	2.00 x 1.60 x 0.73 mm	Clipped sine wave	2.850 to 3.150 V
X1G004131001300	TG-5006CJ	16.367667 MHz	2.00 x 1.60 x 0.73 mm	Clipped sine wave	2.850 to 3.150 V
X1G004131001400	TG-5006CJ	16.368000 MHz	2.00 x 1.60 x 0.73 mm	Clipped sine wave	2.850 to 3.150 V
X1G004131001500	TG-5006CJ	16.369000 MHz	2.00 x 1.60 x 0.73 mm	Clipped sine wave	2.850 to 3.150 V
X1G004131001600	TG-5006CJ	19.200000 MHz	2.00 x 1.60 x 0.73 mm	Clipped sine wave	2.850 to 3.150 V

X1G004131001700	TG-5006CJ	26.000000 MHz	2.00 x 1.60 x 0.73 mm	Clipped sine wave	2.850 to 3.150 V
X1G004131001800	TG-5006CJ	38.400000 MHz	2.00 x 1.60 x 0.73 mm	Clipped sine wave	1.700 to 3.300 V
X1G004131002600	TG-5006CJ	40.000000 MHz	2.00 x 1.60 x 0.73 mm	Clipped sine wave	2.850 to 3.150 V
X1G004131002900	TG-5006CJ	19.200000 MHz	2.00 x 1.60 x 0.73 mm	Clipped sine wave	2.600 to 3.000 V
X1G004131003100	TG-5006CJ	40.000000 MHz	2.00 x 1.60 x 0.73 mm	Clipped sine wave	2.850 to 3.150 V
X1G004131003200	TG-5006CJ	26.635300 MHz	2.00 x 1.60 x 0.73 mm	Clipped sine wave	2.700 to 3.465 V
X1G004131003300	TG-5006CJ	28.974000 MHz	2.00 x 1.60 x 0.73 mm	Clipped sine wave	2.700 to 3.465 V
X1G004131003400	TG-5006CJ	26.000000 MHz	2.00 x 1.60 x 0.73 mm	Clipped sine wave	1.700 to 1.900 V
X1G004131003600	TG-5006CJ	26.000000 MHz	2.00 x 1.60 x 0.73 mm	Clipped sine wave	2.660 to 2.940 V
X1G004131003700	TG-5006CJ	19.200000 MHz	2.00 x 1.60 x 0.73 mm	Clipped sine wave	2.660 to 2.940 V
X1G004131003800	TG-5006CJ	26.000000 MHz	2.00 x 1.60 x 0.73 mm	Clipped sine wave	1.700 to 1.900 V
X1G004131004100	TG-5006CJ	40.000000 MHz	2.00 x 1.60 x 0.73 mm	Clipped sine wave	2.850 to 3.150 V
X1G004131004200	TG-5006CJ	32.000000 MHz	2.00 x 1.60 x 0.73 mm	Clipped sine wave	2.850 to 3.150 V
X1G004131004400	TG-5006CJ	24.576000 MHz	2.00 x 1.60 x 0.73 mm	Clipped sine wave	3.135 to 3.465 V
X1G004131004900	TG-5006CJ	26.000000 MHz	2.00 x 1.60 x 0.73 mm	Clipped sine wave	1.700 to 1.900 V

TG-5006CJ超小型晶振2016mm溫補晶體振蕩器,X1G004131001100,石英晶體振蕩器
2016mm體積的晶振,可以說是目前小型數碼產品的福音,目前超小型的智能手機里面所應用的就是小型的石英晶振,該產品最適用于無線通訊系統,無線局域網,已實現低相位噪聲,低電壓,低消費電流和高穩定度,超小型,質量輕等產品特點,產品本身編帶包裝方式,可對應自動高速貼片機應用,以及高溫回流焊接（產品無鉛對應）,為無鉛產品.
