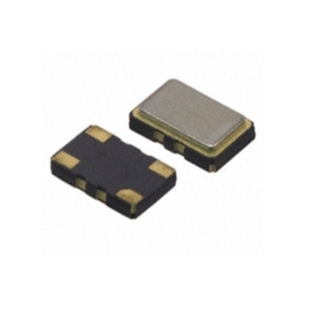

FT5HNBPK14.7456-T1,Fox福克斯晶振,5032有源溫補晶振
- 頻率：14.7456 MHz
- 尺寸：5.00mm x 3.20mm
- 應 用： FT5HNBPK14.7456-T1,Fox福克斯晶振,5032有源溫補晶振,憑借14.7456MHz標準頻率,有源溫補特性及5032封裝,成為多領域高精度時鐘需求的優選,符合全球高精度電子設備的法規要求是一款跨高精度場景的通用型晶振.
-
.png)
.png)
FT5HNBPK14.7456-T1,Fox福克斯晶振,5032有源溫補晶振
FT5HNBPK14.7456-T1是Fox福克斯品牌推出的高精度有源溫補晶振,采用行業通用的5032有源晶振封裝(5.0mm×3.2mm),兼顧空間兼容性與安裝便利性,可輕松適配工業控制,通信設備等對時鐘精度要求高的PCB布局.其核心輸出頻率精準鎖定為14.7456MHz,該頻率是串口通信,數據采集等場景的標準時鐘頻率,能穩定支撐設備基礎時序控制.作為有源溫補晶振,它內置溫度補償電路與振蕩模塊,無需外部匹配元件,上電即可輸出穩定信號,同時通過溫補技術大幅降低溫度對頻率的影響,解決普通晶振在溫度波動下的精度偏差問題,為高精度場景提供可靠時鐘保障.
.png)
.png)

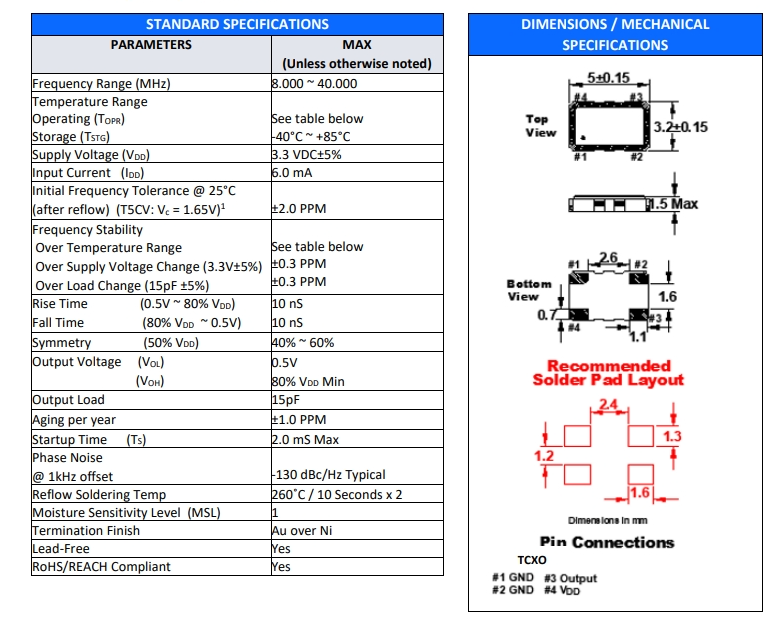

FT5HNBPK14.7456-T1,Fox福克斯晶振,5032有源溫補晶振
| 原廠型號 Originalmodel： | FT5HNBPK14.7456-T1 | 品牌brand： | Fox Electronics |
| Manufacturer品牌 | Fox Electronics | OperatingTemperature溫度 | -30°C ~ 85°C |
| Series型號 | FOX924平板電腦晶振 | Current-Supply(Max) | 6mA |
| Type類型 | TCXO | PackageHeight高度 | 1.50mm |
| Frequency頻率 | 14.7456 MHz | Termination 腳位 | 4 pad |
| 輸出方式 Output： | HCMOS | PackageType 封裝類型 | 4-SMD |
| Voltage-Supply電壓 | 3.3V | Packaging 包裝 | TapeandReel |
| FrequencyStability頻率穩定度 | ±2.5ppm | 安裝方式 Installation： | Surfacemount |
| Size/Dimension尺寸 | 5.00mm x 3.20mm | 最小包裝數MPQ： | 1000 |
.png)
.png)
FT5HNBPK14.7456-T1,Fox福克斯晶振,5032有源溫補晶振
FT5HNBPK14.7456-T1,Fox福克斯晶振,5032有源溫補晶振
| FO7HSCBE25.0-T1 | Fox Electronics | F4105 | XO (Standard) | 25 MHz | HCMOS | 3.3V | ±50ppm |
| FT5HNBPK25.0-T1 | Fox Electronics | FOX924 | TCXO | 25 MHz | HCMOS | 3.3V | ±2.5ppm |
| FT5HNBPK10.0-T1 | Fox Electronics | FOX924 | TCXO | 10 MHz | HCMOS | 3.3V | ±2.5ppm |
| FT5HNBPK12.0-T1 | Fox Electronics | FOX924 | TCXO | 12 MHz | HCMOS | 3.3V | ±2.5ppm |
| FT5HNBPK12.288-T1 | Fox Electronics | FOX924 | TCXO | 12.288 MHz | HCMOS | 3.3V | ±2.5ppm |
| FT5HNBPK14.7456-T1 | Fox Electronics | FOX924 | TCXO | 14.7456 MHz | HCMOS | 3.3V | ±2.5ppm |
| FT5HNBPK20.0-T1 | Fox Electronics | FOX924 | TCXO | 20 MHz | HCMOS | 3.3V | ±2.5ppm |
| FT5HNBPK27.0-T1 | Fox Electronics | FOX924 | TCXO | 27 MHz | HCMOS | 3.3V | ±2.5ppm |
| FT9CVDPH20.0-T1 | Fox Electronics | FOX801_E | VCTCXO | 20 MHz | Clipped Sine Wave | 3V | ±2.5ppm |
| FO3HSKDM24.0-T2 | Fox Electronics | F310R | XO (Standard) | 24 MHz | HCMOS | 1.8V | ±25ppm |
| FO3HSKDM33.333-T2 | Fox Electronics | F310R | XO (Standard) | 33.333 MHz | HCMOS | 1.8V | ±25ppm |
| FO7HSCAE50.0-T1 | Fox Electronics | F4100 | XO (Standard) | 50 MHz | HCMOS | 3.3V | ±100ppm |
| FT5CNDPK12.8-T1 | Fox Electronics | FOX914 | TCXO | 12.8 MHz | Clipped Sine Wave | 3V | ±2.5ppm |
| FT5HNBPK16.0-T1 | Fox Electronics | FOX924 | TCXO | 16 MHz | HCMOS | 3.3V | ±2.5ppm |
| FO3HSCBE40.0-T2 | Fox Electronics | F335 | XO (Standard) | 40 MHz | HCMOS | 3.3V | ±50ppm |
| FO5HSCBE33.333-T1 | Fox Electronics | F535L | XO (Standard) | 33.333 MHz | HCMOS | 3.3V | ±50ppm |
| FO7HSCAE20.0-T1 | Fox Electronics | O7HS | XO (Standard) | 20 MHz | HCMOS | 3.3V | ±100ppm |
| FT3HNBPK12.0-T1 | Fox Electronics | T3HN | TCXO | 12 MHz | HCMOS | 3.3V | ±2.5ppm |
| FT3HNBPK27.0-T1 | Fox Electronics | T3HN | TCXO | 27 MHz | HCMOS | 3.3V | ±2.5ppm |
| FO3HFCYM0.032768-T3 | Fox Electronics | F32K | XO (Standard) | 32.768 kHz | HCMOS | 3.3V | -170ppm, +10ppm |
| FO5HSCBE25.0-T1 | Fox Electronics | F535L | XO (Standard) | 25 MHz | HCMOS | 3.3V | ±50ppm |
| FO7HSCAE1.8432-T1 | Fox Electronics | O7HS | XO (Standard) | 1.8432 MHz | HCMOS | 3.3V | ±100ppm |
| FO7HSCBE50.0-T1 | Fox Electronics | O7HS | XO (Standard) | 50 MHz | HCMOS | 3.3V | ±50ppm |
| FO7HSCAE25.0-T1 | Fox Electronics | O7HS | XO (Standard) | 25 MHz | HCMOS | 3.3V | ±100ppm |
| FO7HSCBM50.0-T1 | Fox Electronics | FO7HS | XO (Standard) | 50 MHz | HCMOS | 3.3V | ±50ppm |
| FO7HSCAE48.0-T1 | Fox Electronics | FO7HS | XO (Standard) | 48 MHz | HCMOS | 3.3V | ±100ppm |
| FO7HHAAE1.8432-T1 | Fox Electronics | O7HH | XO (Standard) | 1.8432 MHz | HCMOS | 5V | ±100ppm |
| FO7HHAAE32.0-T1 | Fox Electronics | O7HH | XO (Standard) | 32 MHz | HCMOS | 5V | ±100ppm |
| FO7HHAAE50.0-T1 | Fox Electronics | O7HH | XO (Standard) | 50 MHz | HCMOS | 5V | ±100ppm |
| FO7HHAAE40.0-T1 | Fox Electronics | O7HH | XO (Standard) | 40 MHz | HCMOS | 5V | ±100ppm |
| FT1MNTUM-38.4-T1 | Fox Electronics | FT1MN | TCXO | 38.4 MHz | Clipped Sine Wave | 1.68V ~ 3.63V | ±500ppb |
| FT3MNTUM-26.0-T1 | Fox Electronics | FT3MN | TCXO | 26 MHz | Clipped Sine Wave | 1.68V ~ 3.63V | ±500ppb |
| FT1MNTUM-26.0-T1 | Fox Electronics | FT1MN | TCXO | 26 MHz | Clipped Sine Wave | 1.68V ~ 3.63V | ±500ppb |
| FT2MNTUM-32.0-T1 | Fox Electronics | FT2MN | TCXO | 32 MHz | Clipped Sine Wave | 1.68V ~ 3.63V | ±500ppb |
| FT2MNTUM-30.0-T1 | Fox Electronics | FT2MN | TCXO | 30 MHz | Clipped Sine Wave | 1.68V ~ 3.63V | ±500ppb |
| FO3HSCBE50.0-T1 | Fox Electronics | F335 | XO (Standard) | 50 MHz | HCMOS | 3.3V | ±50ppm |
| FO7HSCAE3.6864-T1 | Fox Electronics | * | - | - | - | - | - |
| FO5HSCBE24.0-T1 | Fox Electronics | F535L | XO (Standard) | 24 MHz | HCMOS | 3.3V | ±50ppm |
| FO7HSCBE20.0-T2 | Fox Electronics | * | - | - | - | - | - |
| FT3HNBPK25.0-T1 | Fox Electronics | T3HN | TCXO | 25 MHz | HCMOS | 3.3V | ±2.5ppm |
| FO7HSCAE40.0-T1 | Fox Electronics | F4100 | XO (Standard) | 40 MHz | HCMOS | 3.3V | ±100ppm |
| FT3HNBPK16.0-T1 | Fox Electronics | T3HN | TCXO | 16 MHz | HCMOS | 3.3V | ±2.5ppm |
| FO7HSCBE20.0-T1 | Fox Electronics | O7HS | XO (Standard) | 20 MHz | HCMOS | 3.3V | ±50ppm |
| FT3HNBPK10.0-T1 | Fox Electronics | T3HN | TCXO | 10 MHz | HCMOS | 3.3V | ±2.5ppm |
| FO7HHAAE50.0-T2 | Fox Electronics | * | - | - | - | - | - |
| FO7HHAAE16.0-T1 | Fox Electronics | F3345 | XO (Standard) | 16 MHz | HCMOS | 5V | ±100ppm |
| FO7HSCDE48.0-T1 | Fox Electronics | O7HS | XO (Standard) | 48 MHz | HCMOS | 3.3V | ±25ppm |
| FT5CNDPK20.0-T1 | Fox Electronics | FOX914 | TCXO | 20 MHz | Clipped Sine Wave | 3V | ±2.5ppm |
| FT3MNTUM-32.0-T1 | Fox Electronics | FT3MN | TCXO | 32 MHz | Clipped Sine Wave | 1.68V ~ 3.63V | ±500ppb |
| FT5HNBPK19.44-T1 | Fox Electronics | FOX924 | TCXO | 19.44 MHz | HCMOS | 3.3V | ±2.5ppm |
| FT2MNTUM-40.0-T1 | Fox Electronics | FT2MN | TCXO | 40 MHz | Clipped Sine Wave | 1.68V ~ 3.63V | ±500ppb |
| FT9CVDPH10.0-T1 | Fox Electronics | FOX801_E | VCTCXO | 10 MHz | Clipped Sine Wave | 3V | ±2.5ppm |
| FO2HSKBM25.0-T1 | Fox Electronics | FO2HS | XO (Standard) | 25 MHz | HCMOS | 1.8V | ±50ppm |
| FO3HSCBE12.0-T1 | Fox Electronics | F335 | XO (Standard) | 12 MHz | HCMOS | 3.3V | ±50ppm |
| FO3HSCBE25.0-T1 | Fox Electronics | F335 | XO (Standard) | 25 MHz | HCMOS | 3.3V | ±50ppm |
| FO5HSCBE10.0-T1 | Fox Electronics | F535L | XO (Standard) | 10 MHz | HCMOS | 3.3V | ±50ppm |
| FO5HSCBE16.0-T1 | Fox Electronics | F535L | XO (Standard) | 16 MHz | HCMOS | 3.3V | ±50ppm |
| FO5HSCBE48.0-T1 | Fox Electronics | F535L | XO (Standard) | 48 MHz | HCMOS | 3.3V | ±50ppm |
| FO5HSCBE50.0-T1 | Fox Electronics | F535L | XO (Standard) | 50 MHz | HCMOS | 3.3V | ±50ppm |
| FO7HSCAE10.0-T1 | Fox Electronics | F4100 | XO (Standard) | 10 MHz | HCMOS | 3.3V | ±100ppm |
