有源晶振X1G005961000715專用于道路交通燈控制器

來源：http://www.lnjyxx.com 作者：億金電子 2022年10月17

愛普生晶振公司1942年成立以來一直活躍在晶振領域,注重自主品牌的建設,掌握自主研制,定制,實現全套的晶振工藝技術流程,擁有石英晶體振蕩器技術的自主技術專利和產品線,能夠?yàn)榭蛻籼峁┤珖a(chǎn)化晶振解決方案。

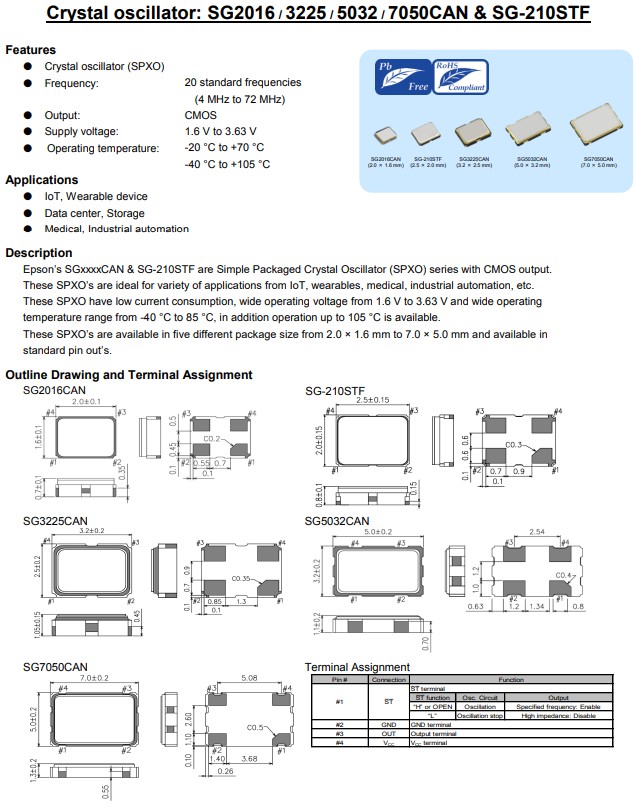

日本愛普生晶振SG3225CAN是一款支持CMOS輸出石英晶體振蕩器(SPXO)系列，小體積晶振尺寸3.2x2.5mm有源晶振，四腳貼片晶振，具有超小型，輕薄型，低功耗，低電流消耗特點，1.6V至3.63V的寬工作電壓和寬工作溫度范圍從-40℃到+105℃，這些SPXO提供從2.0x1.6mm到7.0x5.0mm的五種不同封裝尺寸，并提供標準引腳排列。非常適合物聯網、藍牙模塊，便捷式設備，可穿戴設備、醫療、工業自動化等各種應用。
有源晶振X1G005961000715專用于道路交通燈控制器,X1G005961002715,石英晶體振蕩器

愛普生晶振	型號	頻率	尺寸	輸出波	電源電壓	工作溫度
X1G005961000115	SG3225CAN	24.000000MHz	3.20x2.50x1.05mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005961000215	SG3225CAN	25.000000MHz	3.20x2.50x1.05mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005961000315	SG3225CAN	48.000000MHz	3.20x2.50x1.05mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005961000415	SG3225CAN	8.000000MHz	3.20x2.50x1.05mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005961000515	SG3225CAN	10.000000MHz	3.20x2.50x1.05mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005961000615	SG3225CAN	12.000000MHz	3.20x2.50x1.05mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005961000715	SG3225CAN	20.000000MHz	3.20x2.50x1.05mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005961000815	SG3225CAN	24.576000MHz	3.20x2.50x1.05mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005961000915	SG3225CAN	40.000000MHz	3.20x2.50x1.05mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005961001015	SG3225CAN	50.000000MHz	3.20x2.50x1.05mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005961001115	SG3225CAN	4.000000MHz	3.20x2.50x1.05mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005961001215	SG3225CAN	4.000000MHz	3.20x2.50x1.05mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005961001315	SG3225CAN	8.000000MHz	3.20x2.50x1.05mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005961001415	SG3225CAN	10.000000MHz	3.20x2.50x1.05mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005961001515	SG3225CAN	12.000000MHz	3.20x2.50x1.05mm	CMOS	1.620 to 3.630 V	-20 to 70 °C
X1G005961001615	SG3225CAN	12.000000MHz	3.20x2.50x1.05mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005961001715	SG3225CAN	12.288000MHz	3.20x2.50x1.05mm	CMOS	1.620 to 3.630 V	-20 to 70 °C
X1G005961001815	SG3225CAN	12.288000MHz	3.20x2.50x1.05mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005961001915	SG3225CAN	12.288000MHz	3.20x2.50x1.05mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005961002015	SG3225CAN	14.745600MHz	3.20x2.50x1.05mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005961002115	SG3225CAN	14.745600MHz	3.20x2.50x1.05mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005961002215	SG3225CAN	16.000000MHz	3.20x2.50x1.05mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005961002315	SG3225CAN	16.000000MHz	3.20x2.50x1.05mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005961002415	SG3225CAN	20.000000MHz	3.20x2.50x1.05mm	CMOS	1.620 to 3.630 V	-20 to 70 °C

X1G005961002515	SG3225CAN	20.000000MHz	3.20x2.50x1.05mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005961002615	SG3225CAN	24.000000MHz	3.20x2.50x1.05mm	CMOS	1.620 to 3.630 V	-20 to 70 °C
X1G005961002715	SG3225CAN	24.000000MHz	3.20x2.50x1.05mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005961002815	SG3225CAN	24.576000MHz	3.20x2.50x1.05mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005961002915	SG3225CAN	25.000000MHz	3.20x2.50x1.05mm	CMOS	1.620 to 3.630 V	-20 to 70 °C
X1G005961003015	SG3225CAN	25.000000MHz	3.20x2.50x1.05mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005961003115	SG3225CAN	26.000000MHz	3.20x2.50x1.05mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005961003215	SG3225CAN	26.000000MHz	3.20x2.50x1.05mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005961003315	SG3225CAN	27.000000MHz	3.20x2.50x1.05mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005961003415	SG3225CAN	27.000000MHz	3.20x2.50x1.05mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005961003515	SG3225CAN	32.000000MHz	3.20x2.50x1.05mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005961003615	SG3225CAN	32.000000MHz	3.20x2.50x1.05mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005961003715	SG3225CAN	33.330000MHz	3.20x2.50x1.05mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005961003815	SG3225CAN	33.330000MHz	3.20x2.50x1.05mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005961003915	SG3225CAN	33.333300MHz	3.20x2.50x1.05mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005961004015	SG3225CAN	33.333300MHz	3.20x2.50x1.05mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005961004115	SG3225CAN	40.000000MHz	3.20x2.50x1.05mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005961004215	SG3225CAN	48.000000MHz	3.20x2.50x1.05mm	CMOS	1.620 to 3.630 V	-20 to 70 °C
X1G005961004315	SG3225CAN	48.000000MHz	3.20x2.50x1.05mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005961004415	SG3225CAN	50.000000MHz	3.20x2.50x1.05mm	CMOS	1.620 to 3.630 V	-20 to 70 °C
X1G005961004515	SG3225CAN	50.000000MHz	3.20x2.50x1.05mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005961004615	SG3225CAN	72.000000MHz	3.20x2.50x1.05mm	CMOS	1.710 to 3.630 V	-20 to 70 °C
X1G005961004715	SG3225CAN	72.000000MHz	3.20x2.50x1.05mm	CMOS	1.710 to 3.630 V	-40 to 85 °C
X1G005961004815	SG3225CAN	72.000000MHz	3.20x2.50x1.05mm	CMOS	2.250 to 3.630 V	-40 to 105 °C

有源晶振X1G005961000715專用于道路交通燈控制器,X1G005961002715,石英晶體振蕩器

石英晶體振蕩器優點：

1、石英鐘走時準、耗電省、經久耐用為其最大優點。不論是老式石英鐘或是新式多功能石英鐘都是以石英晶體振蕩器為核心電路，其頻率精度決定了電子鐘表的走時精度。

2、隨著電視技術的發展，近來彩電多采用500kHz或503kHz的晶體振蕩器作為行、場電路的振蕩源，經1/3的分頻得到15625Hz的行頻，其穩定性和可靠性大為提高。而且晶振價格便宜，更換容易。

3、在通信系統產品中，石英晶體振蕩器的價值得到了更廣泛的體現，同時也得到了更快的發展。許多高性能的石英晶振主要應用于通信網絡、無線數據傳輸、高速數字?jǐn)?shù)據傳輸?shù)取?/span>
