SG3225VAN差分晶振X1G004241002600適用于工業自動化控制系統
來源：http://www.lnjyxx.com 作者：億金電子 2022年10月14
近年來，對小型化、多功能網絡設備的需求不斷增加，愛普生推出SG3225VAN晶振是一款小體積尺寸3.2x2.5mm晶體振蕩器，差分晶振，電源電壓為2.5V至3.3V，輸出頻率73.5MHz至700MHz，具有低電源電壓，低功耗，低抖動，低耗能，低損耗，小型化，高穩定性等優點，在手持攜帶設備、可穿戴式設備以及物聯網等網絡設備中具有廣闊的市場前景，可有效延長設備使用壽命、縮短產品開發周期。目前市場主流差分晶振都是6腳貼片晶振封裝，頻率比普通晶振相比較高，常用的頻率有:74.25MHz,100MHz,125MHz,148.5MHz,150MHz,200MHz等。適用于10GbE、40GbE、100GbE超寬頻以太網絡，醫療、測試測量、消費電子、工業自動化等領域。

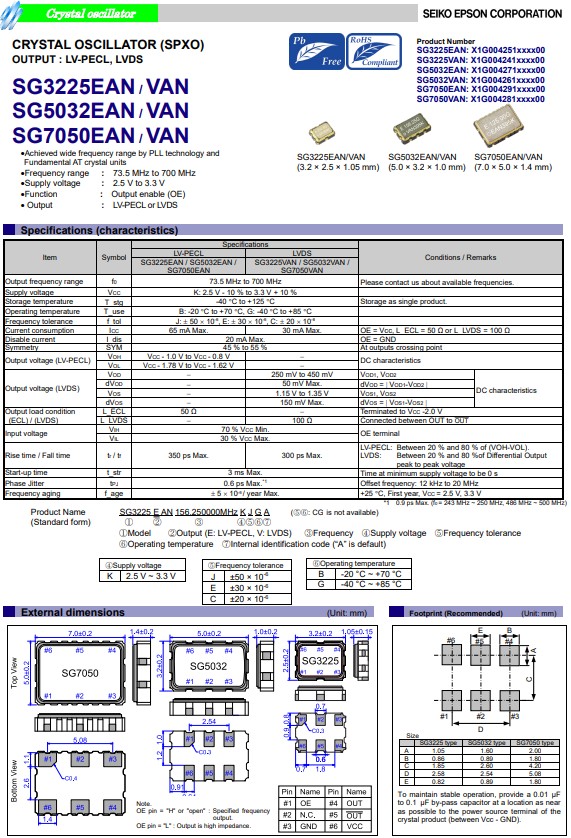

SG3225VAN差分晶振X1G004241002600適用于工業自動化控制系統,X1G004241001000,低耗能晶振
.JPG)
SG3225VAN差分晶振X1G004241002600適用于工業自動化控制系統,X1G004241001000,低耗能晶振
愛普生SG3225VAN晶振結合低抖動PLL技術和內置AT晶體單元，可產生穩定的輸出信號；頻率偏移誤差*低±20ppm，*大相位抖動不超過0.6ps，非常適合對時鐘信號完整性有嚴格要求的系統。考慮元件老化的影響，其頻率老化率僅為±5ppm/年，大大提高了元件的使用壽命。SG3225VAN石英晶體振蕩器支持LVDS標準差分信號，增強了輸出信號的抗干擾能力，可作為標準模塊在電路中直接應用。
SG3225VAN差分晶振X1G004241002600適用于工業自動化控制系統,X1G004241001000,低耗能晶振
| 產品編碼 |
   型號 |
   頻率 |
   石英晶振 |
   輸出波 |
   電源電壓 |
   工作溫度 |
| X1G004241000100 | SG3225VAN | 125.000000MHz | 3.20x2.50x1.20mm | LVDS | 2.250 to 3.630V | -40 to 85°C |
| X1G004241000400 | SG3225VAN | 100.000000MHz | 3.20x2.50x1.20mm | LVDS | 2.250 to 3.630V | -40 to 85°C |
| X1G004241000500 | SG3225VAN | 200.000000MHz | 3.20x2.50x1.20mm | LVDS | 2.250 to 3.630V | -40 to 85°C |
| X1G004241000600 | SG3225VAN | 400.000000MHz | 3.20x2.50x1.20mm | LVDS | 2.250 to 3.630V | -40 to 85°C |
| X1G004241000800 | SG3225VAN | 212.500000MHz | 3.20x2.50x1.20mm | LVDS | 2.250 to 3.630V | -40 to 85°C |
| X1G004241001000 | SG3225VAN | 148.500000MHz | 3.20x2.50x1.20mm | LVDS | 2.250 to 3.630V | -40 to 85°C |
| X1G004241001200 | SG3225VAN | 150.000000MHz | 3.20x2.50x1.20mm | LVDS | 2.250 to 3.630V | -40 to 85°C |
| X1G004241001400 | SG3225VAN | 156.250000MHz | 3.20x2.50x1.20mm | LVDS | 2.250 to 3.630V | -40 to 85°C |
| X1G004241002000 | SG3225VAN | 125.000000MHz | 3.20x2.50x1.20mm | LVDS | 2.250 to 3.630V | -40 to 85°C |
| X1G004241002300 | SG3225VAN | 100.000000MHz | 3.20x2.50x1.20mm | LVDS | 2.250 to 3.630V | -40 to 85°C |
| X1G004241002400 | SG3225VAN | 200.000000MHz | 3.20x2.50x1.20mm | LVDS | 2.250 to 3.630V | -40 to 85°C |
| X1G004241002500 | SG3225VAN | 400.000000MHz | 3.20x2.50x1.20mm | LVDS | 2.250 to 3.630V | -40 to 85°C |
| X1G004241002600 | SG3225VAN | 106.250000MHz | 3.20x2.50x1.20mm | LVDS | 2.250 to 3.630V | -40 to 85°C |
| X1G004241002800 | SG3225VAN | 74.250000MHz | 3.20x2.50x1.20mm | LVDS | 2.250 to 3.630V | -40 to 85°C |
| X1G004241002900 | SG3225VAN | 148.500000MHz | 3.20x2.50x1.20mm | LVDS | 2.250 to 3.630V | -40 to 85°C |
| X1G004241003100 | SG3225VAN | 150.000000MHz | 3.20x2.50x1.20mm | LVDS | 2.250 to 3.630V | -40 to 85°C |
| X1G004241003200 | SG3225VAN | 155.520000MHz | 3.20x2.50x1.20mm | LVDS | 2.250 to 3.630V | -40 to 85°C |
| X1G004241003300 | SG3225VAN | 156.250000MHz | 3.20x2.50x1.20mm | LVDS | 2.250 to 3.630V | -40 to 85°C |
| X1G004241003400 | SG3225VAN | 312.500000MHz | 3.20x2.50x1.20mm | LVDS | 2.250 to 3.630V | -40 to 85°C |
| X1G004241003900 | SG3225VAN | 125.000000MHz | 3.20x2.50x1.20mm | LVDS | 2.250 to 3.630V | -20 to 70°C |
| X1G004241004200 | SG3225VAN | 100.000000MHz | 3.20x2.50x1.20mm | LVDS | 2.250 to 3.630V | -20 to 70°C |
| X1G004241005200 | SG3225VAN | 156.250000MHz | 3.20x2.50x1.20mm | LVDS | 2.250 to 3.630V | -20 to 70°C |
| X1G004241006100 | SG3225VAN | 100.000000MHz | 3.20x2.50x1.20mm | LVDS | 2.250 to 3.630V | -20 to 70°C |
| X1G004241006200 | SG3225VAN | 200.000000MHz | 3.20x2.50x1.20mm | LVDS | 2.250 to 3.630V | -20 to 70°C |
| X1G004241006500 | SG3225VAN | 212.500000MHz | 3.20x2.50x1.20mm | LVDS | 2.250 to 3.630V | -20 to 70°C |
| X1G004241006900 | SG3225VAN | 150.000000MHz | 3.20x2.50x1.20mm | LVDS | 2.250 to 3.630V | -20 to 70°C |
| X1G004241007100 | SG3225VAN | 156.250000MHz | 3.20x2.50x1.20mm | LVDS | 2.250 to 3.630V | -20 to 70°C |
| X1G004241010000 | SG3225VAN | 133.333333MHz | 3.20x2.50x1.20mm | LVDS | 2.250 to 3.630V | -20 to 70°C |
| X1G004241010300 | SG3225VAN | 250.000000MHz | 3.20x2.50x1.20mm | LVDS | 2.250 to 3.630V | -40 to 85°C |
| X1G004241010500 | SG3225VAN | 80.000000MHz | 3.20x2.50x1.20mm | LVDS | 2.250 to 3.630V | -40 to 85°C |
| X1G004241010800 | SG3225VAN | 297.000000MHz | 3.20x2.50x1.20mm | LVDS | 2.250 to 3.630V | -40 to 85°C |
| X1G004241010900 | SG3225VAN | 133.330000MHz | 3.20x2.50x1.20mm | LVDS | 2.250 to 3.630V | -40 to 85°C |
| X1G004241011300 | SG3225VAN | 125.003125MHz | 3.20x2.50x1.20mm | LVDS | 2.250 to 3.630V | -40 to 85°C |
| X1G004241011700 | SG3225VAN | 126.000000MHz | 3.20x2.50x1.20mm | LVDS | 2.250 to 3.630V | -40 to 85°C |
| X1G004241012000 | SG3225VAN | 322.265625MHz | 3.20x2.50x1.20mm | LVDS | 2.250 to 3.630V | -40 to 85°C |
| X1G004241012300 | SG3225VAN | 90.000000MHz | 3.20x2.50x1.20mm | LVDS | 2.250 to 3.630V | -20 to 70°C |
| X1G004241012400 | SG3225VAN | 135.000000MHz | 3.20x2.50x1.20mm | LVDS | 2.250 to 3.630V | -40 to 85°C |
| X1G004241012500 | SG3225VAN | 76.000000MHz | 3.20x2.50x1.20mm | LVDS | 2.250 to 3.630V | -40 to 85°C |
| X1G004241012600 | SG3225VAN | 360.000000MHz | 3.20x2.50x1.20mm | LVDS | 2.250 to 3.630V | -40 to 85°C |
| X1G004241012700 | SG3225VAN | 644.531250MHz | 3.20x2.50x1.20mm | LVDS | 2.250 to 3.630V | -20 to 70°C |
| X1G004241012900 | SG3225VAN | 322.265625MHz | 3.20x2.50x1.20mm | LVDS | 2.250 to 3.630V | -20 to 70°C |
| X1G004241013000 | SG3225VAN | 115.200000MHz | 3.20x2.50x1.20mm | LVDS | 2.250 to 3.630V | -40 to 85°C |
愛普生SG3225VAN晶振結合低抖動PLL技術和內置AT晶體單元，可產生穩定的輸出信號；頻率偏移誤差*低±20ppm，*大相位抖動不超過0.6ps，非常適合對時鐘信號完整性有嚴格要求的系統。考慮元件老化的影響，其頻率老化率僅為±5ppm/年，大大提高了元件的使用壽命。SG3225VAN石英晶體振蕩器支持LVDS標準差分信號，增強了輸出信號的抗干擾能力，可作為標準模塊在電路中直接應用。
